GW-7552 ~ NEW ~
PROFIBUS/Modbus Gateway

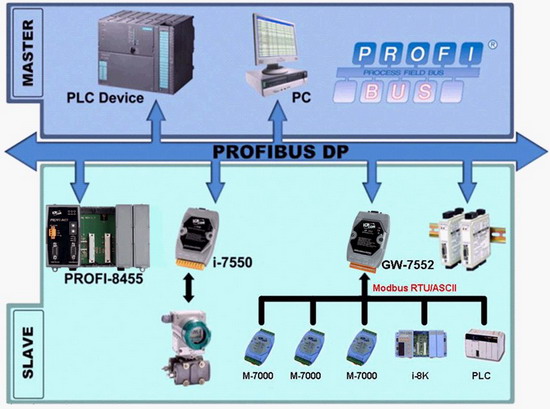

The GW-7552 Gateway is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the Modbus devices. These Modbus devices may be a PLC, a sensor, ICPDAS M-7000 series modules and so forth. In addition, we also provide the utility software for users to configure the GW-7552. By using this module, users can put their Modbus devices into PROFIBUS network very easily.




  Applications



  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…




  Features



Protocol & Hierarchy
DP-V0 Slave
Supports PROFIBUS Transmission Rate (Kbps)
9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
Transmission Rate Setting
detected automatically
Max Input Data Length
128 Bytes
Max Output Data Length
130 Bytes
Address Setting
0~126 set by DIP switch
Supports Modbus Mode
Master/Slave
Supports Modbus Format
RTU/ASCII
Hybrid COM 1
RS-232/422/485 with “Self Tuner” inside
Supports COM 1 Baudrate (Kbps)
2.4, 4.8, 9.6, 19.2, 38.4, 57.6, 115.2
Supports COM 1 Data Format
7/8 data bits, No/Odd/Even parity, 1/2 stop bit
Indicators
PWR, ERR, and RUN LEDs
Network Isolation Protection
High Speed iCoupler
DC Isolation Protection
3000VDC on PROFIBUS side

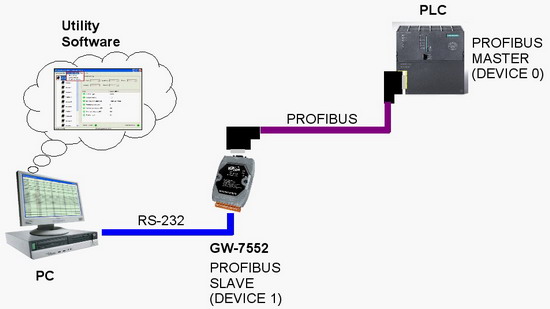

  GW-7552 Utility




The GW-7552 Utility helps users to configure the devices, and has following features:

  • Provide GW-7552 safe value setting
  • Display module parameters of the GW-7552
  • Show module address configuration of the GW-7552





  Modbus Support




Only the following Modbus commands are supported by the gateway.

Code
Name
Description
01
Read Coil Status
Read the ON/OFF status of discrete outputs in the slave
02
Read Input Status
Read the ON/OFF status of discrete inputs in the slave
03
Read Holding Registers
Read the binary contents of holding registers in the slave
04
Read Input Registers
Read the binary contents of input registers in the slave
05
Force Single Coil
Write a single output to either ON or OFF in the slave
06
Preset Single Register
Write an integer value into a single register in the slave
15
Force Multi. Coils
Write each coil in the sequence of coils to either ON or OFF in the slave
16
Preset Multi. Registers
Write a block of contiguous registers in the slave




  Hardware Specifications



Model
GW-7552
CPU
80186, 80MHz
Flash
512K Bytes
SRAM
512K Bytes
EEPROM
16K Bytes
Watch Dog Timer
CPU Built-in
COM 1
RS-232(3 wires)/RS-422/RS-485
Baudrate
Up to 115.2Kbps
PROFIBUS Interface
9-pin D-Sub(Female)
PROFIBUS Controller
Siemens SPC3
PROFIBUS Transceiver
ADI ADM2486 iCoupler Isolated Transceiver
Transmission Rate
Up to 12Mbps
Power Requirement
10V ~ 30V
Power Consumption
2.5W
Operating Temp.
-25℃ ~ +75℃
Storage Temp.
-30℃ ~ +85℃
Humidity
5% ~ 95%
Dimensions
118x72x33 mm




  Ordering Information



GW-7552 CR
PROFIBUS/Modbus Gateway (RoHS)
