iVIEW-100/ iVIEW-100-40 |
|
|
|
|
|
iVIEW-100/ iVIEW-100-40
Handheld HMI Controller |
|
 |
|
|
|
|
|
|
|
|
|
| |
|
|
| |
All-in-one Handheld HMI Controller
The iVIEW-100 series, all-in-one pack, are the compact handheld HMI controller with low cost/high performance text/graphic LCD display, specially designed for industrial environment that requires high reliability and PC-compatibility.
The iVIEW-100, CPU 20M Hz, is the basic type of iVIEW-100 series.
The iVIEW-100-40, CPU 40M Hz, is the representation of iVIEW-100 series.
|
 |
|
| |

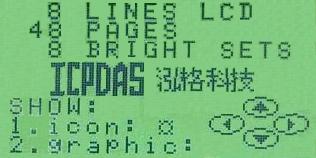

128x64 Dot, Green STN LCD Display
The iVIEW-100 series build-in the Green STN LCD to display messages & bitmap pictures. We offer many user functions for you to show texts, lines, boxes, icon & bitmap graphics.
You can show your messages on several pages. Local Language Bitmap Solution
The iVIEW-100 series can show any local language. The feature of supporting bitmap graphic provides a local language solution.
|
 |
|
| The iVIEW-100 series can display Japanese, French, Russian, Italian, Chinese, Indian… etc. Any language can be shown in bitmap graphic files, can be shown on iVIEW-100 series’ LCD. |

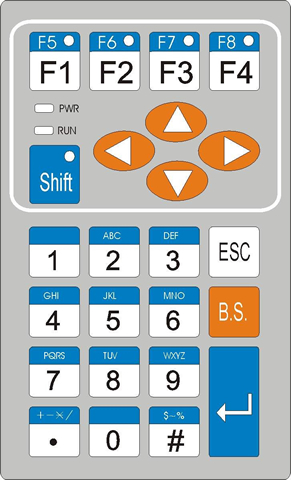

Full Numeric Membrane Keypad
The numeric membrane keypad is designed to input characters and numbers for iVIEW-100 series. You can design input-parameters into your program. So you can change the process without restarting controllers. There are 8 function keys & 4 arrow keys for the frequent functions setting.
One Programmable Buzzer |
 |
User can make alarm noise and change its period and frequency. With different alarm noises, it can notice the user
what the situation is and do some corresponsive responses. |

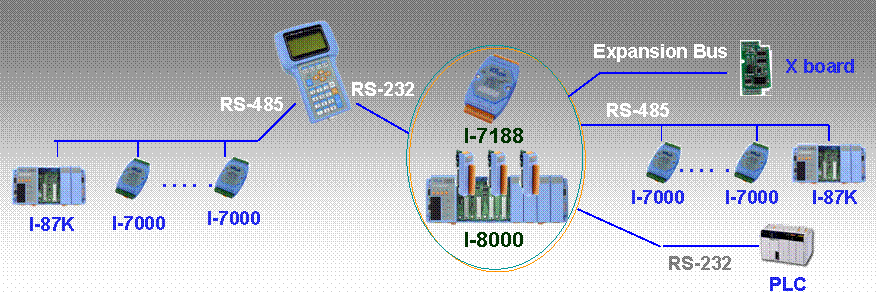

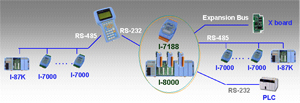

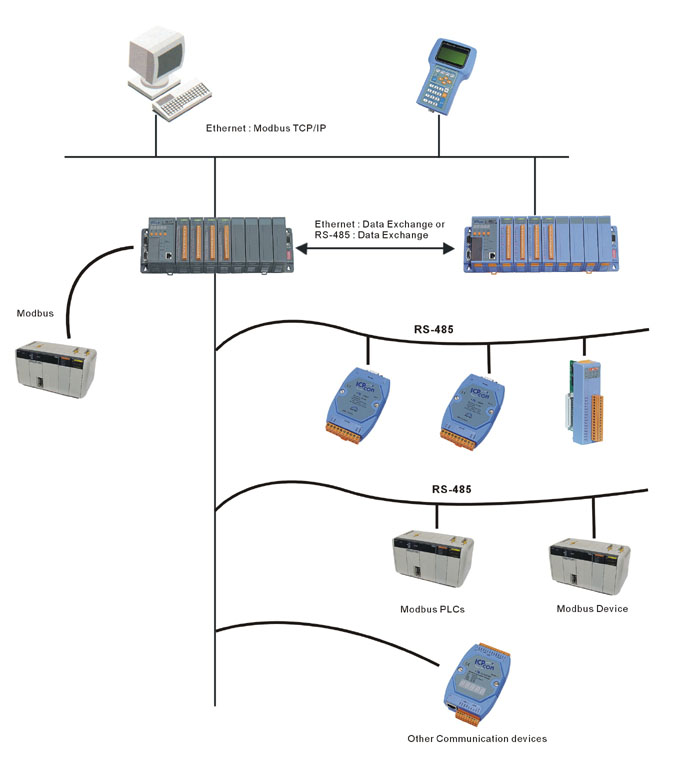

Multiple IO & Protocol Solutions |
|
 |

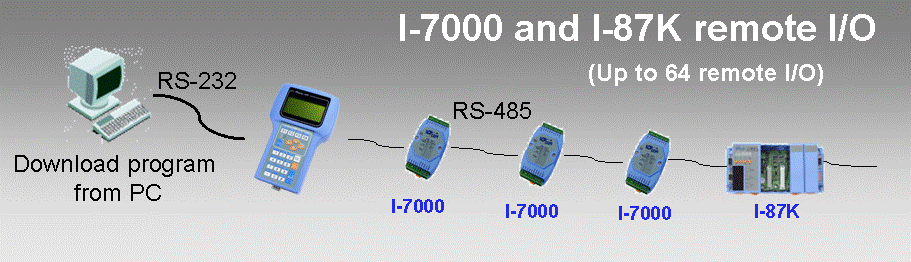

The iVIEW-100 series can connect up to 64 numbers of remote I/O modules, and combine host PC.
The iVIEW-100 series can also be used as HMI devices for embedded controller. |
| |
|
 |
When needing more IO, it provides several solutions combined with our
I-7188 and I-8000 remote I/O controllers to control more DI/O even with different protocol. |
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
Embedded CPU, 80188, 20/40M Hz |
 |
| 512K SRAM & 512K Flash ROM |
| Built-in RTC & NVSRAM & EEPROM |
| Built-in 2 channels of COM port |
| COM driver support interrupt & 1K QUEUE
input buffer |
| Built-in watchdog timer for harsh environment |
| Built-in power protection circuit |
| Built-in RS-485 network protection circuit |
| Support C language programming |
| Program download from PC |
| MiniOS7 inside |
| RTC leap year compensation to 2079 |
| MiniOS7 support RTC time & date |
| 64-bit Hardware Unique Serial Number |
| Built-in LCD display |
| LED type yellow-green backlight |
| Full numeric membrane keypad |
| 4 digital input channels and 2 relay output channels(Can be jumper selected to 4 open collector output channels) |
| One buzzer inside |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| iVIEW-100 series |
iVIEW-100 |
iVIEW-100-40 |
| CPU |
80188, 20M Hz |
80188, 40M Hz |
| SRAM |
512K bytes |
| Flash Memory |
512K bytes |
| 64K bytes are used by MiniOS7 |
| Erase unit is one sector(64K bytes) |
| 100,000 erase/write cycles |
| EEPROM |
2048 bytes |
| Data retention >100years |
| 1,000,000 erase/write cycles |
| NVSRAM |
31 bytes |
|
Battery backup, data valid up to 10 years |
| Real Time Clock |
Seconds, minutes, hours, date of the month |
| Month, year, valid up to 2079 |
| NVSRAM : 31bytes, data valid up to 10years |
| Lithium battery for RTC & NVSRAM |
| Watchdog Timer |
Yes |
| COM1 |
RS-232 |
| MaxSpeed:115200 |
| Program download with COM 1 |
| COM2 |
RS-232 or RS-485 |
| RS-485 : self-tuner |
| MaxSpeed:115200 |
| DIO Channel |
Input: 4 digital inputs |
| Output: 2 relay outputs, can jumper selected to 4 open collector outputs |
| Display |
STN, Yellow-Green Backlight LCD |
| 128*64 dots, 16*8 characters, VA:72*40mm |
| Shows text, number, real, Boolean, BMP graphic |
| Draws pixel, line, box, Lamp icon |
| Max to 48 pages |
| Keypad |
Full numeric membrane |
| Number, character, , shift, enter, BS, Esc keys |
| 4 direction, 8 function keys |
| Buzzer |
One internal buzzer |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |

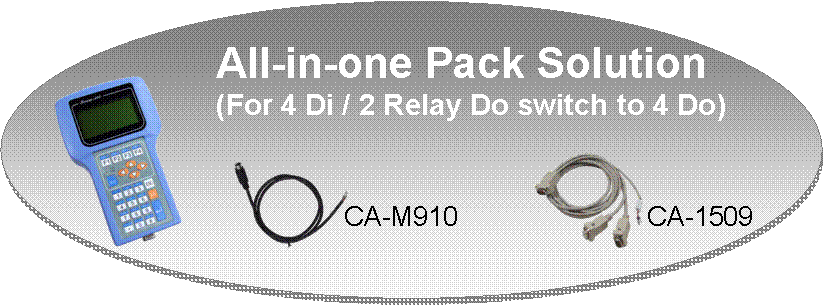

| One piece of IView module |
| One cable, CA1518-A, for download from PC, or link to other RS-232 device |
| One piece of companion CD for software |
| User manual |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
iVIEW-100 |
Handheld Controller with 512k flash ,512k SRAM, CPU is 20MHz |
| iVIEW-100-40 |
Handheld Controller with 512k flash ,512k SRAM, CPU is 40MHz |
| S-256 / S-512 |
256 / 512 K battery backup SRAM Module |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
