ANT-8
ANT-8 (Omni Directional)
1 Km external antenna (Omni directional)
Gain: 8dBi






Frequency 2.4 ~ 2.5 GHz
Polarization Linear

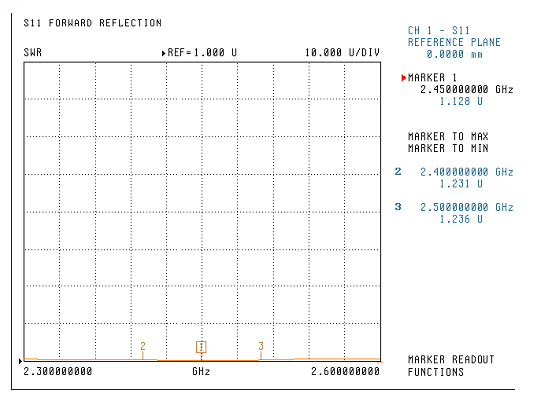

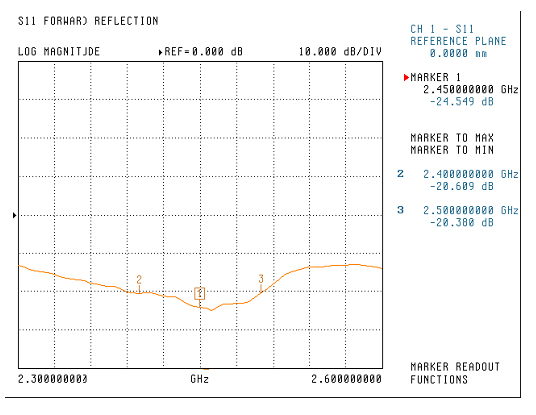

V.S.W.R. 1 : 1.3 (Max.)
Impedance 50 Ohms ¡Ó5£[
Gain 8 dBi
Power handling 15W (Max.)
Front to back ratio N/A
HPBW / horizontal 360¢X
HPBW / vertical 10¢X
Rated Wind 3.0 lbs. (1.4 kg)
Operating Temperature -20¢XC ~ 60¢XC







Connector Type N-type Female
Cable RG-58, 100 cm
Mounting Guide (JPG format 747 KB)

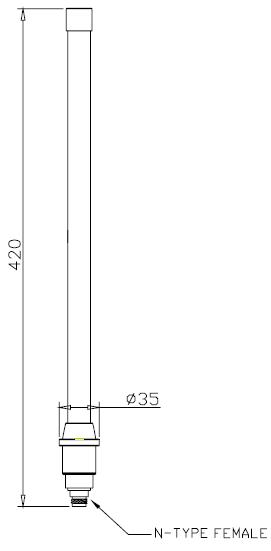

Length £p35 x 420mm
Weight 430 g
Radome color white
Radome material glass fiber

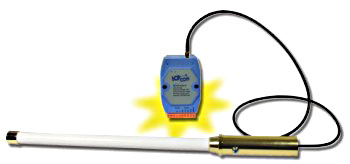

SST-2450 with ANT-8

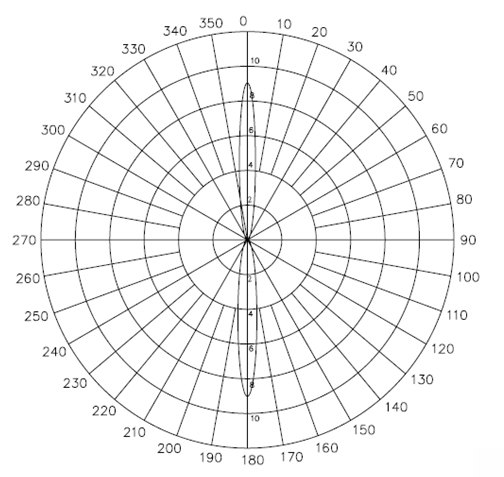

  H-PLANE FIELD PATTERNS

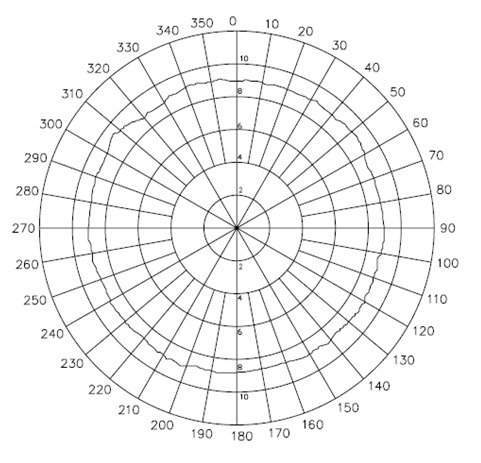

  E-PLANE FIELD PATTERNS






ANT-8 8dBi external antenna (Omnidirectional)

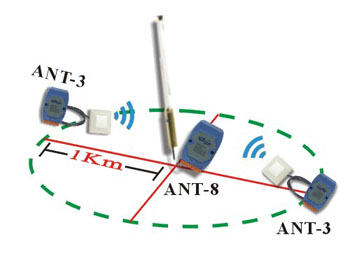

1.4Km@22dBm(LOS)(ZB-2000-PA)
450m@13dBm(LOS)(SST-2450)
Includes 3S004 x 1 ( HDF 200 cable, 1 meter long N type male to RP-SMA male )






3S005 HDF 200 cable, 3 meter long N type male to SMA Female
3S006 HDF 200 cable, 5 meter long N type male to SMA Female
