ANT-21
ANT-21(Directional)
12 Km external antenna (Directional)
Gain : 21dBi






Frequency 2.4~2.5GHz
Polarization Linear

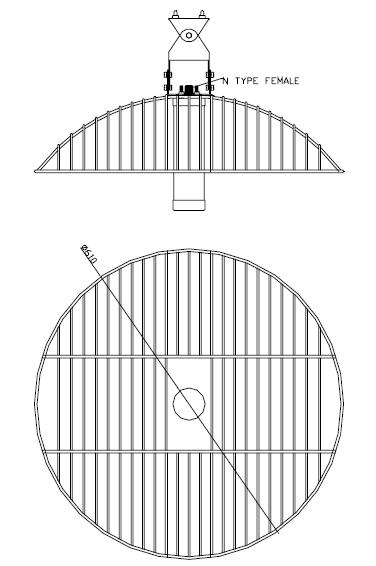

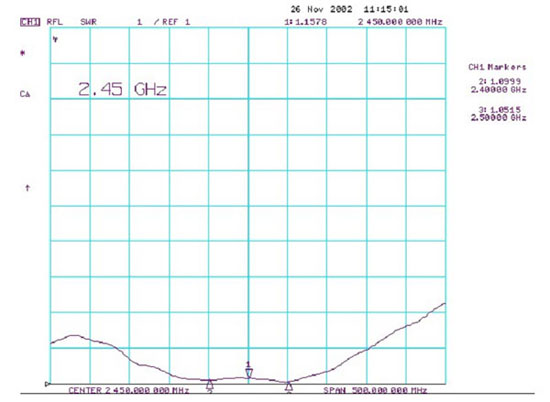

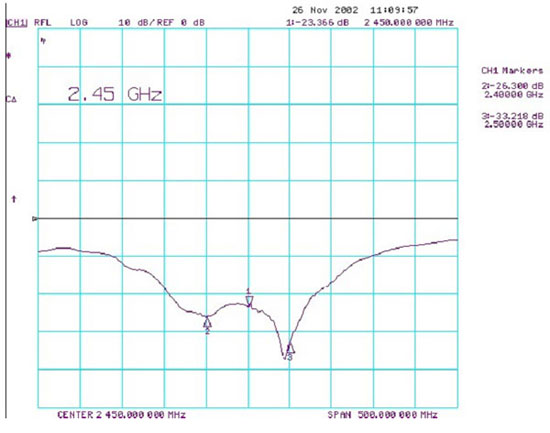

V.S.W.R. 1 : 1.5 (Max.)
Impedance 50 Ohms ¡Ó5£[
Gain 21 dBi
Power handling 20W (Max.)
Front to back ratio 30 dB
HPBW / horizontal 8¢X
HPBW / vertical 5¢X
Rated Wind 3.0 lbs. (1.4 kg)
Operating Temperature -20¢XC ~ 60¢XC







Connector Type N Type Female
Length 610 mm
Weight 2.77 Kg
Radome color white
Radome material ABS

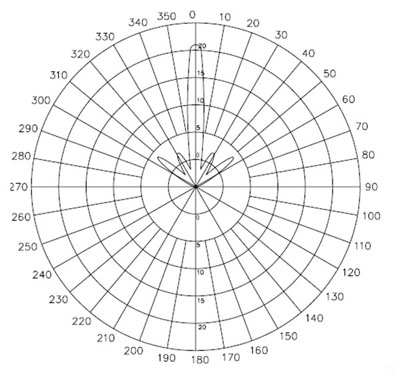

  H-PLANE FIELD PATTERNS

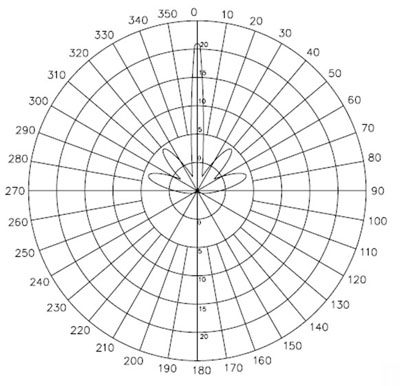

  E-PLANE FIELD PATTERNS







ANT-21 21dBi external antenna (Directional)
6.5Km@22dBm(LOS)(ZB-2000-PA)
2.0Km@13dBm(LOS)(SST-2450)






3S005 HDF 200 cable, 3 meter long N type male to SMA Female
3S006 HDF 200 cable, 5 meter long N type male to SMA Female
