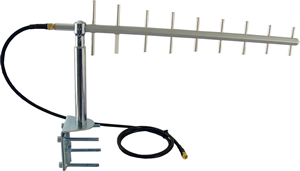

ANT-15YG
ANT-15YG(Directional)
5 Km external antenna (Directional)
Gain : 15dBi






Frequency 2.4~2.5GHz
Polarization Linear
V.S.W.R. 1 : 2.0 (Max.)
Impedance 50 Ohms
Gain 15 dBi
Power handling 10W (Max.)
HPBW / horizontal 25¢X
HPBW / vertical 18¢X
Operating Temperature -20¢XC ~ 60¢XC







Connector Type N-type Female
Cable RG-58, 100 cm
Deminsions (L x W x H) 325 mm x 70 mm x 15 mm
Weight 425 g
Radome material Aluminum

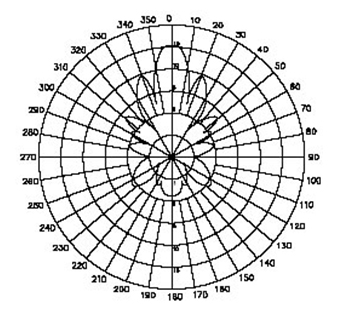

  H-PLANE FIELD PATTERNS

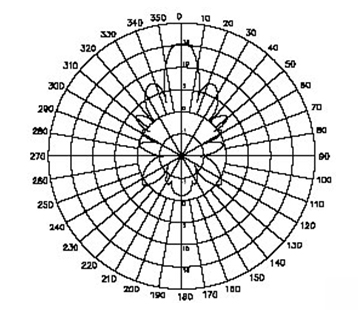

  E-PLANE FIELD PATTERNS






 ANT-15YG 15dBi external antenna (Omnidirectional)

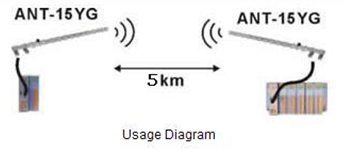

3.2Km@22dBm(LOS)(ZB-2000-PA)
1.0Km@13dBm(LOS)(SST-2450)






3S007 RG58A/U 5 Meter Long SMA male to SMA Female
3S008 RG58A/U 10 Meter Long SMA male to SMA Female
