ANT-15
ANT-15 (Omni Directional)
5 Km external antenna (Omnidirectional)
Gain : 15dBi






Frequency 2.4 ~ 2.5 GHz
Polarization Linear

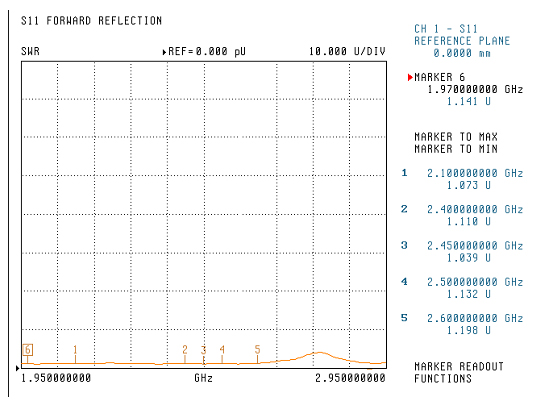

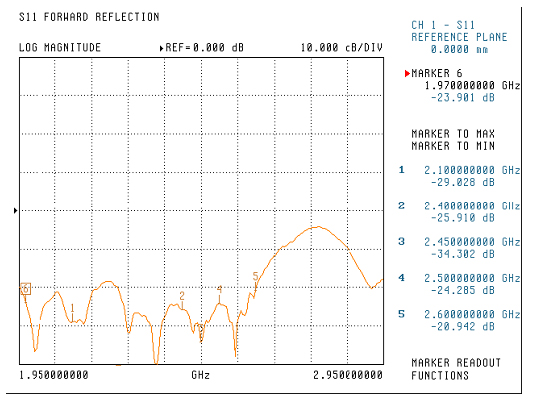

V.S.W.R. 1 : 1.3 (Max.)
Impedance 50 Ohms ¡Ó5£[
Gain 15 dBi
Front to back ratio N/A
HPBW / horizontal 360¢X
HPBW / vertical 10¢X
Rated Wind 3.0 lbs. (1.4 kg)
Operating Temperature -20¢XC ~ 60¢XC







Connector Type N-type Female
Cable RG-58, 100 cm

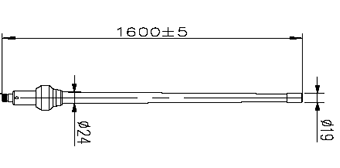

Length 1600 mm
Weight 1050 g
Radome color white
Radome material glass fiber

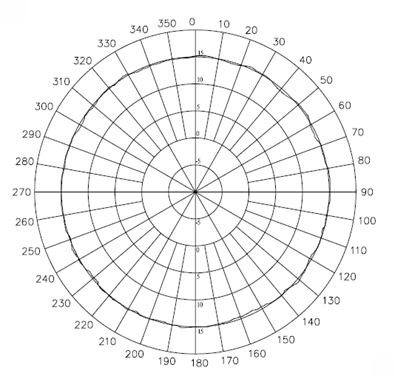

  H-PLANE FIELD PATTERNS

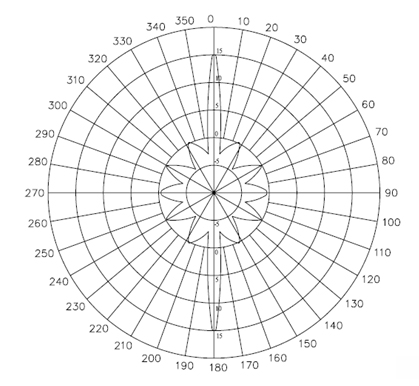

  E-PLANE FIELD PATTERNS







ANT-15 15dBi external antenna (Omnidirectional)

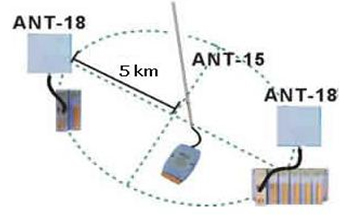

3.2Km@22dBm(LOS)(ZB-2000-PA)
1.0Km@13dBm(LOS)(SST-2450)
Includes 3S004 x 1 ( HDF 200 cable, 1 meter long N type male to RP-SMA male )






 3S005  HDF 200 cable, 3 meter long N type male to SMA Female
 3S006  HDF 200 cable, 5 meter long N type male to SMA Female
