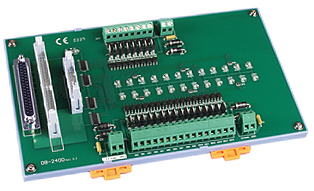

DB-24OD
24-channel Open-Drain Output Board |
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
| The DB-24OD has 24-channel of optically isolated digital output, arranged into four isolated banks. |
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- 24 Open-Drain output
- One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
- Connects directly to OPTO-22 compatible board or any 722,724 series board
- Each channel max. load 400mA
- LED’s indicated relay status
- Max. load voltage : 35Vdc
- Screw terminals for easy field wiring
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- Open-Drain Each Channel : 400mA (max. load current )
- Power Consumption : +5V @0.4A max
- Dimension : 223.5mm X 135.5mm
- Operating Temperature : 0 -60°C
- Storage Temperature : -20~70°C
- Humidity : 5% to 90 % noncondensing
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- On/off control
- Energy management
- Test Automation
- Process Control
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| DB-24OD |
24-channel Open-Drain Output Board
Include : CA-3710 (37-pin D-sub Cable 1m) |
| DB-24OD/DIN |
DB-24OD with DIN-Rail Mounting |
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| CA-2010 |
20-pin flat cable 1.0m |
| CA-2020 |
20-pin flat cable 2.0m |
| CA-3710 |
37-pin D-sub connector cable 1.0m |
| CA-3720 |
37-pin D-sub connector cable 2.0m |
| CA-5015 |
50-pin flat cable 1.5m |
|
|
| |
|
|
|
| |
|
|
| |
|
|
