DB-16P8R
16-channel Opto-islated Digital Input & 8-channel Relay Output Board |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The DB-16P8R is a 16 channel isolated digital input & 8 channel relay output daughter board for DIO24, DIO48, DIO144, PCI-PIO144, PCI-PIO96 & PCI-PIO48 OPTO-22 Compatible digital I/O board or any 722, 724, digital input board . |
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- 16 Optically isolated digital input channels
- 8 Relay output channels
- Connects directly to DIO24,DIO48,DIO144, PIO-D144 ,PIO-D96 , PIO-D48 OPTO-22 compatible digital input card or any 722,724 OPTO-22 compatible digital input board.
- Isolation digital input
- Dry contact or wet contact by jumper select Input range : High 5~24Vdc / Low 0~1.8Vdc
- Input resistor : 1.2K Ohm/ 1W Input buffer with voltage comparators
- Relay output 8-Channel Relay Output Max. Load 30Vdc/220Vac @5A
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- Isolated Digital Input
- Configuration : 16 optically isolated digital input channels
- Compatibility : TTL compatible Digital Input
- Number of channels : 16 , each with its own ground reference isolated from other channels
- Maximum input voltage :24 VDC or 24 VAC
- Dry contact : Close : Output High(TTL); Open : Output Low (TTL)
- Digital Logic Level
LEVEL |
Minimum |
Maximum |
Input low voltage |
0 |
1V |
Input high voltage |
2.8VDC |
24VDC |
- Input impedance : 1.2k
- Source Current
5V inputs : 4mA/channel minimum
24V inputs : 20mA/channel minimum
- Response Time :20us
- Relay Outputt : Channel : 8, Coil voltage : 24VDC, Max. Load : 30Vdc / 220Vac @ 5A
- Power Supplies :
+5v :300mA /maximum (via 50-pin D-sub connector)
+24Vdc : External Input (Via screw terminal block) for Relay output
- Board Dimension : 213mm x 132mm
- Operating Temperature : 0 -60°C
- Storage Temperature : -20~70°C
- Humidity : 5% to 90 % noncondensing
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- Isolated digital input sensing
- Testing Automation
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| DB-16P8R |
16-channel Isolated Input & 8-channel relay output Board
Include : CA-5015 (50-pin Flat Cable 1.5m) |
| DB-16P8R/D |
16-channel Isolated Input & 8-channel relay output Board
Include : CA-3710 (37-pin D-sub Cable 1m) |

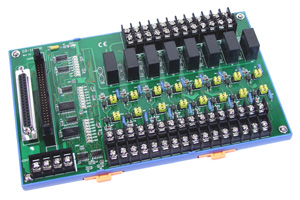

| DB-16P8R/DIN |
DB-16P8R with DIN-Rail Mounting |
| DB-16P8R/D/DIN |
DB-16P8R with DIN-Rail Mounting |
| DB-16P8R CR |
16-channel Isolated Input & 8-channel relay output Board
Include : CA-5015 (50-pin Flat Cable 1.5m) (RoHS) |
| DB-16P8R/DIN CR |
DB-16P8R with DIN-Rail Mounting (RoHS) |
|
|
| |
|
|
|
| |
|
|
| |
|
|
|
|
