Model :PISO-PS300
PISO-PS300

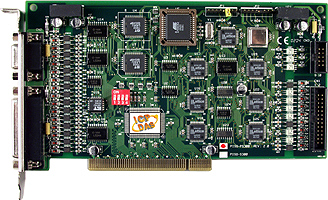

3-axis High Speed Stepping/Servo Control Board
Manual Hardware Software
Certification FAQ Datasheet
Functional Description
The PISO-PS300 is a 3-axis Pulse command type, servo motor control board. The embedded CPU of PISO-PS300 performs the motion command transferred from host-PC via a 2K bytes FIFO. It also sends the position and status to host-PC via another 2K bytes FIFO. This buffer provides time buffer and it is very suitable for windows operating system. This board provides DOS, windows 95 and windows NT drivers.
back
Features
  • 3-axis Pulse-command servo motor board
  • Embedded CPU
  • Max. Pulse rate : 1 MHz
  • 3 Axis linear interpolation, Circular interpolation
  • Programmable trapezidal speed profile
  • Programmable DDA cycle
  • Hardware emergency stop
  • DOS, Windows 95, Windows NT driver
  • 8 digital input, 7 digital output
  • Dimensions : 208mm X 121mm
back
Software
  • Toolkit for DOS
  • Toolkit for Windows 95/98
  • Toolkit for Windows NT
  • Toolkit for Windows 2000/XP
  • Toolkit for LabVIEW95/98
  • Toolkit for LabVIEW NT/XP
  • Toolkit for LabVIEW 2000/XP
  • Driver for LINUX
back
Ordering Information
PISO-PS300 3-Axis Pulse-command Servo motor control board Include :
CA-9-2502(9-pin Male & 25-pin Female D-sub Cable 0.2m)
CA-PC09F(9-pin Female D-sub Connector with Plastic Cover )
CA-PC09M(9-pin Male D-sub Connector with Plastic Cover )
CA-PC25M(25-pin Male D-sub Connector with Plastic Cover )
back
Optional Accessories
DB-8R 24-channel isolated D/I board
