PISO-C64/PISO-C64U
PISO-C64:PCI Bus, 64通道隔離開集極數位輸出卡 (Current Sinking)
PISO-C64U: Universal PCI, 64通道隔離開集極數位輸出卡 (Current Sinking) |
|
|
| Model: PISO-C64 |
Model: PISO-C64U |
|
|
|
|
 |
|
|
|
|
| |
|
|
| |
|
|
| |
PISO-C64U板卡是泓格新上市並符合RoHS環保規範的產品，新的PISO-C64U的設計可直接相容於PISO-C64。

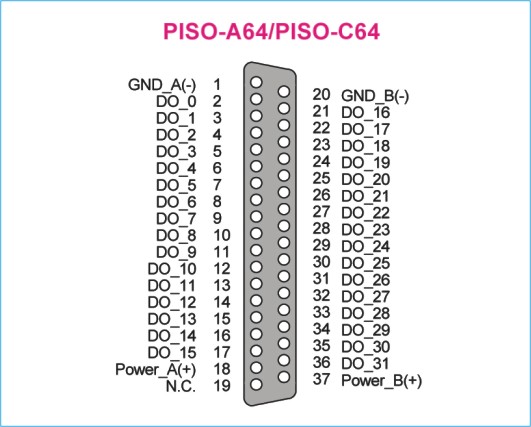

PISO-C64U 支援 3.3 V/5 V PCI bus 介面，PISO-C64 支援5 V PCI bus介面。 他們都提供有64個開集極數位輸出通道，並分別安排至4個Isolated bank。每個數位輸出通道提供了一個達林頓電晶體，具有3750 Vrms隔離保護。PISO-C64/PISO-C64U的邏輯信號可消除接地迴路問題和隔離導致主機損壞的電壓。此系列板卡包含有一個37-pin D-Sub接頭及一個40-pin 公接頭，用戶能夠使用40-pin轉DB-37 的flat-cable，就能連接數位訊號至第二個D-Sub接頭，而每個D-Sub連接器都包含有 32個輸入通道。
PSIO-C64U在硬體上新增Card ID指撥開關，讓使用者可以自由設定每張板卡的識別碼。當系統同時使用多張PISO-C64U卡時，使用者可以迅速而簡單區別這些同型號的板卡。
此系列卡支援在Linux、DOS、Windows 98/NT/2000、32/64-Bit Windows XP/2003/Vista/2008/7等作業系統環境下使用，還提供有動態函式庫及Active X控制項使開發更加容易及簡單易懂的各種語言範例程式，如Turbo C++、Borland C++、Microsoft C++、Visual C++、Borland Delphi、Borland C++ Builder、Visual Basic、Visual C#.NET、Visual Basic.NET及LabVIEW等，讓用戶能夠快速的上手來使用。 |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
- PISO-C64為PCI bus介面，支援 +5 V PCI bus插槽
- 64個開集集數位輸出通道
- 四個Isolated bank
- 3750 Vrms光隔離保護
- 支援隨插即用來取得 I/O資源
- 不需多餘手動設定I/O 位址及IRQ
[PISO-C64U 僅有]
- Universal PCI介面，支援+3.3 V及+5 V PCI bus 插槽
- 支援Card ID 功能
- 支援 DO Readback 功能
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
- 支援DOS Lib 及TC/BC/MSC 範例程式 (包含 source codes)
- 支援Windows 95/98/NT/2K 的DLL 及 OCX SDK
- 支援32-bit/64-bit Windows XP/2003/Vista/7的DLL 及 OCX SDK
- 支援VB/VC/Delphi/BCB/VB.NET/C#.NET 範例程式 (包含 source codes)
- 支援Windows LabVIEW 開發工具
- 支援Linux 驅動程式
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
| Model Name |
PISO-C64U |
PISO-C64 |
| Digital Output |
| Isolation Voltage |
3750 Vrms |
| Channels |
64 |
| Compatibility |
Sink, Open Collector |
| Output Capability |
100 mA/+30 V for one channel @ 60% duty |
| Response Speed |
4 kHz (Typical) |
| General |
| Bus Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
5 V PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Card ID |
Yes (4-bit) |
No |
| I/O Connector |
Female DB37 x 1
40-pin Box header x 1 |
| Dimensions (L x W x D) |
180 mm x 105 mm x 22 mm |
| Power Consumption |
800 mA @ +5 V |
| Operating Temperature |
0 ~ 60 °C |
| Storage Temperature |
-20 ~ 70 °C |
| Humidity |
5 ~ 85% RH, non-condensing |
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
| PISO-C64 |
64-channel Optically Isolated Open-collector Digital Output Board (Current Sinking)
Includes one CA-4037B cable and two CA-4002 D-Sub connectors. |
| PISO-C64 CR |
64-channel Optically Isolated Open-collector Digital Output Board (Current Sinking) (RoHS)
Includes one CA-4037B cable and two CA-4002 D-Sub connectors. |
| PISO-C64U CR |
Universal PCI, 64-channel Optically Isolated Open-collector Digital Output Board (Current Sinking) (RoHS)
Includes one CA-4037B cable and two CA-4002 D-Sub connectors. |
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
| CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°)) |
| CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°)) |
| CA-3710DM |
DB-37 Male-Male Cable, 1.0 M, 180°. (RoHS) |
| CA-3730DM |
DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS) |
| CA-3750DM |
DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS) |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| CA-4037B |
40-pin flat & D-sub 37-pin Female cable 24 cm. |
| DB-32R |
32-channel relay output board Include : CA-3710D Male- Male D-sub Cable 1.0 M |
| DB-37 |
Directly connect signal to D-sub 37-pin connector |
DN-37 |
DIN Rail Mounting 37-pin Connector |
|
|
|
|
| |
|
|
|
|
|
| |
