Model: DP-665
DP-665
24V/2.5A 5V/0.5A Power supply







DP-665 is a 65 watts,universal input switching mode power supply.

It is with 24V/5V output options. DP-665 is intended for power device like motor or solenoid application.Build in +5V 3T-regulator for DP-665 is for if there is a logical control circuit.







  • Input voltage : 85Vac to 270Vac
  • Input frequency : 47Hz to 63Hz
    		•
  • Inrush current (Cold start) :
    •       less than 30A at 115Vac
          less than 60A at 230Vac
  •  DC Outputs :
    •       +24V/2.5A
          +5V/0.5A
  • Efficiency : higher than 70% at rated load and 115Vac
    		•
  • Holdup time : 16ms at rated load and 115Vac
  • Over voltage protection : hiccup mode
  • Short circuit protection : latch off
    		•
  • Over voltage protection : latch off
  • Operating temperature : 0 to 50 ¢XC
    		•
  • Cooling : free air convection
    		•
  • Storage temperature : -40 ¢XC to +85 ¢XC
    		•
  • Dimensions : 210mm x 42mm x 116mm
    		•

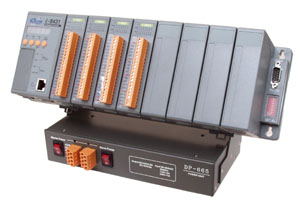

    I-8000 Series with DP-665






    DP-665 24V/2.5A 5V/0.5A Power Supply
