Hello folks, ICP DAS is honorable to meet you here at this moment of
every month. In August, we proudly present you two hot modules, I-8064W
& I-8040P. They are best pals for your PACs. Let's now open
their boxes and find out their secrets! |
|
|
|
|
|
|
|
|
|
|
|
|
|
|

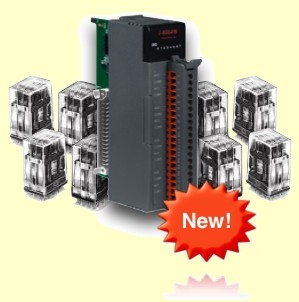

I-8064W 8-channel Power Relay
Output Module |
|
|
|
|
|
 |
With a I-8064W on your PAC, you
are able to control On/Off for up to 8 devices at the same
time with ease. |
|
| Digital Output |
| Output Channels |
8 |
| Output Type |
Power Relay, Form A (Normal Open) |
| Relay Contact Voltage Range |
5A@250VAC(47~63Hz); 5A@30VDC |
| Max Load Current |
5.0 Arms |
| Max. Operate Time |
6 ms Max. |
| Max. Release Time |
3 ms Max. |
| Insulation Resistance |
Min. 1,000 MOhms, at 500VDC |
| Dielectric Strength |
Between Open Contacts : 750Vrms (at 1
Minute) |
Between Coil and Contacts : 2000Vrms (at
1 Minute) |
| Relay On Time (typical) |
6 ms |
| Relay Off Time(typical) |
3 ms |
| Surge Strength |
4000V (at 1.2*50us) |
| Relay Life |
Mechanical : 2*10,000,000 Min. |
| Electrical : 100, 000 min. , Resistive |
| Power |
| Power Consumption |
0.22A@5V = 1.1W ,+/- 5% |
| Environment |
| Operating Temperature |
-25 to 75 °C |
| Storage Temperature |
-30 to 85 °C |
| Humidity |
5 to 95%, Non-condensing |
|
More information about I-8064W, please visit here:
http://www.icpdas.com/products/Remote_IO/I-8ke/I-8064w.htm |
|
|
|
|
|
|
|
Top |
|
|
|
|
|

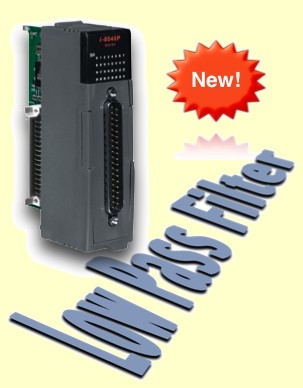

I-8040P
32-channel Isolated Digital Input Module with Low Pass Filter |
|
|
|
|
|
 |
I-8040P features low pass filter, offering
a much more
stable running environment for all digital channels.
With isolation up to 3750V rms, I-8040P is definitely
the one you can count on! |
|
| Digital Input |
| Input Channels |
32 |
| Input Type |
One Common for All Digital Inputs |
| On Voltage Level |
+19V ~ +30V |
| Off Voltage Level |
+11V max |
| Input Impedance |
3K Ohms, 0.25W |
| Intra-module Isolation, Field to Logic |
3750V rms |
| Low Pass
Filter |
| Response time |
OFF to ON |
1ms/5ms/10ms/20ms/40ms/70ms
(by Jumper select or CPU parameter setting)
Default Setting is 10ms |
|
ON to OFF |
1ms/5ms/10ms/20ms/40ms/70ms
(by Jumper select or CPU parameter setting)
Default Setting is 10ms |
|
| Power |
| Power Consumption |
0.22A@5V = 1.1W ,+/- 5% |
| Environment |
| Operating Temperature |
-25 to 75 °C |
| Storage Temperature |
-30 to 85 °C |
| Humidity |
5 to 95%, Non-condensing |
|
More information about I-8040P, please visit here:
http://www.icpdas.com/products/Remote_IO/I-8ke/I-8040p.htm |
|
|
|
|
|
|
Top |
|
|
|
|
|
More
information about ICP DAS's products, please
visit our website.
http://www.icpdas.com/products/Products-list.htm
or send a e-mail to Joey. An immediate service will be available!
