ICP DAS NEW Products: ISO-P32S32W
ISA Bus, 32-CH Optical-Isolated DI and 32-CH Optical-Isolated Open-Collector Output Board
(8-CH for 500mA and 24-CH for 100mA Current Sinking Output, NPN) |
|
|
|
|
|
 |
|
|
|
|
|

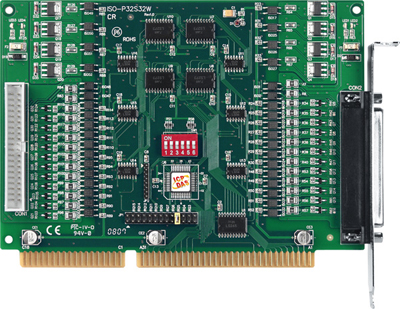

Introduction:
ISO-P32S32W is a new generation product of ISO-P32C32. ISO-P32S32W has 32 channels of optical-isolated DI and 32 channels of optical-isolated open-collector output board (8-channel for 500mA and 24-channel for 100mA current sinking output, NPN), arranged into four isolated banks. Each input channel use a photo-coupler to isolate the card and computer from external signal. Each digital output offers a NPN transistor and integral suppression diode for inductive load. ISO-P32S32W requires external power to drive the D/I and D/O ports.
This interface board is easily installed in any PC. The board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. ISO-P32S32W has one 37-pin D-Sub connector and one 40-pin male header. The 40-pin to DB-37 flat cable is used to fix with the case. The user can connect the digital signal through the second D-Sub connector. Each D-Sub connector contains 16 input channels and 16 output channels. |
|
|
|
|
|
| Selection Guide |
| |
ISO-P32C32 |
ISO-P32S3W |
| Bus |
ISA Bus |
ISA Bus |
| DI Channel |
32-CH optical-isolated |
32-CH optical-isolated |
| DO Channel |
32-CH optical-isolated open-collector |
32-CH optical-isolated open-collector |
| Open Collector |
100mA: each channel
Current Sinking, NPN |
500mA: 8-channel
100mA: 24-channel
Current Sinking, NPN |
|
|
|
|
|
|
Features:
- 32-CH optical-isolated digital input
- 32-CH optical-isolated digital output
- Isolation Voltage: 3750V (Using external power)
- Open Collector: 500mA (8-channel), 100mA (24-channel), Current Sinking, NPN
|
|
|
|
|
|
More information, please refer to
http://www.icpdas.com/products/DAQ/pc_based/iso-p32s32w.htm |
|
|
|
|
|
|
 |
|
|
|
|
