Introduction
Why ICP DAS
- ICP DAS possesses professional Fieldbus R&D and integration capabilities, which allows us to provide the most suitable solutions for different application scenarios.
- Our products are designed to meet the needs of the industrial environment, and are excellent for noise immunity and reliability.
- ICP DAS has developed various IIOT and Industry 4.0 Communication standard modules based on the MQTT, OPC and UA protocols, which can measure a wide variety of air factors, electricity information, vibration, and temperature to meet the demands of industrial applications.
- ICP DAS has a strong ODM capability and can provide customized services depending on the needs of our customers.
Applications
The approach to the features required in the IT and industrial control field is in fact quite different, especially when considering aspects such as communication protocols and data formats. Consequently, ICP DAS provides solutions by reviewing the hardware that might be required in order to address the needs of all parties, thereby reduce the labor cost incurred by the intermediary configuration. For example, an MQTT broker is the most common hub implemented when considering IOT, while OPC UA (Unified Architecture) is used at an industrial site to connect to the Cloud.

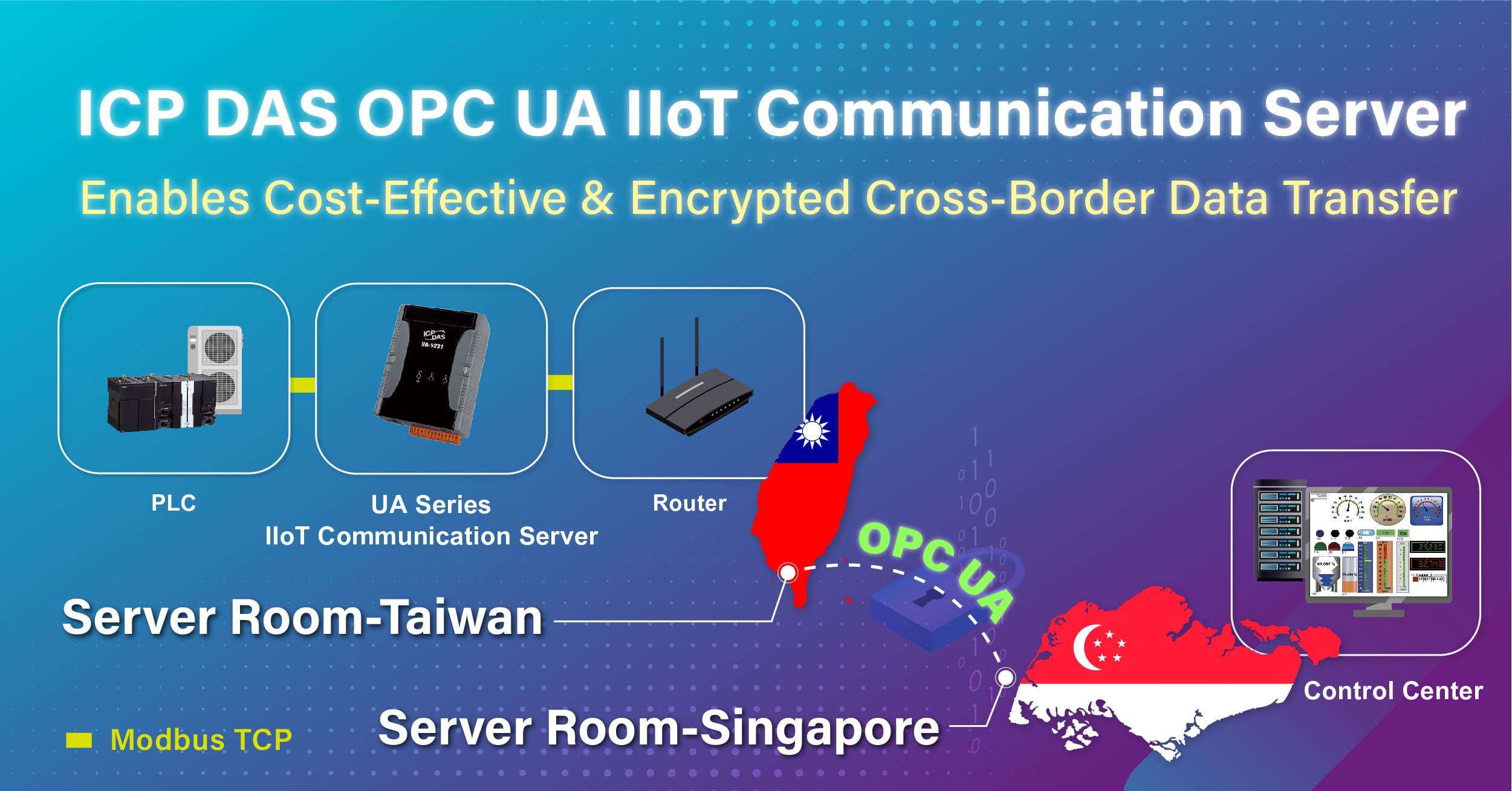

- MQTT is the most commonly used messaging protocol employed in the IOT industry, which can be regarded as a bridge for the data transmission between field devices. In order to more concisely and efficiently render communication between the IT site and the OT site, ICP DAS has developed a series of UA schemes based on the MQTT protocol, that allow the modules to be integrated between the devices through the OPC UA using different communication languages, providing a standardized encryption format for the data that can be confidentially uploaded to the Cloud.
- By correctly configuring the hardware settings for an UA IO series device in the field to integrate machine communication languages via the OPC UA, data transmission becomes more concise and intuitive when attempting to solve previously complex data uplink and confidentiality issues.
Solution for CAN Bus Deployment and the Integration of Various Industrial Communication Interfaces
The CAN(Controller Area Network) bus is one kind of serial bus protocol that features high flexibility and integration capabilities. Allowing CAN devices to be added to existing networks without needing to modify or adjust the hardware or software. It also provides high-level security and efficient control in real-time. In the past, an RS-485 interface relied completely on the software mechanism; The determination of packet accuracy and preventing packet collision was performed by the software program...etc。
OPC UA: New Generation Technology for Standard Industrial Communication
The OPC Unified Architecture (OPC UA), released in 2008, is a standard technology for industrial automation communication. It is a platform that integrates all technology standards such as OPC DA, HA, and AE, etc. It features reading and writing real-time data, accessing historical data, and event/warning publishing functions.
ICP DAS utilizes its own IoTstar cloud management software, together with its own WISE, PMC and PMD intelligent controller series to manage the data collected by the I/O devices being controlled, or perform the logic configuration for scheduling control, which authentically shares the computing burden and realizes real-time intelligent control in the field. The control scheme provides the following features:
- Reduction in the communication loading required for the central control computer that may have limited bandwidth
- Capable of performing DPA (Data Processing Addendum) for data concentrators to ensure data integrity if there is a communication outage
- Expandability and reliability of the I/Os being controlled
- Real time and historical databases
- Logic decision configuration is available, (LINE, WeChat real-time alarm function), (two-way LINE Bot alarm and control function)
- Supports both public and private cloud systems

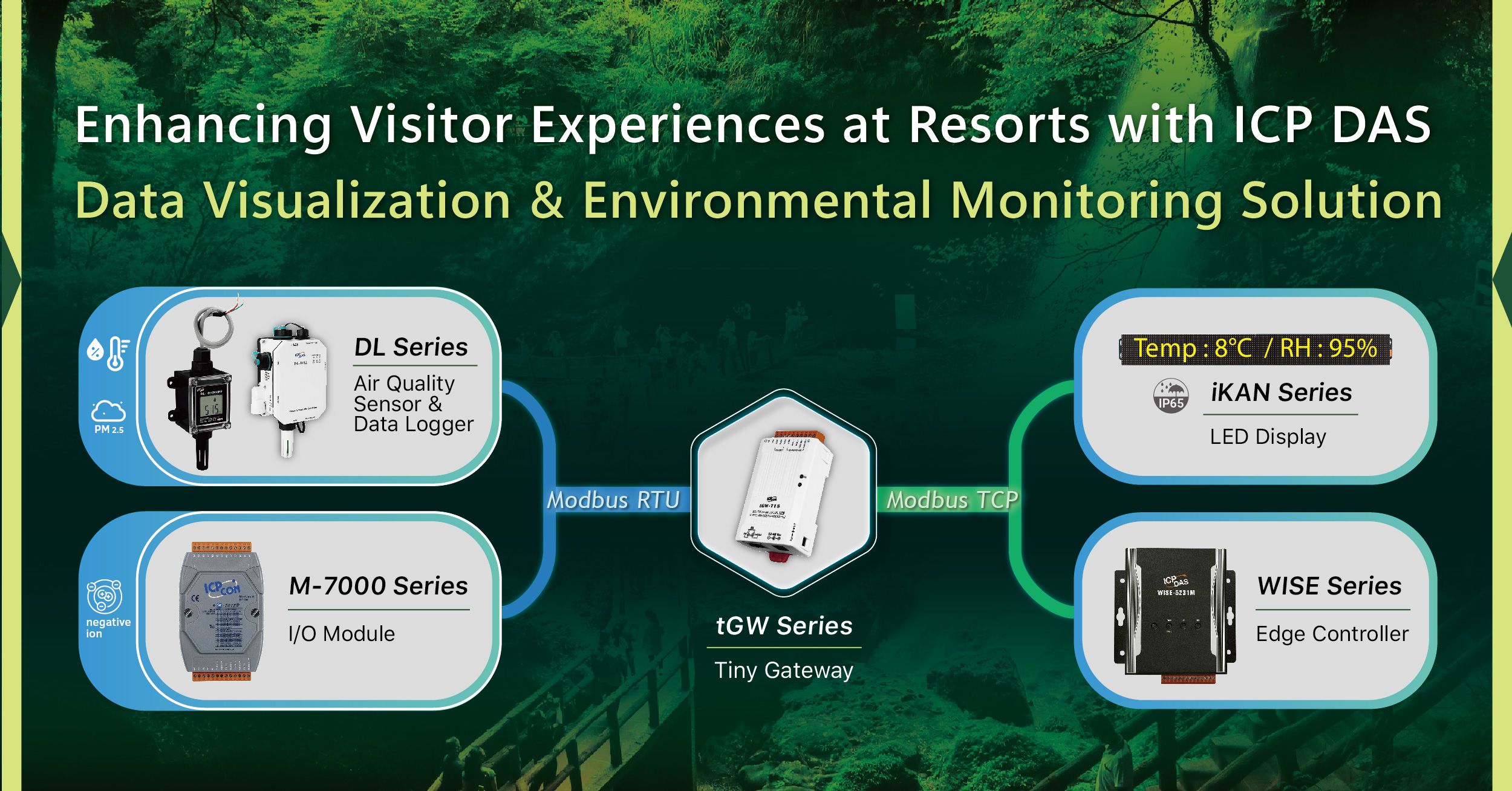

Enhancing Visitor Experiences at Resorts with ICP DAS Data Visualization & Environmental Monitoring Solution
Sun-Link-Sea Vacation Resorts have utilized various environmental sensors, including negative ion sensors, and ICP DAS DL-100 Series and DL-1000 Series – air quality data logger modules. M-7000 Series – I/O modules are also installed to convert signals. The collected data on negative ion concentration, temperature, humidity, and PM2.5 is transmitted to the tGW-715 Tiny Gateway supporting both Modbus RTU and Modbus TCP protocols......
Application Case of Cold Storage Warehouse Temperature Monitoring in a Beverage Plant
To implement remote temperature monitoring of the cold storage warehouse, the client used a WISE series IIoT edge controller and remote I/O modules from ICP DAS to convert and transmit the current temperature sensor data to the control center in real-time. Collecting the temperature data of multiple warehouses can take place at the same time, and the temperature data of each warehouse can be displayed in the control center instantaneously. This feature helps factory personnel efficiently monitor temperature changes in warehouses.
WISE Application in a Linked Fire Alarm System
For decades, fire warning alarm systems have proved to be very important in saving lives and property from fires that happen all the time. Do you know the difference between a traditional alarm system and a linked fire alarm system from ICP DAS?
WISE Controllers Play a Key Role in the Hydraulic Control
In automation applications for hydraulic systems, the PLC is usually used to perform the interlocking controls for various valves so that the hydraulic system can function accurately, such as proportional valves, solenoid valves and pressure reducing valves. The driving input range for each valve or switch may vary. Some require an input voltage for control operations of -10 to +10 V......
WISE-5231 Intelligent Multifunction IIoT I/O Concentrator
The WISE-5231 Controller provides powerful and flexible integration with I/O modules and sensors on the field side, and supports various IoT protocols for seamless integration with SCADA/MES/MIS/IT/IoT Management systems to transfer real-time I/O information from the front-end modules (or sensors) to the back-end management systems. It also features reliable real-time I/O logic control and......
Application of ICP DAS’s Solution for Cloud Data Visualization in Wind Turbine Foundation Monitoring System in the UK
ICP DAS’s WISE series IIoT edge controllers are used to collect vibration data from wind turbines located across the UK. Then this data is transmitted to a control center in London via GPRS (3G/4G) and managed with the software IoTstar developed by ICP DAS. This software can easily monitor and manage the wind turbine status remotely, displaying the data on the dashboard and providing ....
ICP DAS’s Cloud Data Visualization Solution for Solar Power Plant Monitoring (Phuket, Thailand)
ICP DAS‘s WISE series IIoT edge controllers collect data from solar power plants located in Phuket, Thailand, and its surrounding 32 outlying islands. The data is then transmitted to a control center in Phuket via a 4G wireless connection and managed with the IoTstar software developed by ICP DAS. This software can easily monitor and manage the status of solar power plants remotely, ....
.jpg)
ICP DAS’s Solution for Cloud Data Visualization in Water Supply Monitoring System (India)
Using ICP DAS‘s WISE series intelligent edge controller and IoTstar IIoT cloud management software, real-time data of water supply systems located in Indore city, India can be wirelessly transmitted to the monitoring center via 4G, allowing users to remotely monitor water supply systems throughout the city. The status of the water supply system can be monitored at any time using....
Considering of the need to increase mobility when deploying equipment, reducing wiring costs, combined with the demand of wireless communication in the market, ICP DAS has researched and developed a wide range of wireless communication module solutions, such as ZigBee, Wi-Fi, NB-IoT, RF, GPS, Bluetooth, Lora, GSM, 3G, 4G and IR, in which wired communication in the field has been converted into wireless communication via these modules to assist customers in solving any issues that they may experience.
ZigBee Application – Route Management System for AGV
In recent years, unmanned factory or warehouse automation systems has become popular. Automatic Guided Vehicles (AGV) are used to transport goods to and from the product lines, storage systems, and transfer stations, etc. If there are several AGVs in the same location, vehicle driving routes may overlap. Consequently, preventing route conflict is an important issue......
ZigBee Application – Emergency Alarm System
An emergency alarm system is often used in the MRT, buildings, schools, or hospitals, as well as other public places where security management is required. If an accident occurs, you can press the alarm to immediately notify the relevant personnel. At the same time, the security control center will be informed of the location of the event and send staff to take immediate action. However......
ICP DAS’s Wireless Distress Signal System in Forest Recreation Areas (Taiwan)
The ICP DAS‘s iSOS-100 indoor emergency button transmits the distress signal to the iWSN-200U wireless data concentrator in the 433 MHz wireless radio band. The distress signal is then sent to the WISE-5231 IIoT edge controller through the MDC-711 Modbus data concentrator. When an emergency occurs, the notification function of the WISE-5231 controller will immediately send out a distress signal to improve the safety of tourists in the forest recreation area.
Smart Epidemic Prevention in Hospitals with ICP DAS’s LoRa Wireless Modem for Mobile Robot
The ICP DAS‘s LRA-900 LoRa wireless modem is used to transmit remote images to assist medical staff in patient care. It not only provides a remote diagnosis and treatment mode, but also reduces the risk of infection of medical personnel....
ICP DAS’s Wireless Monitoring Solution for Overhead Cranes in Bicycle Painting Production Lines
Using ICP DAS‘s M-7000 series I/O modules and RFU series wireless modem, customers can bridge the communication between overhead cranes and PLCs on the ground through the radio frequency (RF) to control overhead cranes in bicycle painting production lines remotely.....
