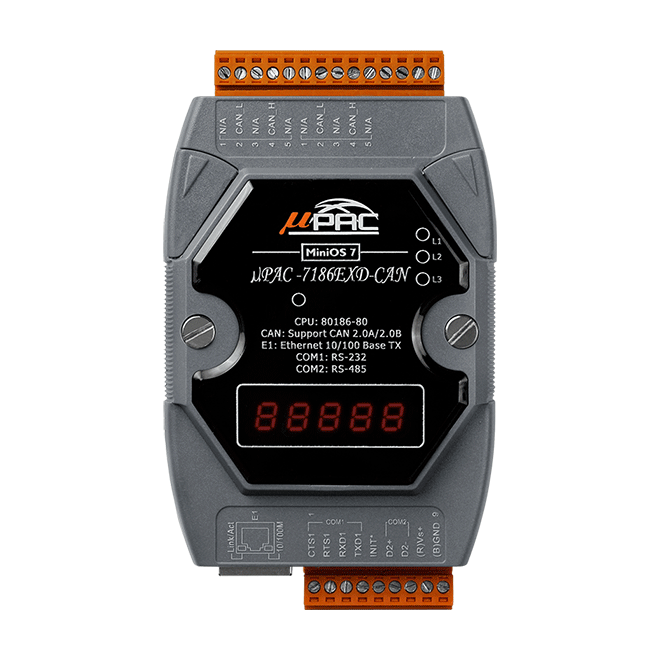

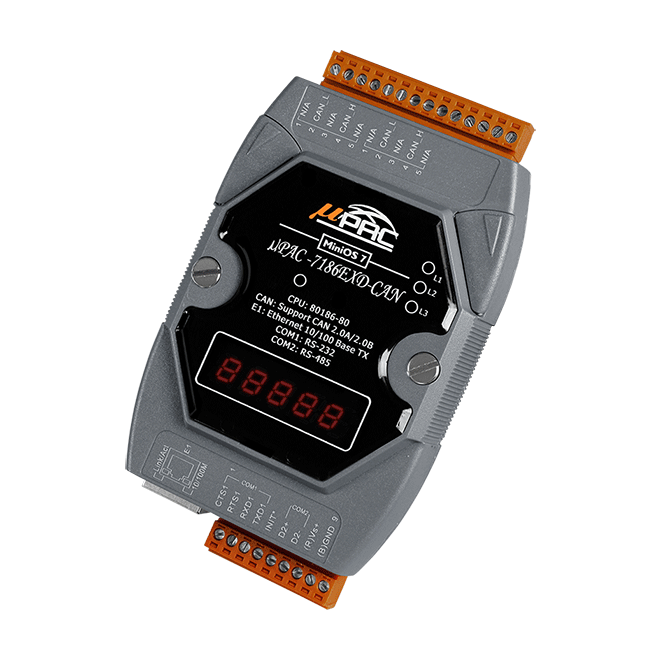

uPAC-7186EXD-CAN-G
uPAC-7186 CAN Programmable Controller
Features
- Compatible with CAN specification 2.0 parts A and B
- Programmable transfer rate up to 1 Mbps
- Jumper select 120Ω terminal resistor for CAN channel
- Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP, ARP
- 10/100BASE-T Ethernet Controller
- Upgradable OS image
- Remote Configuration
- 64-bit hardware unique serial number inside
- COM driver support interrupt & 1KB QUEUE Input & Output buffer
- COM port: COM1, COM2
- Built-in RTC, NVRAM, EEPROM
- Built-in self-tuner ASIC controller on RS-485 port
- Built-in ICP DAS's MiniOS7
- Program download port: COM1 or Ethernet Port (Available Soon)
Introduction

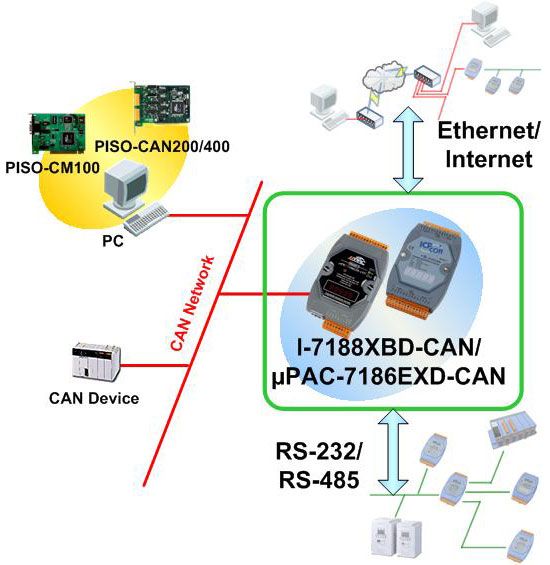

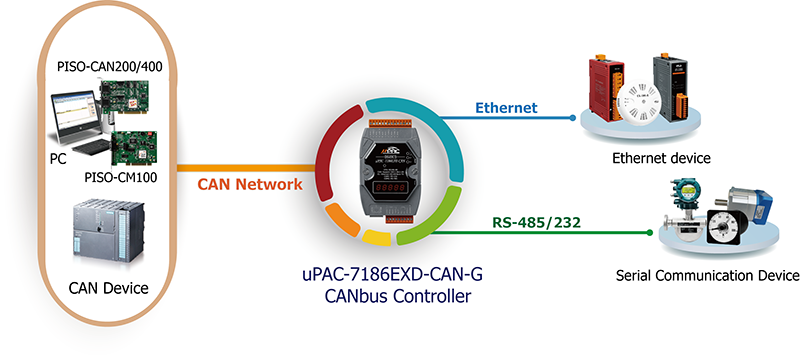

"Embedded Internet" and "Embedded Ethernet" are hot topics today. Nowadays the Ethernet protocol becomes the de-facto standard for local area network. Via Internet, connectivity is occurring everywhere, from home appliances to vending machines to testing equipment to UPS…etc. Using Ethernet for network in industrial area is appealing because the required cabling is already installed. The uPAC-7186EXD-CAN PACs (programmable Automation controller) are powered by 80186-80 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. All of them provide several communication interfaces to adapt to various applications, such as CAN port, RS-232 port, RS-485 port and Ethernet interface. Uses can program their application program flexibly with C/C++ language because of the built-in MiniOS7 operation system. Besides, the uPAC-7186EXD-CAN series PACs have different I/O types for users to match their requirement. For uPAC-7186EXD-CAN , there is no I/O channel. It is useful for transfer the command from differential communication interface. Therefore, the uPAC-7186EXD-CAN series PACs are economic and convenient solution for diversification CAN application.
Applications
- CAN bus communication application
- Industry automation
- Auto detecting CANopen slave devices
- IO monitor
- High speed data acquisition system
- Process monitor and control
- Factory automation
- Laboratory automation
- Communication switching
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|

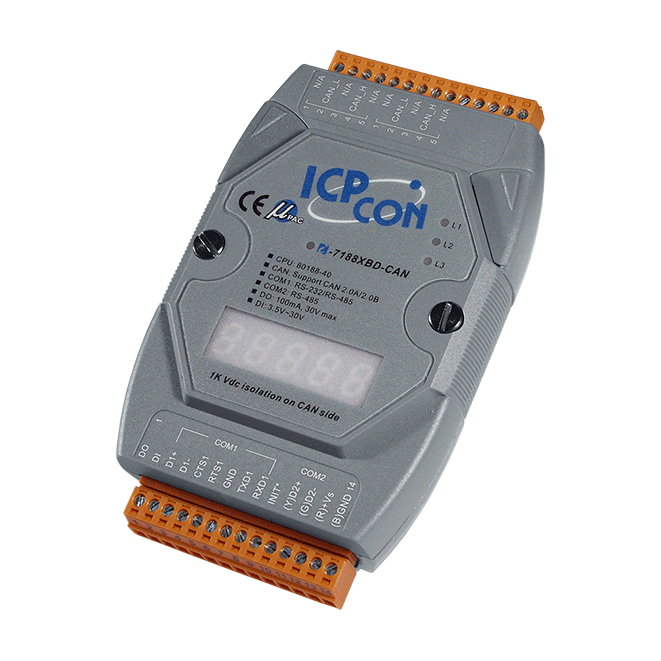

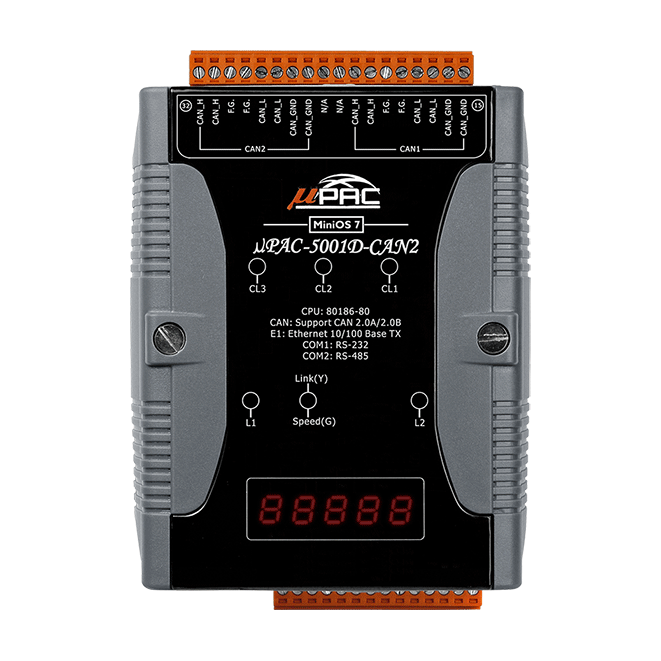

Similar Products
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles |
| Flash | 512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycles |
| NVRAM | 31 bytes (battery backup, data valid for up to 10 years) |
| SRAM | 512 KB |
| Real Time Clock | Yes |
| LED Indicators | |
|---|---|
| Status | 3 x Programmable |
| Ethernet | |
|---|---|
| Ports | 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND)) 1 x RS-485 (Self-turner inside ; 2-pin screwed terminal block (DATA+, DATA-)) |
| Baud Rate | 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
| CAN | |
|---|---|
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 3 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 72 x 122 x 33 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
The software library provides TCP/IP protocols & web server. Support the following protocols.
- TCP, Transmission Control Protocol:
Transport layer with connections, flow control and error correction - UDP, User Datagram Protocol:
Simple connectionless transport layer - IP, Internet Protocol:
The network layer - ICMP, Internet Control Message Protocol:
Part of IP for practical purposes - ARP, Address Resolution Protocol:
Retrieves a host’s network controller’s hardware address, given the host’s Internet address - Reverse Address Resolution Protocol:
Retrieves a host’s Internet address, given the host’s network controller’s
