tZT-P4C4

Tiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router)(Asia Only)
tZT-P4C4
tZT-P4C4
tZT-P4C4
tZT-P4C4
tZT-P4C4
tZT-P4C4

Features

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4/ZigBee 2007 Pro Specifications
  • Wireless Transmission Range up to 300 m
  • Adjustable RF Transmission Output Power
  • GUI Configuration Software (Windows Version)
  • Supports AES-128 Encryption for the Wireless Communication (Passive)
  • Supports ZigBee Repeater Function
  • 4 Digital Input Channels and 4 Digital Output Channels
  • All Digital Input Channels can be used as 16-bit Counters
  • Sink-type Digital Output Channels with Overload Protection
  • Surge and ESD Protection
  • Configurable Power-on Value and Safe Value Settings
  • DIN-Rail Mountable
FCC RoHS WEEE

Introduction

The tZT-P4C4 provides 4 channels for digital input and 4 channels for digital output, each of which features photocouple isolation. The tZT-P4C4 supports sink-type output with short circuit protection, while input is source-type. All input channels can be used a 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. The tZT series products of ICP DAS have the advantage of low cost and low power consumption of ZigBee. Provide wireless communication capability up to 300 meters (LOS) standard transmission distance. Coupled with the dynamic mesh network, users can easily catch DIO data in difficult-to-wire environments.

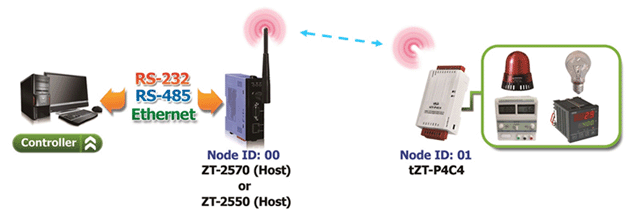

Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES tZT-P4C4     CR DESCRIPTIONTiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router) (RoHS)
(Asia Only)
This combination include other products.

Similar Products

CPU Module
Watchdog Timer Module(1.6seconds),Communication(Programmable)
EMS Protection
EFT (IEC 61000-4-4) ±1 kV for Power
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
LED Indicators
Status 1 x Power and Communication
ZigBee
Antenna 2.4 GHz - PCB Antenna (3dBi, 50Ω)
Protocol Supports DCON and ModBus
Standard ZigBee 2007 Pro
Transmission Power 11dBm (Max. 19dBm)
Transmission Distance (LoS) 300 m
Digital Input/Counter
Channels 4
Type Wet Contact
Sink/Source (NPN/PNP) Source
ON Voltage Level +6 VDC ~ +50 VDC
OFF Voltage Level Max. +5 VDC
Max. Counts 65535 (16-bit)
Frequency 100 Hz
Min. Pulse Width 5 ms
Input Impedance 10 KΩ, 0.66W
Overvoltage Protection ± 70 VDC
Digital Output
Channels 4
Type Isolated Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +3.5 ~ +50 VDC
Load Current 700mA/channel
Overvoltage Protection Yes
Overload Protection Yes
Power on Value Yes, Programmable
Safe Value Yes, Programmable
Power
Consumption 1 W Max.
Mechanical
Dimensions (mm) 98 x 52 x 27 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 95% RH, Non-condensing
