iBPC Series Introduction
The iBPC series is a fanless embedded box PC designed for harsh environments, featuring a wide operating temperature range and wide voltage input capabilities.
The iBPC series offers comprehensive connectivity, including one RS-232 port, one RS-232/485 port, two RS-232/422/485 ports, VGA, HDMI, Audio, dual Gigabit Ethernet LAN ports, and four high-speed USB 2.0 interfaces.
Powered by the Intel Processor, the iBPC series ensures reliable performance. It also features two SMA antenna cutouts, a +10 ~ 30 VDC power input, a power switch, and an optional I/O expansion board (XV-board) for isolated high-protection I/O.
Features
Powerful Hardware Design
- iBPC-4081: Intel® Atom E3845 CPU (with 4 GB on-board memory)
- iBPC-4041: Intel® i3-6100U CPU (with one DDR4 SO-DIMM slot)
- 2 × 10/100/1000M Ethernet and 4 × USB 2.0 Port
- One 2.5” SATA drive bay and One CF card slot
- Ultra-Rugged Construction and Reliable Design
- I/O Expansion Bus for XV-board
- RS-232/RS-422/RS-485 Port
- One Mini PCI Express Card Slot
- Supports VGA and HDMI Dual Display
- Operating Temperature: -25 ~ +70°C
Local I/O Expansion Board
The iBPC series can support one an I/O expansion card, which allow you implement various I/O functions.

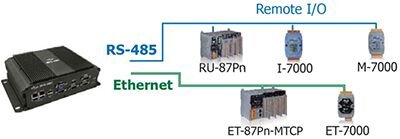

Remote I/O Module and Expansion Unit
With the built-in RS-485 and Ethernet ports, the iBPC series can connect RS-485/Ethernet remote I/O units (RU-87Pn/ET-87Pn) or modules (I-7000/M-7000/ET-7000).

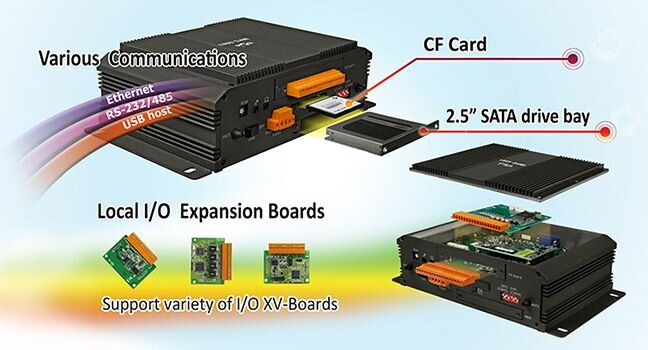

Multiple Communication Interfaces
iBPC series provides different communication interfaces, easy to expand various I/O modules or connect to external devices
- Ethernet
- RS-232/RS-485
- USB Port
- CAN Bus

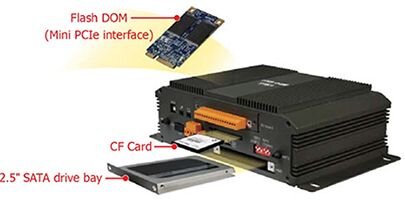

Various Memory Storage Options
iBPC series provides various memory storage options.
- CF card slot: Supports portable data logging applications.
- 2.5” SATA drive bay or mSATA Flash: Rugged storage and shock absorption.
Highly Reliable Under Harsh Environment
Our μPACs operate in a wide range of temperature and humidity
- Operating Temperature: -25 ~ +70 °C
- Storage Temperature: -40 ~ +75 °C
- Humidity 10 ~ 90% RH (non-condensing)
|
|
||||||||||
|
Standard Industrial fanless embedded Box PC
|
||||||||||
| Model | OS Support | CPU | System Memory | Non-Volatile Memory | Storage | VGA/HDMI Resolution |
Ethernet Port |
USB Port | RS-232/ RS-485 |
I/O Expansion |
|---|---|---|---|---|---|---|---|---|---|---|
| iBPC-4041 | Windows 10 IoT Enterprise LTSC | i3-7100U 2.3 GHz,dual core | 1 DDR4 SO-DIMM slot |
128 KB MRAM; 16 KB EEPROM | 128 GB SSD, optional CF card |
1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3)
|
2 | 4 | 4 | XV-board, PCI-E Mini-Slot |
| iBPC-4081-IoT | E3845 1.91 GHz,quad core | 4 GB DDR3 SDRAM | ||||||||
The BoxPC series have a built-in expansion bus. XV-board can be plugged on the Bus to expand I/O channels, COM Ports, memories or hardware functions.
Please click the links below for additional information.
Remote I/O Selection
Ethernet
The available Ethernet I/O devices are ET-7000, ET-7200, ET-87P4/8-MTCP and I-8KE4/8-MTCP. The PAC can access them in Modbus/TCP protocol. A nModbus.dll is provided for C#, VB.net programming.
RS-485
The PACs are equipped with the RS485 COM ports which enable the transmission rate up to a maximum of 115.2 Kbps. The medium for connection is a twisted-pair, multi-drop, 2-wire RS-485 network that can link I-7000, M-7000, RU-87Pn with high profile I-87K modules. To access M-7000, a nModbus.dll is provided for C#, VB.net programming. To access I-7000 and RU-87Pn with high profile I-87K modules, PACSDK is provided for C#, VB.net, VC and VB programming.
FRnet
FRnet is an innovative industrial field bus that has many special features, such as high-speed deterministic I/O control, real I/O synchronization capabilities, non-protocol communication, and easy programming. With a FRnet communication module (I-8172W), the PAC can link FRnet I/O modules to implement high-speed distributed I/O (FR-2000 series). To access I-8172W, a pac_i8172w.dll is provided for C#, VB.net, VC and VB programming.
CAN Bus
The Controller Area Network (CAN) is a serial communication way, which efficiently supports distributed real-time control with a very high level of security. It provides the error-processing mechanisms and concepts of message priority. These features can improve the network reliability and transmission efficiency. Furthermore, CAN supplies the multi-master capabilities, and is especially suited for networking“intelligent” devices as well as sensors and actuators within a system or a sub-system. With I-8123, I-8124, I-87120, the PAC is able to demonstrate every feature of CAN, CANopen, and DeviceNet.
