iXN-7CT5

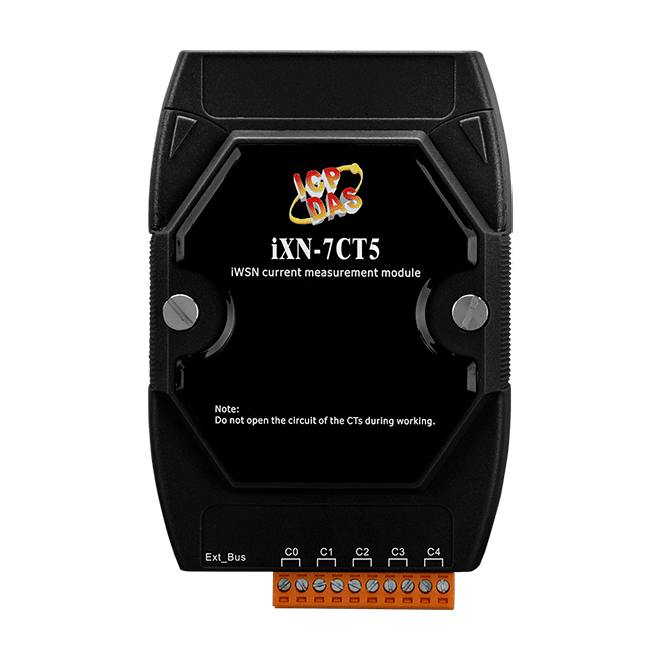

iWSN Extension Module with 5-ch CT Input (Asia Only)
Features
- Supports multi-channel IO expansion.
- Allows connecting different measurement range of CTs in one expansion module.
- Powered by iWSN sensing module.
- Removable screwed terminal block for easy maintenance.
- Offers wall-mount mechanism and magnet for installation.
Introduction
In order to upgrade the flexibility and expansibility of iWSN sensing module, the iXN expansion module is developed to connect to the iWSN sensing module. By means of iXN expansion modules, the iWSN sensing module can offer more current and temperature measurement channels. The iXN expansion module is energized by iWSN sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iXN expansion module provide removable screwed terminal block, wall-mount mechanism and magnet adsorption for installation, and also allows connecting different measurement range of CTs to fit various applications. More kinds of IO interface will be designed to rich the iWSN functionalities and unleash the power of iWSN sensing modules.
Applications
- iWSN sensor and iXN-7CT5
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CT | |
|---|---|
| Split-core CT Channels | 5 |
| Split-core CT Type | Φ16mm (100A), Φ24mm (200A), or Φ36mm (400A); 8 m wire |
| Input Voltage | Maximum 500VAC, 60 Hz |
| Accuracy | ±3% or ±0.3A |
| Power | |
|---|---|
| Consumption | 1-sec Tx Duty: 20 A 10-sec Tx Duty: 12 A 30-sec Tx Duty: 11 A 60-sec Tx Duty: 11A |
| Input Type | iWSN sensing module provides power through the audio line. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 115 x 35 (W x L x H) |
| Installation | DIN-rail or magnet adsorption |
| Environment | |
|---|---|
| Operating Temperature | 0 °C ~ +45 °C |
| Storage Temperature | -20 °C ~ +50 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specification Memo
(*1) The minimum current required in the AC cable for balancing module's power charging and power consumption.
