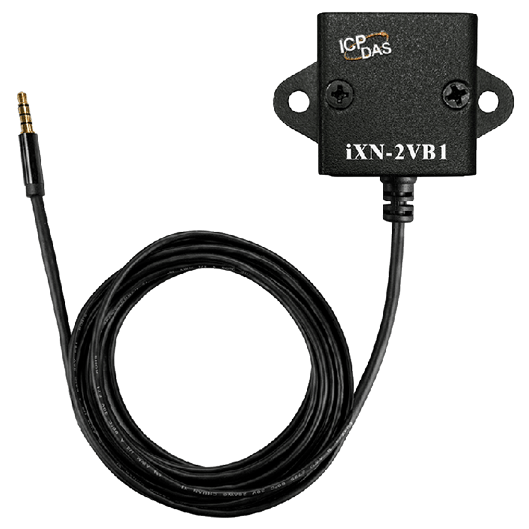

iXN-2VB1
iWSN 1-axis vibration sensing module
Features
- Supports 1-axis vibration measurement
- Sensor type: 1-axis MEMS
- Frequency Range: 10 Hz to 1 kHz
- Vibration Measuring Range: ±8g
- Data Type (g): Uniaxial RMS, Maximum
- Powered by iWSN sensing module
- Offers wall-mount mechanism and magnet for installation
Introduction
In order to upgrade the flexibility and extensibility of WSN environmental sensing module and fit various applications, the iXN-2VB1 is developed to connect to the iWSN environmental sensing module, it can offer 1-axis vibration measurement function. The iXN-2VB1 is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iXN-2VB1 provides wall-mount mechanism and magnet adsorption for installation.
Applications

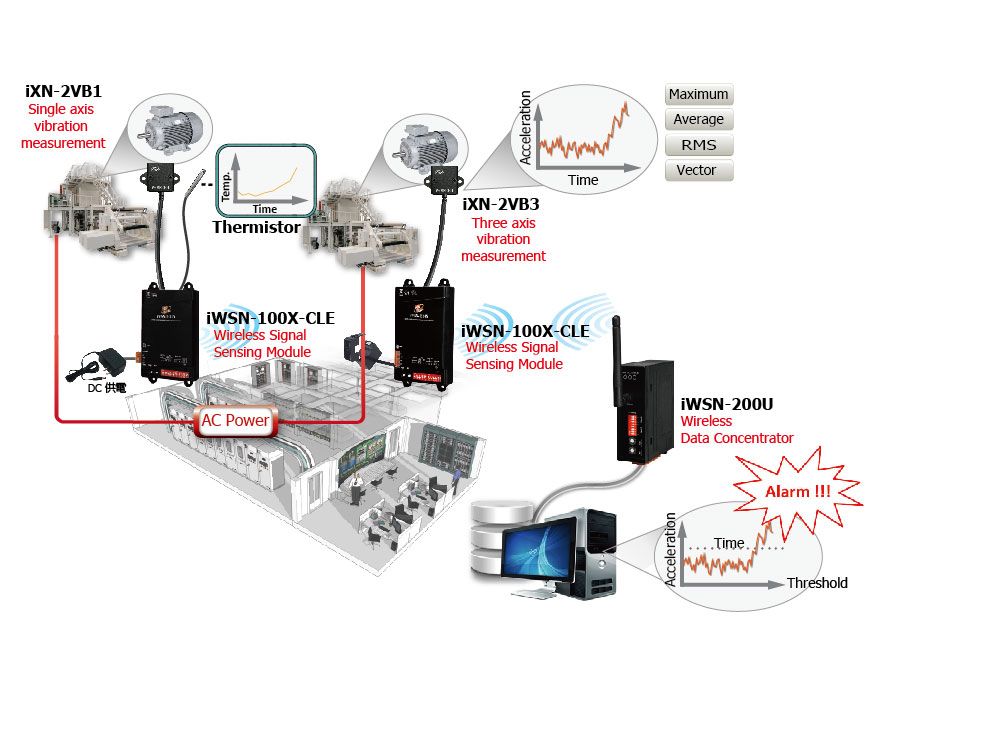

Vibration Monitoring of Rotating Systems
.jpg)
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Vibration Measurement | |
|---|---|
| Sensor Type | 1-axis MEMS |
| Data Type | Uniaxial RMS, Maximum value |
| Amplitude Range | ±8g |
| Frequency Range | 10 Hz to 1 kHz |
| Power | |
|---|---|
| Consumption | 0.15 W |
| Input Type | iWSN environmental sensing module provides power through the audio line. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 51 x 30 x 15 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Cable Length | 150 cm |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
