iWSN-1310-PCT-ME

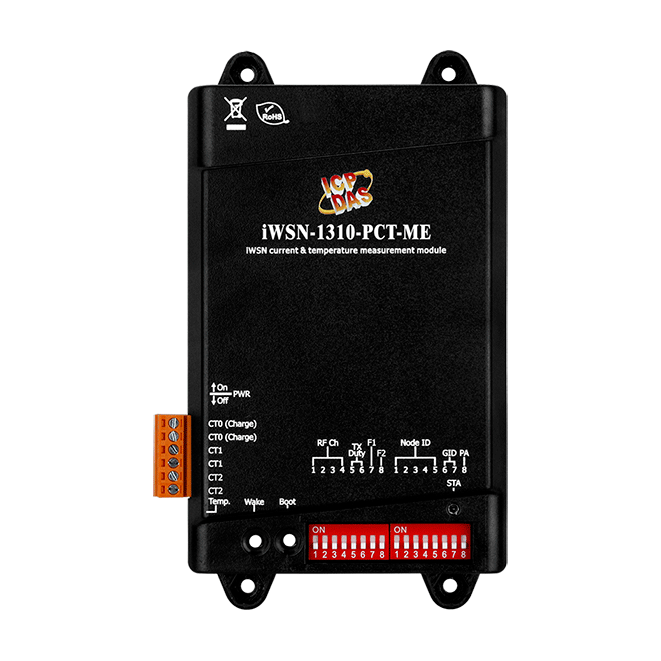

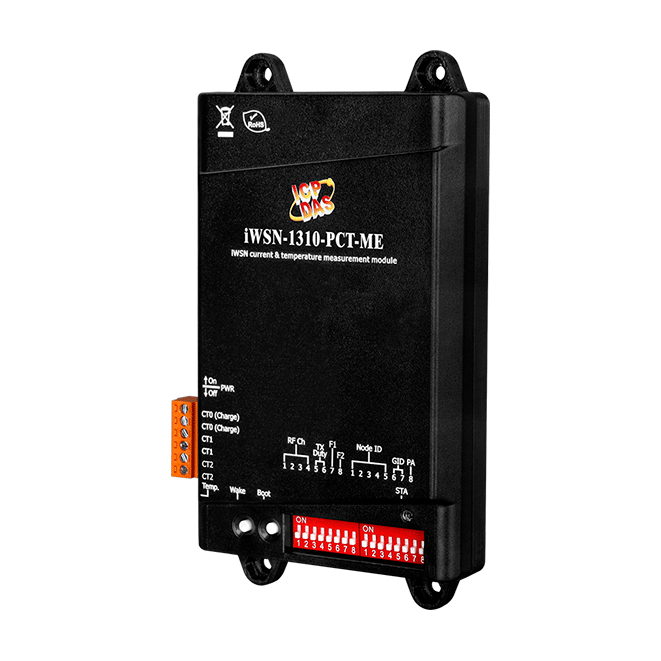

iWSN Current Sensing Module with 3-ch CT Input and 1-ch Thermistor Input (Asia Only)
Features
- Self-powered by built-in a chargeable Li-ion battery.
- Split-core current transformer (CT) for easy installation.
- Energy harvest from the CT induced electricity.
- Uses 433 MHz radio frequency for communication.
- 16 RF Channels and 4 Group ID, consist of maximum 64 RF sub-networks.
- Supports maximum 400A CT.
- Offers wall-mount mechanism and magnet for installation.
Introduction
The iWSN series sensing module is a self-powered module for AC current, digital input and temperature measurement. It can harvest the demand electricity from CT induced current so that there is no necessary to supply the power line for power supply. By means of sub-1G RF communication interface, iWSN series can approach to the real wireless deployment. The diversified IO interface, such as split-core CT, Rogowski coil, NTC thermistor and dry contact DI, provides users more choices for various applications. Considering the maintenance and installation, the iWSN sensing module uses the DIP switch and rotary switch for configuration. Through the flexibility of the expansion interface and good price performance, the iWSN sensing module can be widely used in the application of saving power, big data analysis, and predict maintenance.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | +/- 500 V |
| ESD (IEC 61000-4-2) | +/- 4 kV Contact |
| LED Indicators | |
|---|---|
| Status | 1 x STA |
| RF | |
|---|---|
| Channels | 0 ~ 15 configured by DIP switch |
| Group ID | 0 ~ 3 configured by DIP switch |
| Radio Frequency | 433.1000 ~ 434.6000 MHz |
| Transmission Distance (LoS) | 100 m |
| Node ID | 1 ~ 31 configured by DIP switch |
| Working Duty | 1 sec, 10 sec, 30 sec and 60 sec configured by DIP switch |
| Antenna | |
|---|---|
| Type | 0 dBi Omni directional PCB antenna |
| Power | |
|---|---|
| Battery | Li-ion battery (compliant with UL642) charged by measurement current |
| Mechanical | |
|---|---|
| Dimensions (mm) | 94 x 152 x 21 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Environment | |
|---|---|
| Operating Temperature | °C ~ +45 °C |
| Storage Temperature | -20 °C ~ +50 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specification Memo
(*1) Group transmitters up to 31 units. But if set to 1 second, the number of groups can be up to 5.
(*2) The minimum current required in the AC cable for balancing module's power charging and power consumption.
(*2) The minimum current required in the AC cable for balancing module's power charging and power consumption.
