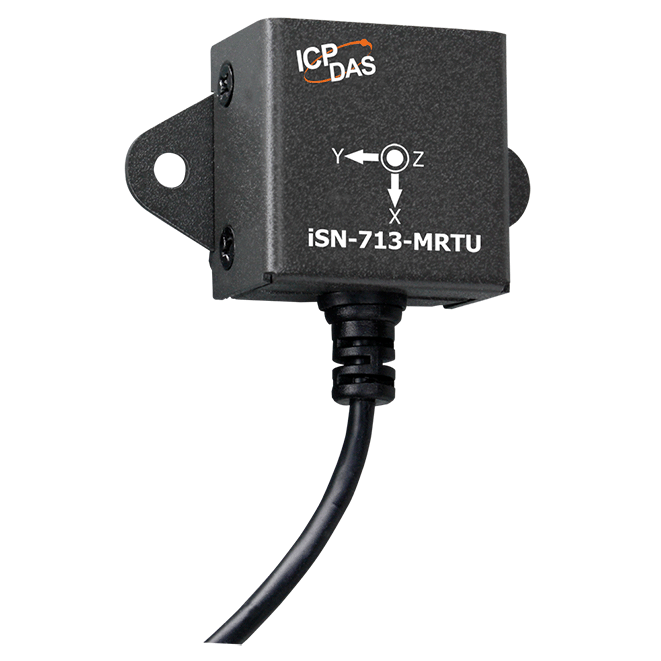

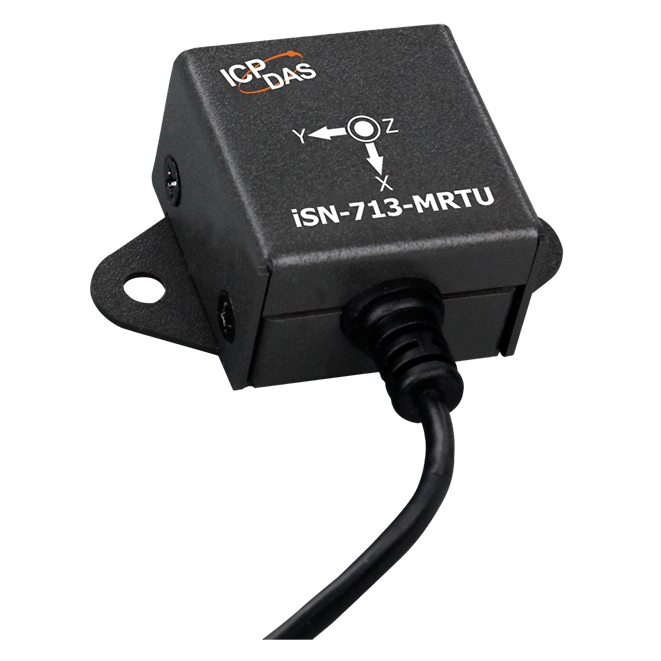

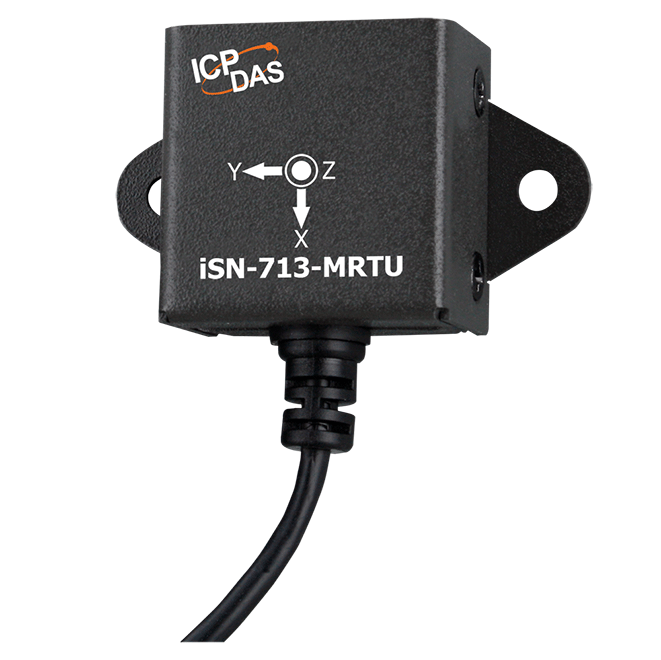

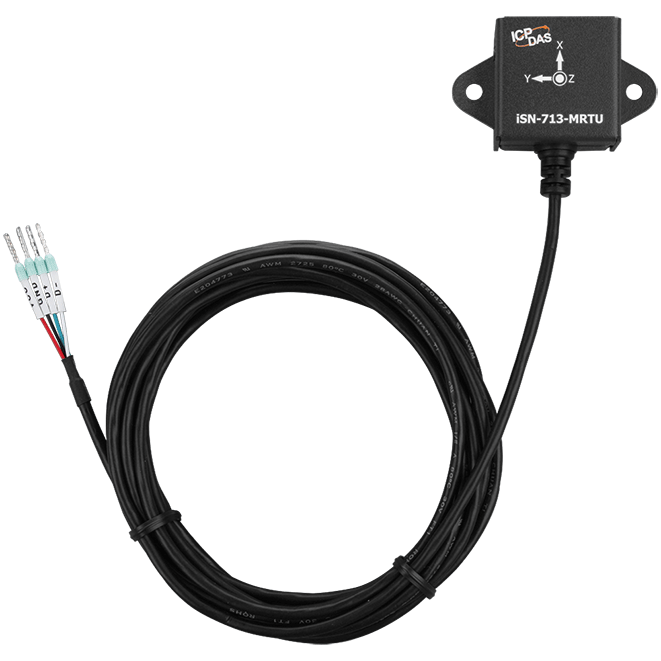

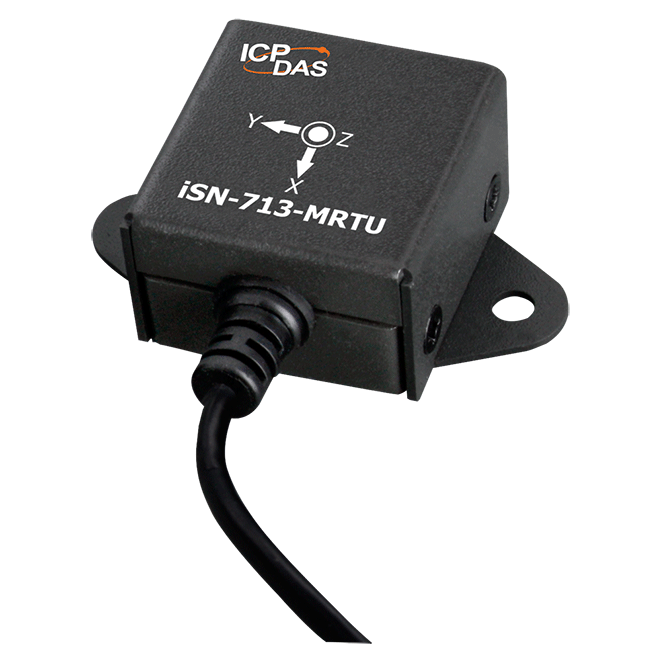

iSN-713-MRTU

Three-axis vibration sensor module (RS-485)
iSN-713-MRTU
iSN-713-MRTU
iSN-713-MRTU
iSN-713-MRTU
iSN-713-MRTU
iSN-713-MRTU
iSN-713-MRTU
iSN-713-MRTU
iSN-713-MRTU
iSN-713-MRTU
iSN-713-MRTU
iSN-713-MRTU

Features

  • 3-axis MEMS vibration measurement
  • Suitable for low frequency vibration measurement
  • Support Modbus RTU slave protocol
  • Data Format:
  - Acceleration: RMS, Maximum, P-P
  - Velocity: RMS
  - Displacement: P-P
  - Crest Factor
  - Top 20 spectrum values(Magnitude/Frequency)
  • Vibration eigenvalues threshold alarm function
CE UKCA FCC RoHS WEEE

Introduction

The iSN-713-MRTU module is a three-axis vibration detection device. It has a built-in MEMS accelerometer, so it can easily realize equipment vibration monitoring. The module supports one RS-485 communication interface with Modbus RTU slave protocol, the user can transmit Modbus RTU commands to read the sensor’s data by RS-485 interface. The iSN-713-MRTU is suitable for real-time vibration detection in critical locations for factory monitoring applications, such as production line equipment, motors, and pumps, etc., where there is a need to monitor any vibration application.

Applications

  • Vibration monitoring system

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES iSN-713-MRTU     CR DESCRIPTIONThree-axis vibration sensor module (RS-485)(RoHS)
This combination include other products.

Similar Products

Vibration Measurement
Axes 3
Sensor Type MEMS
Amplitude Range ±8g
Frequency Range 6 Hz ~ 1 kHz
COM Ports
Ports 1 x RS-485(D+, D-)
Baud Rate 9600, 19200, 38400, 57600, 115200 bps
Protocol Modbus RTU
Power
Input Range +10 ~ +30 VDC
Consumption 0.35 W@24VDC
Mechanical
Dimensions (mm) 51 x 30 x 19 (W x L x H)
Installation Wall-mount or magnet adsorption
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 95% RH, Non-condensing
