iSN-711-MRTU-IP68
IP68 Single-axis vibration sensor module (RS-485)
Features
- 1-axis MEMS vibration measurement
- Suitable for low frequency vibration measurement
- Support Modbus RTU slave protocol
- Data Format:
- Velocity: RMS
- Displacement: P-P
- Crest Factor
- Top 20 spectrum values(Magnitude/Frequency)
- Vibration eigenvalues threshold alarm function
- IP68 enclosure rating
Introduction
The iSN-711-MRTU-IP68 is designed for industrial vibration measurement applications in harsh environments. with the IP68 protection rating, the device has even more protection against water, oil, dust, and much more. It has a built-in MEMS accelerometer, so it can easily realize equipment vibration monitoring. The module supports one RS-485 communication interface with Modbus RTU slave protocol, the user can transmit Modbus RTU commands to read the Vibration measurement data by RS-485 interface. The iSN-711-MRTU-IP68 is suitable for real-time vibration detection in critical locations for factory monitoring applications, such as production line equipment, motors, pumps, etc., where there is a need to monitor any vibration application.

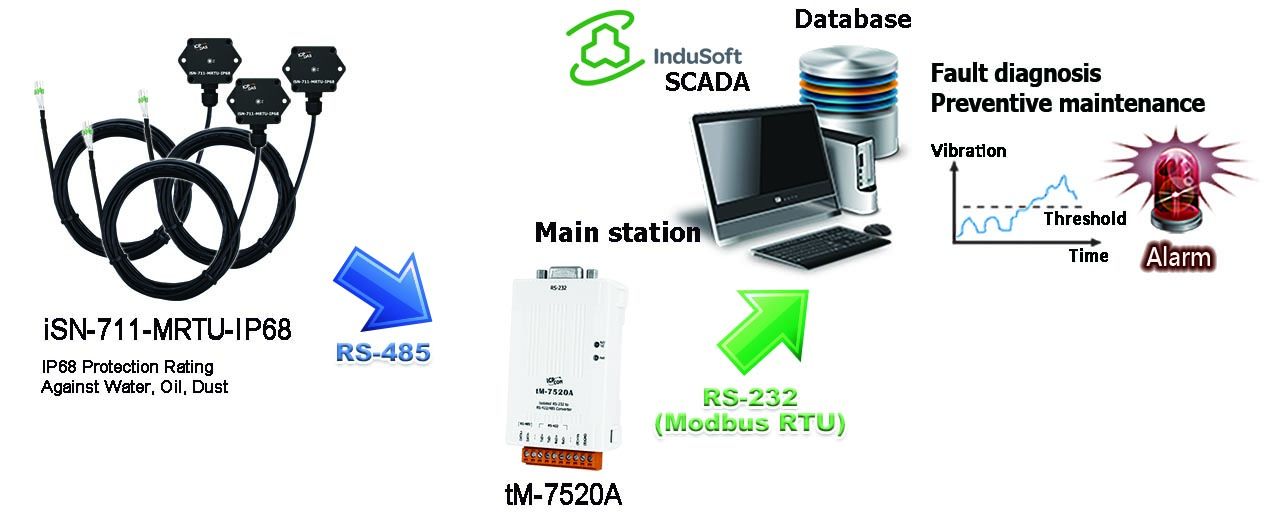

Applications
Vibration monitoring system
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Vibration Measurement | |
|---|---|
| Axes | 1 |
| Sensor Type | MEMS |
| Amplitude Range | ±8g |
| Frequency Range | 6 Hz ~ 1 kHz |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485(D+, D-) |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus RTU |
| Power | |
|---|---|
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.3 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 65 x 44 x 21 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
