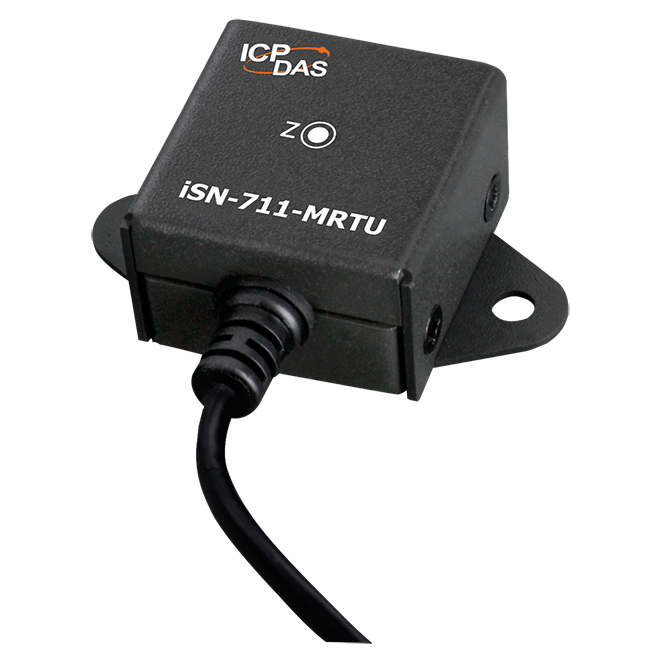

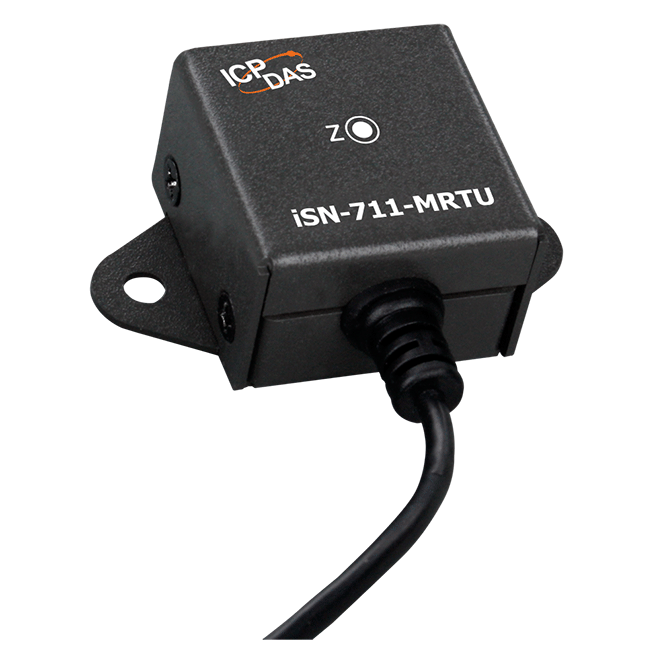

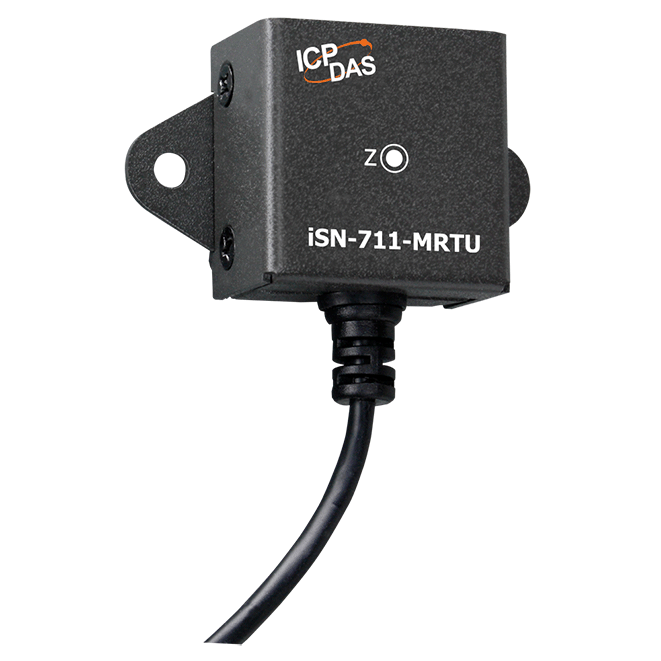

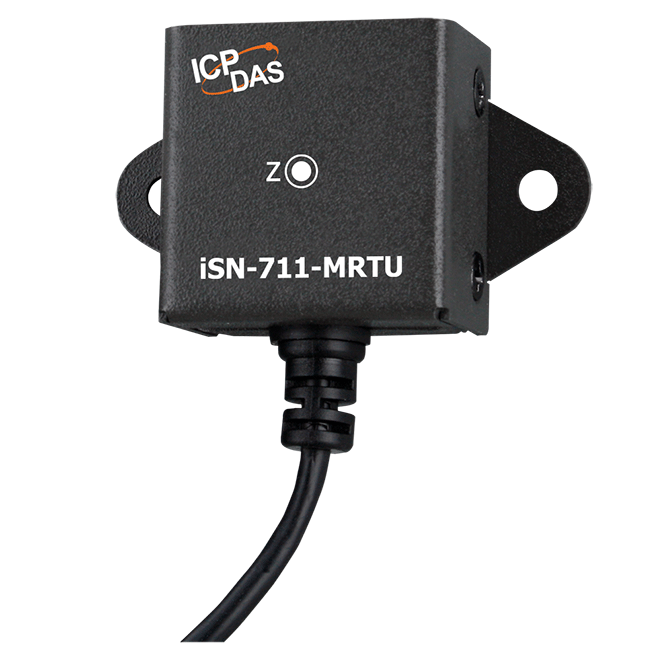

iSN-711-MRTU
Single axis vibration sensor module (RS-485)
Features
- 1-axis MEMS vibration measurement
- Suitable for low frequency vibration measurement
- Support Modbus RTU slave protocol
- Data Format:
- Velocity: RMS
- Displacement: P-P
- Crest Factor
- Top 20 spectrum values(Magnitude/Frequency)
- Vibration eigenvalues threshold alarm function
Introduction
The iSN-711-MRTU module is an intelligent vibration detection device. It has a built-in MEMS accelerometer, so it can easily realize equipment vibration monitoring. The module supports one RS-485 communication interface with Modbus RTU slave protocol, the user can transmit Modbus RTU commands to read the sensor’s data by RS-485 interface. The iSN-711-MRTU is suitable for real-time vibration detection in critical locations for factory monitoring applications, such as production line equipment, motors, and pumps, etc., where there is a need to monitor any vibration application.
Applications
-
Vibration monitoring system
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Vibration Measurement | |
|---|---|
| Axes | 1 |
| Sensor Type | MEMS |
| Amplitude Range | ±8g |
| Frequency Range | 6 Hz ~ 1 kHz |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485(D+, D-) |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus RTU |
| Power | |
|---|---|
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.3 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 51 x 30 x 19 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
