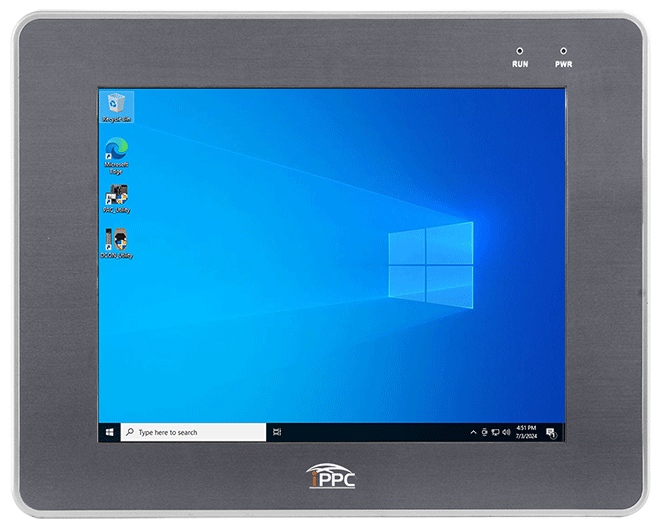

The iPPC-4801-IoT series is a Windows 10 IoT Enterprise-based Panel PC that seamlessly integrates computing, I/O, and display interfaces into a single, compact unit. This all-in-one solution is specifically designed for applications requiring the integration of HMI, data acquisition, and control functionalities.

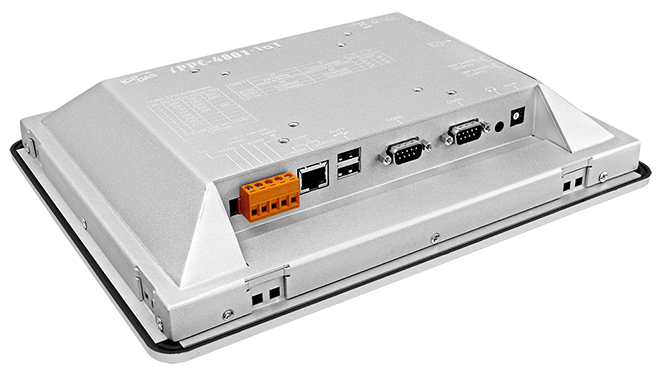

Powered by an Intel Atom E3845 CPU, the system features a high-quality TFT LCD display, and offers a wide range of connectivity options, including dual Gigabit Ethernet, USB ports, RS-232, and RS-485 interfaces, ensuring versatile and reliable performance. The operating system comes pre-installed on a built-in mSATA SSD, with additional storage expandability provided through a Compact Flash slot.
For enhanced flexibility, the system supports remote I/O expansion via Ethernet I/O modules and RS-485 I/O modules. The front panel, designed for panel mount installation, is NEMA 4/IP65 rated, offering robust protection against sprayed water, humidity, and extreme dust conditions. Built to function reliably within a wide ambient temperature range of -20°C to 60°C, its fanless design ensures maximum reliability without any moving parts.
