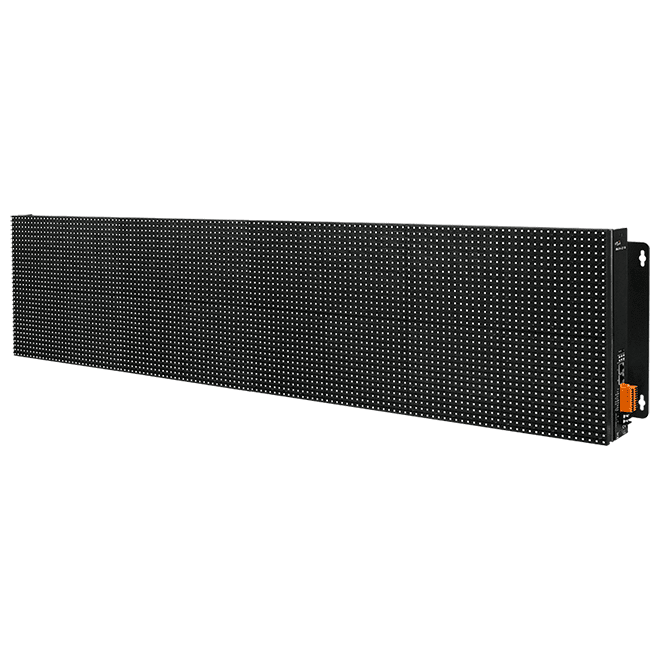

iKAN-200 series

Double-row, Industrial Cybersecurity LED Display with Modbus protocol

Features

Web-based User Interface
7 colors with a text height of 16 cm
Can store up to 128 common messages, and priorities can be set
Integrates both text and variables (up to 168) within a single message
Can be controlled remotely via PLC, PC, or smartphone
Supports Modbus, Modbus TLS, CGI, MQTT, EtherNet/IP and Redfishe protocols
Directly connects to DL/CL series sensor modules and displays real-time monitoring data
Built-in RTC (Real Time Clock )
Supports multiple languages (For complex characters such as Thai, Hindi or Arabic, please contact our sales team.)

Introduction

The iKAN Series is an industrial-grade LED message display designed for PLC applications, offering excellent noise immunity and reliability. In addition to Modbus, it supports Modbus TLS with certificate authentication and EtherNet/IP, providing secure, tamper-resistant communication for industrial control networks and enabling safe integration with PLC, HMI, and SCADA systems.

For modern IIoT applications, iKAN also supports MQTT with TLS encryption and the Redfish management interface, allowing cloud platforms and IT/OT systems to securely exchange data and update display information through authenticated connections.

iKAN stores up to 128 priority-configurable messages and supports secure access through an HTTPS web interface using a PC, smartphone, or tablet. With real-time communication, multilingual support, seven display colors, and enhanced cybersecurity, iKAN is ideal for industrial, financial, telecom, healthcare, transportation, and other security-sensitive applications.

Applications

PLC HMI

The iKAN-208 can be employed as a large HMI with a memory storage of up to 128 messages, each of which can be used to display information generated by a PLC. A range of seven colors is available for the text, including red, blue, yellow, green, light blue, purple and white, which can be used to indicate warnings or alarms, as well as increasing the readability of a message.

Indoor Air Quality Display

The iKAN-208 can be used to read indoor air quality monitoring data from an external DL-302 module, including the carbon dioxide level, temperature and humidity, and then display the information in real-time, making it suitable for commercial and public buildings, such as schools and museums, as well as for retail, leisure and healthcare facilities where personnel are required to stand for long periods of time, and where the indoor air quality is required to be monitored and displayed at the entrance or lobby of the building.

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES iKAN-208 CR	DESCRIPTIONDouble-row, 8/4-Character/Row Industrial Cybersecurity LED Display with Modbus protocol (RoHS)
PRODUCT SERIES iKAN-216 CR	DESCRIPTIONDouble-row, 16/8-Character/Row Industrial Cybersecurity LED Display with Modbus protocol (RoHS)
PRODUCT SERIES iKAN-224 CR	DESCRIPTIONDouble-row, 24/12-Character/Row Industrial Cybersecurity LED Display with Modbus protocol (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Display
Size	iKAN-208: Row: 2，ASCII Characters: 8，Unicode Characters: 4 iKAN-216: Row: 2，ASCII Characters: 16，Unicode Characters: 8 iKAN-224: Row: 2，ASCII Characters: 24，Unicode Characters: 12
Real Time Clock	Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year
Character Sets	16 x 16 Unicode or 8 x 16 ASCII
Color	Red, Blue, Yellow, Green, Light Blue, Purple or White
Data Pool	40 Coil values, 64 Float values, and 64 Integer values
Message Pool	128 common messages with user-defined priority levels, Up to 20 Unicode characters or 50 ASCII characters each * For complex characters such as Thai, Hindi or Arabic, please contact our sales team.

Ethernet

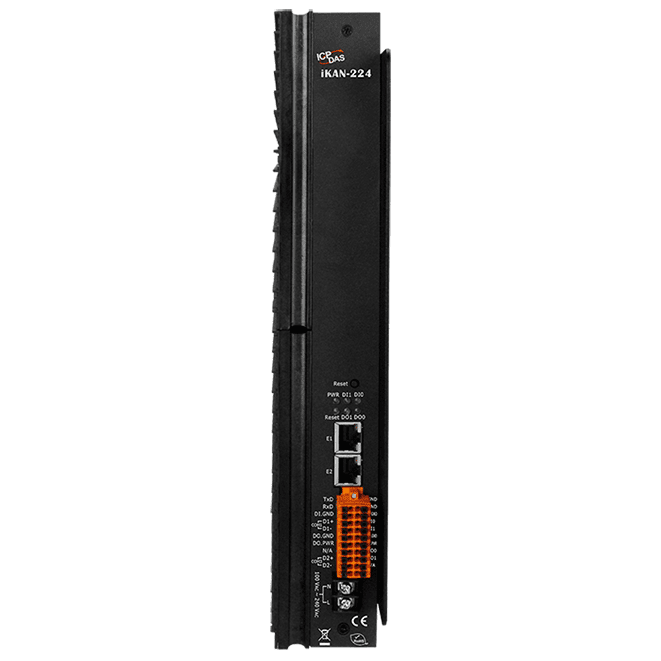

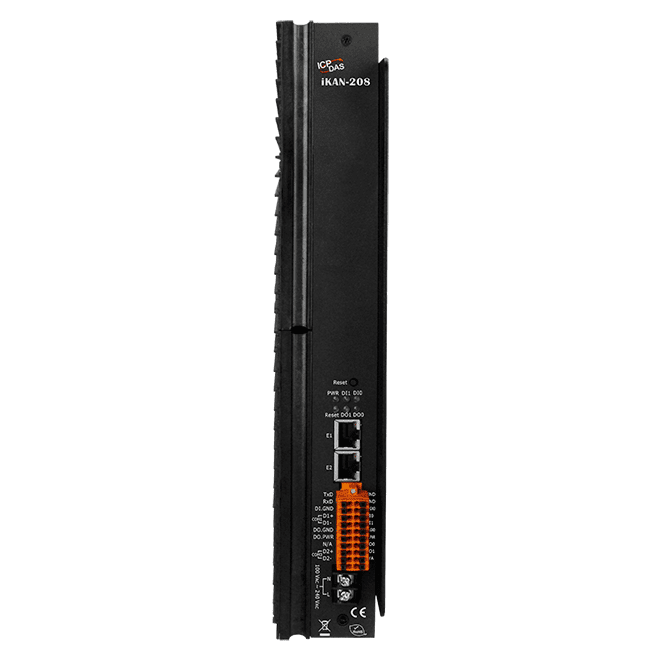

Ports	2 × RJ-45, 10/100 Base-TX, Switch Ports
Protocol	Modbus Master/Slave, Modbus TCP Master/Slave, GCI, HTTP/HTTPS, MQTT, EtherNet/IP and Redfish
Configuration	Web-based User Interface

COM Ports
Ports	2 × RS-485
Baud Rate	1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Format	N81, E81, O81
Protocol	Modbus RTU Master/Slave

Power
Input Range	100 ~ 240 VAC
Consumption	iKAN-208: 0.5 A @ AC 120 V iKAN-216: 0.6 A @ AC 120 V iKAN-224: 0.7 A @ AC 120 V

Mechanical
Casing	Aluminum
Dimensions (mm)	iKAN-208: 707 x 320 x 53 (W x L x H) iKAN-216: 1347 x 320 x 53 (W x L x H) iKAN-224: 1987 x 320 x 53 (W x L x H)
Installation	Wall mounting
Weight	iKAN-208: 4 Kg iKAN-216: 8 Kg iKAN-224: 12 Kg

Environment
Operating Temperature	0 ~ +60°C
Storage Temperature	-10 ~ +75°C
Humidity	10 ~ 90% RH, Non-condensing
