iKAN LED Display Introduction
The iKAN series is a family of industrial Modbus LED display devices that deliver industrial-grade anti-noise capabilities as well as reliability and stability. ASCII characters and Unicode characters, which can be used to display multiple languages, are supported for presenting formatted messages. Support for the popular Modbus industrial protocol is provided meaning that iKAN display devices can be easily integrated into existing PLC and SCADA environments. The iKAN series allows data written from a PC or a PLC to be displayed in a formatted message in real-time. Seven colors are available for the text, which can be used to indicate different degrees of importance of the message, as well as significantly increase the readability of the message in an industrial arena.
Messages can be edited using a standard web browser, such as Google Chrome, Firefox, or IE, etc., on a PC, mobile device, or smartphone without any limitations related to specific control tools or programs. The display of individual messages can also be remotely enabled or disabled as necessary using the same standard web browser. Each model in the iKAN series provides storage space for up to 128 messages (user-defined priority). In addition, 168 user-defined variables allow data on a PC, PLC or other controller to be automatically integrated into a message and then displayed. With an open user interface and the ability to display real-time data, the iKAN series of display devices can be installed in a variety of indoor spaces, including shopping malls, railway stations, and industrial areas.
Web-based User Interface
Message Editing
Message Priority

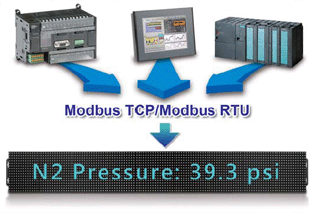

Support for the Modbus TCP/Modbus RTU Protocol
Integer-type variables enable data mapping
Boolean (Coil) variable to text mapping
Applications
PLC HMI
Indoor Air Quality Display
|
||||||||
Modbus LED Display (RoHS Compliant) |
||||||||
Model | Mechanical | Display | Communication Interfaces | |||||
---|---|---|---|---|---|---|---|---|
Dimensions (mm) (W × H × D) |
Weight | Housing Material |
Installation | Message Pool | Ethernet | COM Ports | ||
iKAN-116 | 1346 × 160 × 49 | 4 Kg | Aluminum | Wall mountin |
128 common messages (Allows you to set Priority) Up to 20 Unicode characters or 50 ASCII characters each |
2 × RJ-45, 10/100 Base-TX |
Modbus TCP Slave Max. 8 connections |
RS-485 × 2 |
iKAN-116S | 834 × 115 × 37.5 | 2 Kg | ||||||
iKAN-124 | 1986 × 160 × 49 | 4.6 Kg | ||||||
iKAN-124S | 1218 × 115 × 37.5 | 2.5 Kg | ||||||
iKAN-208 | 707 x 320 x 50 | 4 Kg | ||||||
iKAN-216 | 1346 × 320 × 49 | 8 Kg | ||||||
iKAN-224 | 1986 × 320 × 49 | 12 Kg | ||||||
|
||||||||
Modbus LED Display (Non RoHS Compliant) |
||||||||
Model | Mechanical | Display | Communication Interfaces | |||||
---|---|---|---|---|---|---|---|---|
Dimensions (mm) (W × H × D) |
Weight | Housing Material |
Installation | Message Pool | Ethernet | COM Ports | ||
iKAN-116A | 1346 × 160 × 49 | 4 Kg | Aluminum | Wall mountin |
128 common messages (Allows you to set Priority) Up to 20 Unicode characters or 50 ASCII characters each |
2 × RJ-45, 10/100 Base-TX |
Modbus TCP Slave Max. 8 connections |
RS-485 × 2 |
iKAN-124A | 1986 × 160 × 49 | 4.6 Kg | ||||||
iKAN-208A | 707 x 320 x 50 | 4 Kg | ||||||
iKAN-216A | 1346 × 320 × 49 | 8 Kg | ||||||
iKAN-224A | 1986 × 320 × 49 | 12 Kg | ||||||
|
||||||||
Modbus LED Display (Call Sale) (RoHS Compliant) |
||||||||
Model | Mechanical | Display | Communication Interfaces | |||||
---|---|---|---|---|---|---|---|---|
Dimensions (mm) (W × H × D) |
Weight | Housing Material |
Installation | Message Pool | Ethernet | COM Ports | ||
iKAN-116-IP65 | 1346 × 160 × 49 | 4 Kg | Aluminum | Wall mountin |
128 common messages (Allows you to set Priority) Up to 20 Unicode characters or 50 ASCII characters each |
2 × RJ-45, 10/100 Base-TX |
Modbus TCP Slave Max. 8 connections |
RS-485 × 2 |
iKAN-124-IP65 | 1986 × 160 × 49 | 4.6 Kg | ||||||
iKAN-208-IP65 | 707 x 320 x 50 | 4 Kg | ||||||
iKAN-216-IP65 | 1346 × 320 × 49 | 8 Kg | ||||||
iKAN-224-IP65 | 1986 × 320 × 49 | 12 Kg | ||||||
|
||||||||
Modbus LED Display (Call Sale) (Non RoHS Compliant) |
||||||||
Model | Mechanical | Display | Communication Interfaces | |||||
---|---|---|---|---|---|---|---|---|
Dimensions (mm) (W × H × D) |
Weight | Housing Material |
Installation | Message Pool | Ethernet | COM Ports | ||
iKAN-116A-IP65 | 1346 × 160 × 49 | 4 Kg | Aluminum | Wall mountin |
128 common messages (Allows you to set Priority) Up to 20 Unicode characters or 50 ASCII characters each |
2 × RJ-45, 10/100 Base-TX |
Modbus TCP Slave Max. 8 connections |
RS-485 × 2 |
iKAN-124A-IP65 | 1986 × 160 × 49 | 4.6 Kg | ||||||
iKAN-208A-IP65 | 707 x 320 x 50 | 4 Kg | ||||||
iKAN-216A-IP65 | 1346 × 320 × 49 | 8 Kg | ||||||
iKAN-224A-IP65 | 1986 × 320 × 49 | 12 Kg | ||||||
|
|||||||||
PROFIBUS LED Display (Call Sale) |
|||||||||
Model | Mechanical | Display | Communication Interfaces | ||||||
---|---|---|---|---|---|---|---|---|---|
Dimensions (mm) (W × H × D) |
Weight | Housing Material |
Installation | Message Pool | Ethernet | COM Ports | PROFIBUS | ||
iKAN-116-PFB | 1347 × 160 × 73 | 4 Kg | Aluminum | Wall mountin |
128 common |
2 × |
Modbus |
RS-485 x 1: PROFIBUS x 1 |
Baud Rate: 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M; Protocol: DP-V0 |
iKAN-116S-PFB | 834 × 130 × 54 | 2 Kg | |||||||
iKAN-124-PFB | 1987 × 160 × 73 | 4.6 Kg | |||||||
iKAN-124S-PFB | 1218 × 130 × 54 | 2.5 Kg | |||||||
|
|||||||||
PROFIBUS LED Display (Call Sale) |
|||||||||
Model | Mechanical | Display | Communication Interfaces | ||||||
---|---|---|---|---|---|---|---|---|---|
Dimensions (mm) (W × H × D) |
Weight | Housing Material |
Installation | Message Pool | Ethernet | COM Ports | PROFIBUS | ||
iKAN-116-PFB-IP65 | 1346 × 160 × 49 | 4 Kg | Aluminum | Wall mountin |
128 common |
2 × |
Modbus |
RS-485 x 1: PROFIBUS x 1 |
Baud Rate: 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M; Protocol: DP-V0 |
iKAN-124-PFB-IP65 | 1986 × 160 × 49 | 4.6 Kg | |||||||
|
|||||||||
CANopen LED Display (Call Sale) |
|||||||||
Model | Mechanical | Display | Communication Interfaces | ||||||
---|---|---|---|---|---|---|---|---|---|
Dimensions (mm) (W × H × D) |
Weight | Housing Material |
Installation | Message Pool | Ethernet | COM Ports | CANopen | ||
iKAN-116-CPS | 1346 × 160 × 49 | 4 Kg | Aluminum | Wall mountin |
128 common |
2 × |
Modbus |
RS-485 x 1; CAN x 1 |
Baud Rate: 10 k, 20 k, 50 k,125 k, 250 k, 500 k, 800 k, 1 Mbps; Protocol: CANopen DS-301 ver4.02, DS-401 ver2.1 |
iKAN-116S-CPS | 834 × 115 × 37.5 | 2 Kg | |||||||
iKAN-124-CPS | 1986 × 160 × 49 | 4.6 Kg | |||||||
iKAN-124S-CPS | 1218 × 115 × 37.5 | 2.5 Kg | |||||||
|
|||||||||
CANopen LED Display (Call Sale) |
|||||||||
Model | Mechanical | Display | Communication Interfaces | ||||||
---|---|---|---|---|---|---|---|---|---|
Dimensions (mm) (W × H × D) |
Weight | Housing Material |
Installation | Message Pool | Ethernet | COM Ports | PROFIBUS | ||
iKAN-116-CPS-IP65 | 1346 × 160 × 49 | 4 Kg | Aluminum | Wall mountin |
128 common |
2 × |
Modbus |
RS-485 x 1; CAN x 1 |
Baud Rate: 10 k, 20 k, 50 k,125 k, 250 k, 500 k, 800 k, 1 Mbps; Protocol: CANopen DS-301 ver4.02, DS-401 ver2.1 |
iKAN-124-CPS-IP65 | 1986 × 160 × 49 | 4.6 Kg | |||||||
