e-PoE204
2 port 10/100/1000 Mbps PoE (PSE) Ethernet Expansion Module
Features
- High-Speed Transmission
- Up to 1 Gb/s per port
- Supports Jumbo Frame and Link Aggregation
- Ideal for high-volume image data transfer
- Precise Synchronization
- Supports IEEE 1588 (PTP)
- Enables synchronized multi-camera acquisition
- Smart PoE Power Management
- Auto-detection of IEEE 802.3af/at powered devices
- Power prioritization mechanism
- SDK support for PoE on/off control and status monitoring
- Comprehensive Protection
- Protection against under-voltage, over-voltage, over-current, and over-temperature
Introduction
e-PoE204 is an industrial-grade e-Bus x4 expansion module (similar to PCIe x4) designed for PAC systems (AXP-9000, EMP-9000, ALX-9000 series). It provides 2 Gigabit PoE Ethernet ports. Supporting IEEE 802.3af/at (PoE), each port delivers up to 30W power (requires external 24 VDC), enabling both data transmission and power supply over a single cable—reducing wiring complexity and maintenance cost.
Applications

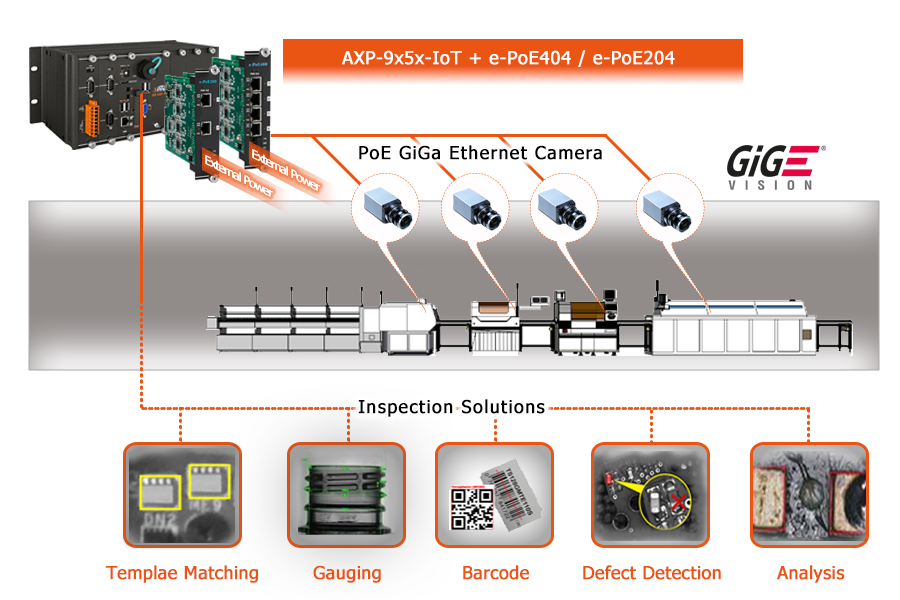

The e-PoE204 module is suitable for the frame grab functions in a wide variety of applications, including:
- Machine Vision Inspection
- Automated Optical Inspection
- Surveillance and Security
- Medical Imaging
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| Utility | PoE Power Management Utility (Voltage, current power monitor, PoE Power On/Off) |
| SDK | Power Management SDK, Windows 10 IoT OS compatible, VC++ dll |
| Bus Interface | |
|---|---|
| Type | e-Busx4 (4.0 GB/s total bandwidth) |
| LED Indicators | |
|---|---|
| Status | 1 x PoE Power, 1 x System Power, 2 x Link Status, 2 x PoE Status |
| PoE Technology | |
|---|---|
| PoE Protectioin | Yes, undervoltage, overvoltage, overcurrent, overheating, and budget overages (Setting by software) |
| PoE Compliance | IEEE802.3af compliance, IEEE802.3at compliance |
| PoE Power | Up to 30 watts per port (Total 120 watts) |
| PoE Operation | Automatic detection and power management |
| PoE Pin Assignments | B Type V+(4、5)、V- (7、8) |
| PoE Disconnect Mode | DC Disconnect |
| PoE Voltage | +53 VDC |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, Intel I211AT Controller, 10/100/1000 Mbps |
| Protocol | IEEE 1588 |
| Jumbo Frame | 9 KB |
| Link Aggregation | Yes |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | 24 ~ 52 VDC Input |
| Consumption | 0.1 A @ 24 VDC without PD loading, 3A @ 24VDC with PD full loading (30W per ports) 0.05 A @ 48 VDC without PD loading, 1.5A @ 48VDC with PD full loading (30W per ports) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 134 x 136 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90 % RH, non-condensing |
