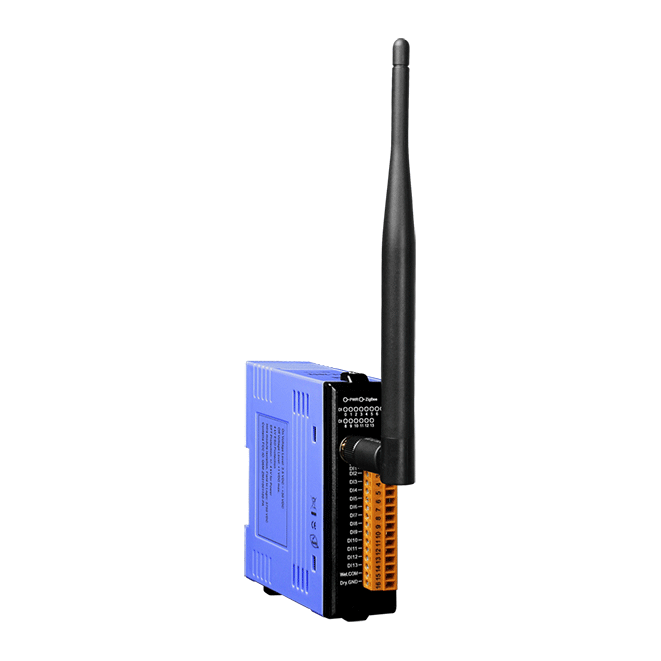

ZT-2043-IOG

ZigBee I/O Group (Pair-connection) Module with 14-ch Isolated DO (Full-function)(Asia Only)
ZT-2043-IOG
ZT-2043-IOG
ZT-2043-IOG
ZT-2043-IOG
ZT-2043-IOG
ZT-2043-IOG
ZT-2043-IOG
ZT-2043-IOG
ZT-2043-IOG
ZT-2043-IOG

Features

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4 / ZigBee Specifications
  • Supports AES-128 Encryption for the Wireless Communication
  • Wireless Transmission Range up to 700 m (Default)
  • Adjustable RF Transmission Output Power
  • Physical Pair-connection Channels of 14 Digital Output
  • 280 Logical Pair-connection Channels Supported
  • Configurable I/O Pairing Relationship
  • DO Safe Value Setting for Wireless Disconnection Monitoring
  • Surge and ESD Protection
  • DIN-Rail Mounting
FCC RoHS WEEE

Introduction

ZT-20xx-IOG series (referred to as ZT-IOG) is a series of ZigBee wireless communication module with Digital Input and Digital Output channels. The “IOG” in the ZT-IOG is the abbreviation for the I/O Group and means the multi-to-multi Pair-connection I/O modules. The ZT-2043-IOG module is one of the ZT-20xx-IOG series that provides 14 digital output channels. User can easily configure it as either a ZigBee Coordinator or a ZigBee Router via the external switches. The ZigBee Coordinator will serve as a message processing and distribution center. In other words, as long as any DI of any ZT-IOG module changes its channel state, it will immediately trigger an event and upload it to the ZigBee Coordinator for I/O updating logic calculations to determine the DO output states of the ZT-IOG system. Then, the ZigBee Coordinator will broadcast a message periodically to all ZT-IOG ZigBee Router modules for synchronizing all DO channel states to achieve the multi-to-multi I/O Pair-connection function.

Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES ZT-2043-IOG     CR DESCRIPTIONZigBee I/O Group (Pair-connection) Module with 14-ch Isolated DO (Full-function) (RoHS)
(Asia Only)
This combination include other products.

Similar Products

Isolation
Intra-module Isolation 3750 VDC
LED Indicators
Status 1 x Power and Communication
14 x Digital Output
ZigBee
Antenna 2.4 GHz, 5 Omni-Directional
Max. Slaves 255
Standard ZigBee 2007 Pro
Transmission Power 11 dBm (Default, FCC Certificated); Max. 19 dBm
Transmission Distance (LoS) 700 m (Typical)
Digital Output
Channels 14 (Sink)
Type Isolated Open Collector
Load Voltage +5 VDC ~ +50 VDC
Load Current 700 mA/channel
Overload Protection 1.1 A
Power
Input Range +10 VDC ~ +30 VDC
Consumption Max. 0.84 W
Mechanical
Dimensions (mm) 33 x 87 x 110 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing
