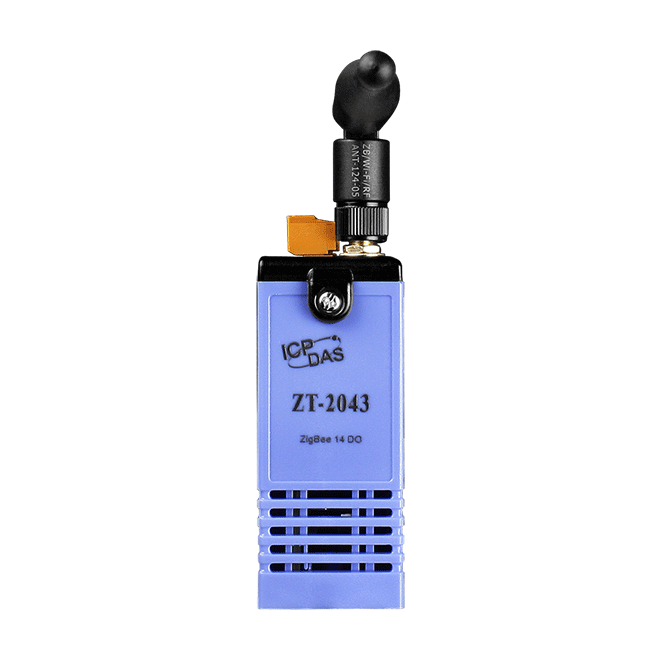

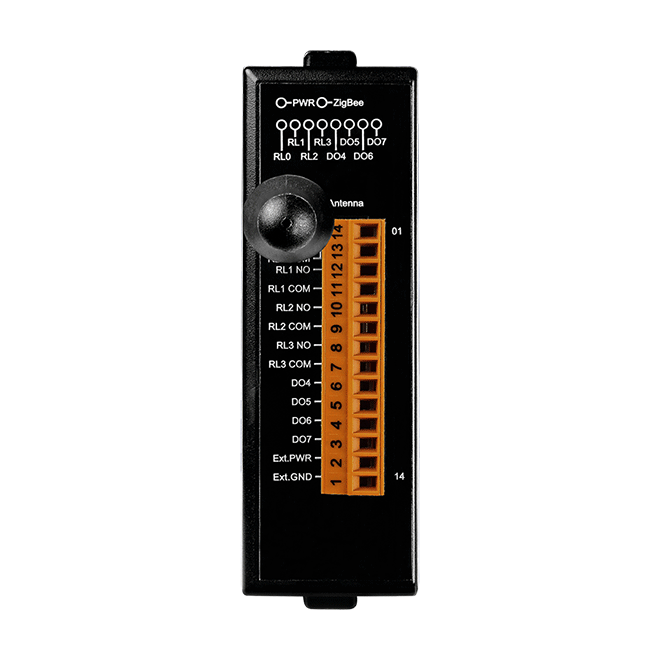

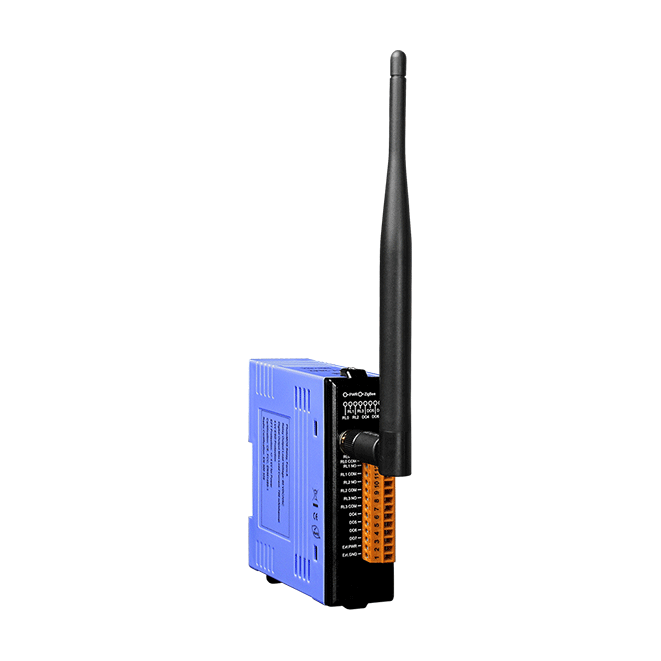

ZT-2043

ZigBee Wireless 14-ch Isolated DO Module (ZigBee Router) (Asia Only)
ZT-2043
ZT-2043
ZT-2043
ZT-2043
ZT-2043
ZT-2043
ZT-2043
ZT-2043
ZT-2043
ZT-2043

Features

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G/ ZigBee Specifications
  • Wireless Transmission Range up to 700 m (Default)
  • Adjustable RF Transmission Output Power
  • External DIP and Rotary Switches for easy Configuration
  • GUI Configuration Software (Windows Version)
  • Supports AES-128 Encryption for the Wireless Communication (Passive)
  • Supports ZigBee Repeater Function
  • 14 Digital Output Channels for Open Collector
  • Short Circuit Protection
  • Surge and ESD Protection
  • Configurable Power-on Value and Safe Value Settings
  • DIN-Rail Mounting
FCC RoHS WEEE

Introduction

The ZT-2043 offers 14 sink type digital output channels with short circuit protection. All channels feature photo-couple isolation. The ZT-2043 includes 14 LED indicators to display the DO channel status. 4 kV ESD protection and 3750 VDC intra-module isolation are the standard. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.

Applications

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES ZT-2043     CR DESCRIPTIONZigBee Wireless 14-ch Isolated DO Module (ZigBee Router) (RoHS)
(Asia Only)
This combination include other products.

Similar Products

CPU Module
Watchdog Timer Yes, Module (1.6 Seconds), Communication (Programmable)
Isolation
Intra-module Isolation 3750 VDC
EMS Protection
EFT (IEC 61000-4-4) 4 kV for Power
ESD (IEC 61000-4-2) 4 kV Contact for Power Line, Communication Line
and each Channel, 8 kV Air for Random Point
Surge (IEC 61000-4-5) 3 kV for Power
LED Indicators
Status 1 x Power and Communication
14 x Digital Output
ZigBee
Antenna 2.4 GHz,5 dBi Omni directional
Certifications FCC/FCC ID, CE (RED excluded)
Max. Slaves 255
Protocol Supports DCON and Modbus RTU Protocols
Standard ZigBee 2007 Pro
Transmission Power 11 dBm (FCC Certificated) (Max. 19 dBm)
Transmission Distance (LoS) 700 m (Typical)
Digital Output
Channels 14 (Sink)
Type Isolated Open Collector
Load Voltage +5 VDC ~ +50 VDC
Load Current 700 mA/channel
Overload Protection 1.1 A
Power on Value Yes
Safe Value Yes
Power
Input Range +10 VDC ~ +30 VDC
Consumption Max. 0.84 W
Mechanical
Dimensions (mm) 33 x 87 x 110 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing
