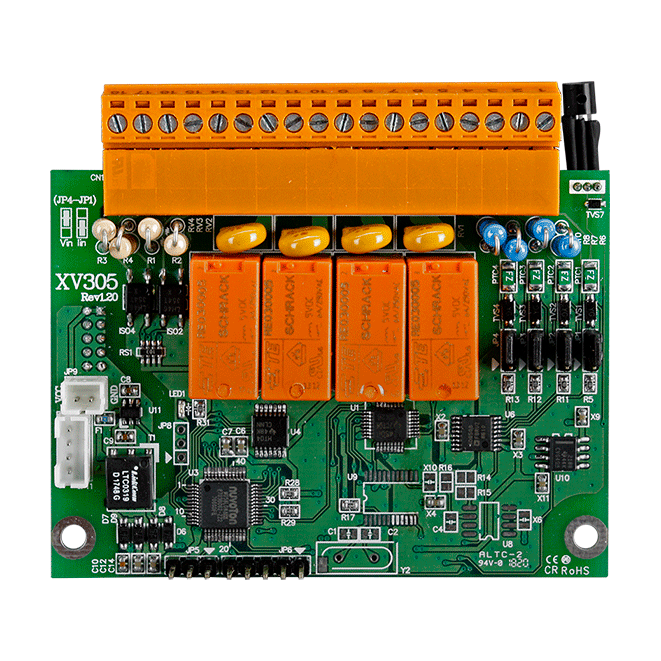

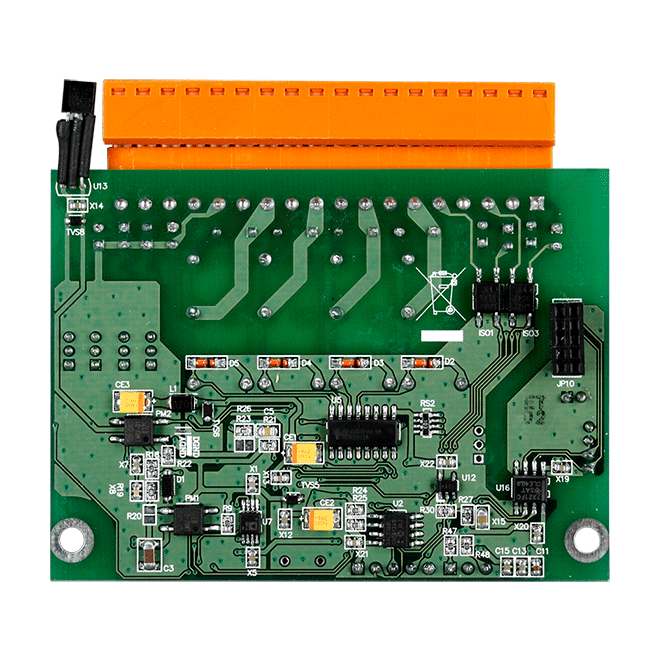

XV305
4-ch Thermocouple Input, 4-ch AO and 4-ch DI Expansion Board
Features
- Multifunction (4Thermocouple, 4AO, 4DI)
- 4-channel Thermocouple Input
- Switch Selectable Voltage or Current Output
- Open Wire Detection for Current Output
- 4-channel Digital Input channels
Introduction
The XV305 is a 4-channels thermocouple input, 4-channels analog output, 4-channels digital input modules. The module supports a variety of thermocouple input types, including Type J, K, T, E, R, S, B, N, C, L, M, and LDIN43710, and features an automatic cold-junction compensation function for all channels.
It provides a programmable output range on all analog output channels (0 ~ 10 VDC, 0 ~ 20 mA or 4 ~ 20 mA ).
It provides 4 channels for digital input, each of which features photocoupler isolation. Either sink- or source-type inputs can be selected via wire connections, and all channels can be used as 32-bit counters.
It is fully RoHS-compliant and features 4 kV ESD protection as well as 2000 VDC intra-module isolation are also provided to enhance noise immunity capabilities in industrial environments.
It provides a programmable output range on all analog output channels (0 ~ 10 VDC, 0 ~ 20 mA or 4 ~ 20 mA ).
It provides 4 channels for digital input, each of which features photocoupler isolation. Either sink- or source-type inputs can be selected via wire connections, and all channels can be used as 32-bit counters.
It is fully RoHS-compliant and features 4 kV ESD protection as well as 2000 VDC intra-module isolation are also provided to enhance noise immunity capabilities in industrial environments.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 2000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal ±8 kV Air For Random Terminal |
| Analog Input | |
|---|---|
| Channels | 4 |
| Sensor Type | Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710) |
| Resolution | 16-bit |
| Accuracy | ±0.1% FSR (25℃) |
| Sampling Rate | Normal Mode:1.5 Hz (per channel) Fast Mode:100 Hz (per channel) |
| Overvoltage Protection | 30 VDC |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| Analog Output | |
|---|---|
| Channels | 4 |
| Type | 0 ~ +10 VDC, 0 ~ +20 mA, +4 ~ +20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% |
| Voltage Output Capability | 10 V @ 10 mA |
| Current Load Resistance | 500 Ω |
| Power-on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| Digital Input/Counter | |
|---|---|
| Channels | 4 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source (NPN/PNP) |
| ON Voltage Level | +3.5 ~ +30 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Max. Counts | 32-bit (0 ~ 4,294,967,285) |
| Frequency | 3 KHz |
| Input Impedance | 3 kΩ, 1.0W |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 |
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus/RTU |
| Power | |
|---|---|
| Consumption | 1.9 W Max. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 60.2 mm x 80 mm x 20 mm (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
