XV161-SL
Single Stack Light (DC-type) Monitoring XV Expansion Board ( 6 DI + 1 Relay )
Features
- Able to detect the status of each color segment: ON, OFF, or Flashing
- 6 channel DC digital input and 1 channel alarm relay output
- Users-define multiple color segment combinations for status monitoring
- Reports the duration of the previous status
- Digital input provides 70 VDC overvoltage protection
- Digital output provides power-on value and safe value settings
Introduction
The XV161-SL is an XV Series I/O expansion board featuring 6 channels of DC digital inputs and 1 relay output. It is designed for monitoring the status of stack lights used in MES (Manufacturing Execution System) equipment.
The sub-board can detect whether each color segment of a stack light is off, on, or flashing. In addition to monitoring individual color segments, it also supports defining and reporting multi-color combinations, along with the duration of previous status states, providing comprehensive insight into machine signaling behavior.
The sub-board can detect whether each color segment of a stack light is off, on, or flashing. In addition to monitoring individual color segments, it also supports defining and reporting multi-color combinations, along with the duration of previous status states, providing comprehensive insight into machine signaling behavior.

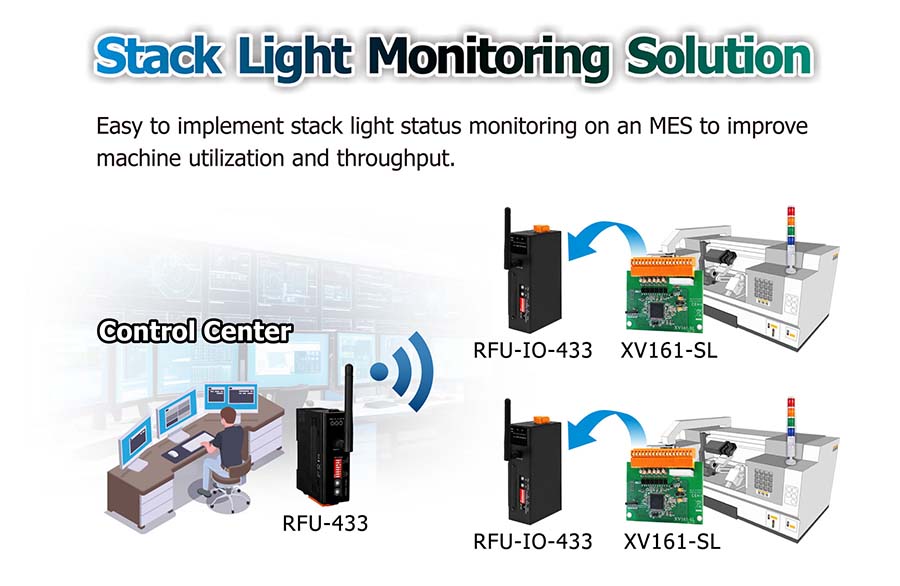

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Digital Input | |
|---|---|
| Able to detect the status of each color segment: ON, OFF, or Flashing | Yes |
| Digital Input | |
|---|---|
| Channels | 6 |
| Type | Wet Contact ( Sink / Source ) |
| ON Voltage Level | +10 VDC ~ 50 VDC |
| OFF Voltage Level | +4 VDC Max. |
| Isolation | 3750 VDC |
| Input Impedance | 10 kΩ，0.5 W |
| Overvoltage Protection | 70 VDC |
| Max. Stack Light Flashing Speed | 3 kHz |
| Report Duration of Previous Status | 10 ~ 65500 Sec. |
| Status monitoring for user-defined combinations of multiple color segments | Max. 81 combinations |
| Relay Output | |
|---|---|
| Channels | 1 |
| Type | Power Relay, Form A (SPST N.O.) |
| Contact Rating | 5 A @ 250 VAC/30 VDC |
| Operate Time | 6 ms |
| Release Time | 3 ms |
| Electrical Endurance | VDE： 5 A @ 250 VAC 30,000 ops (10 ops/min) at 75℃ 5 A @ 30 VDC 70,000 ops (10 ops/min) at 75℃ UL： 5 A @ 250 VAC/30 VDC 6,000 ops 3 A @ 250 VAC/30 VDC 100,000 ops |
| Power on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
