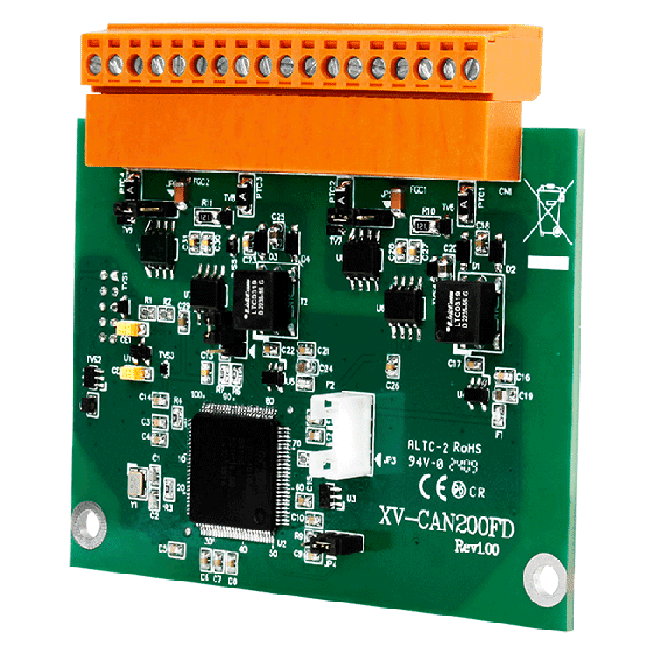

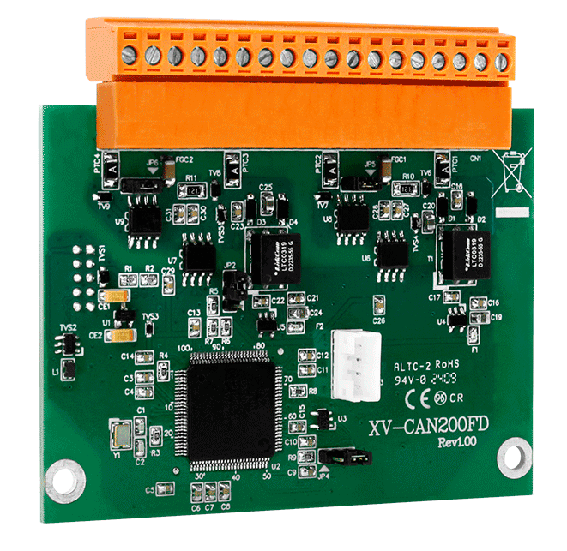

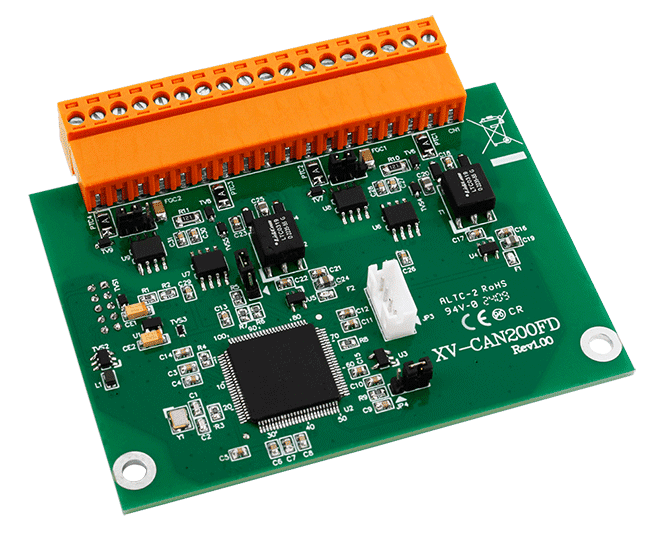

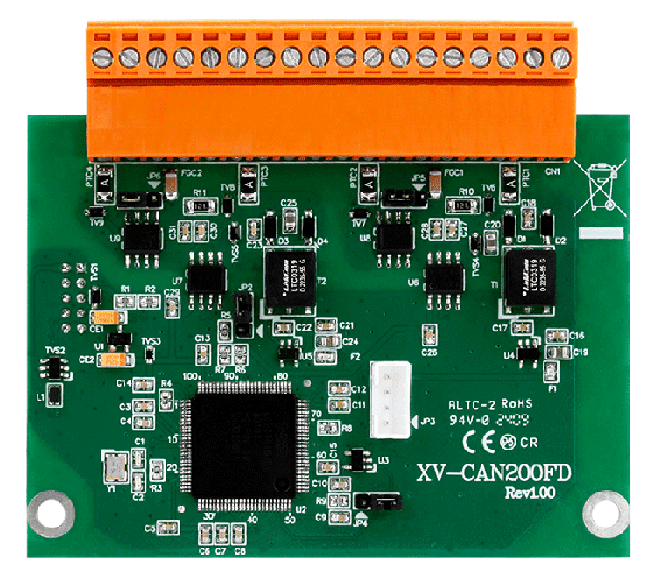

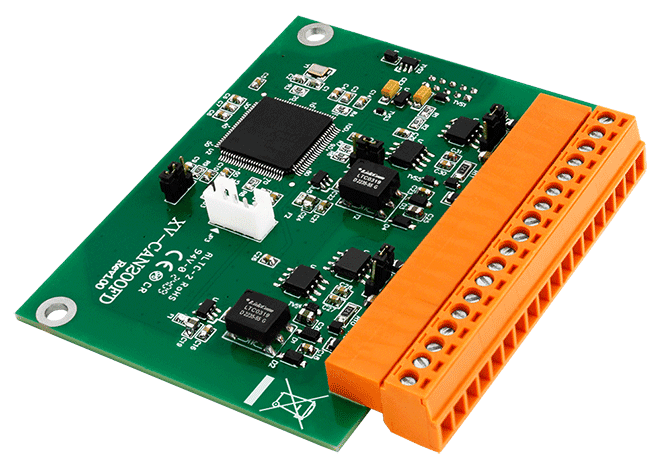

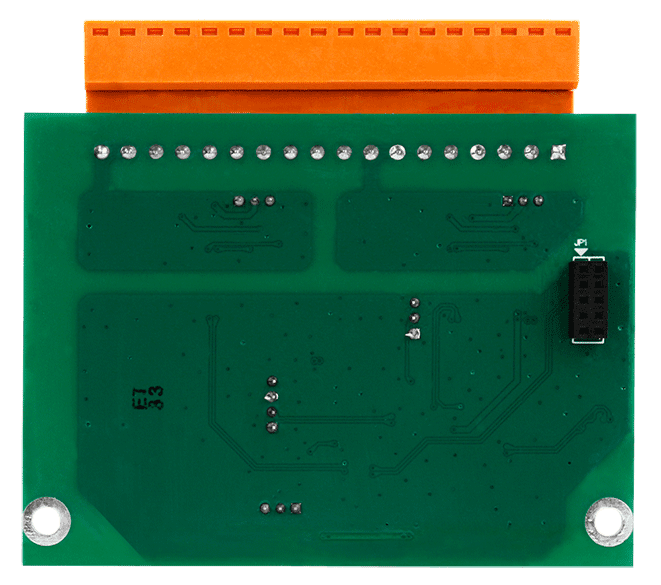

XV-CAN200FD
2-port CAN FD Expansion Board
Features
- Compatible with the ISO 11898-2 standard
- Compatible with CAN specification 2.0 A/B and FD
- CAN FD support for ISO and Non-ISO (Bosch) standards switchable
- CAN FD bit rates for data field from 100 kbps to 10000 kbps
- CAN bit rates from 10 kbps to 1000 kbps
Introduction
The XV-CAN200FD provides 2-port isolation CAN FD expansion for LP-2241M, LP-2841M.
Each channel features Isolation CAN port. It provides quick and easy expansion of CAN Bus communication interfaces for LP-2241M, LP-2841M applications.
Each channel features Isolation CAN port. It provides quick and easy expansion of CAN Bus communication interfaces for LP-2241M, LP-2841M applications.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CAN | |
|---|---|
| Ports | 2 |
| Specification | ISO 11898-2, CAN 2.0 A/B and FD |
| Baud Rate | CAN bit rates: 10 k ~ 1 M bps, CAN FD bit rates for data field: 100 k ~ 10M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photocoupler |
| Terminal Resistor | DIP switch for the 120 Ω terminal resistor |
| Filter | Yes |
| Receive Buffer | 128 data frames |
| Power | |
|---|---|
| Consumption | 1.5 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 62 x 80 x 13.5 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specification Memo
Note: XV-CAN200FD Supports LP-2241M, LP-2841M Only.
