XP-9xx8-IoT

XP-9xx8-IoT series

Win-GRAF XP-9000-IoT series PAC

Features

• Windows 10 IoT Enterprise (64-bit)
• Intel® Atom™ E3845 1.91 GHz
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• 4 GB DDR3 SDRAM
• 64 GB SSD
• VGA and HDMI Port Output
• 2 10/100/1000M Ethernet Ports
• Support eLogger HMI
• Support Dual-PAC Redundant System

Introduction

The Win-GRAF XP-9000-IoT series PACs, powered by Windows 10 IoT Enterprise, seamlessly combine computing, I/O, and an operator interface into one unit—making it an ideal solution for integrating HMI, data acquisition, and control within a single PAC. Equipped with an Intel E3845 CPU and 1/3/7 I/O expansion slots, it offers a wide range of connectivity options including dual Gigabit Ethernet, VGA, USB ports, and RS-232/RS-485 interfaces. The local I/O slots support I-9K and I-97K series I/O modules, while remote I/O expansions are available via Ethernet and RS-485 I/O modules.

The benefits of running Windows 10 IoT Enterprise on 64-bit x86 platform are as following:
1. Faster data computing: with Intel E3845 CPU, Win-GRAF can now works more effectively on IoT platform.
2. Higher Internet security: level up OS leads to upgrade system security.
3. Rich applications developed on Windows 10: support for Universal Windows applications.

Applications

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY

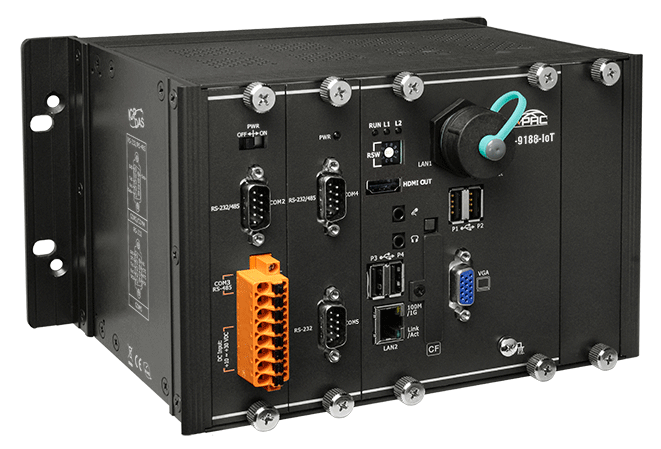

PRODUCT SERIES XP-9188-IoT CR	DESCRIPTION1-slot Win-GRAF based XP-9000-IoT series PAC (RoHS)

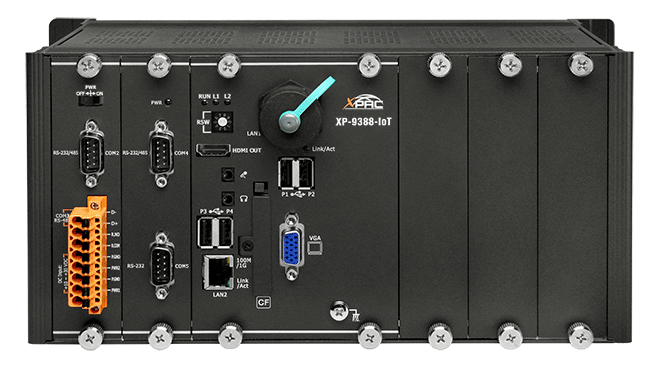

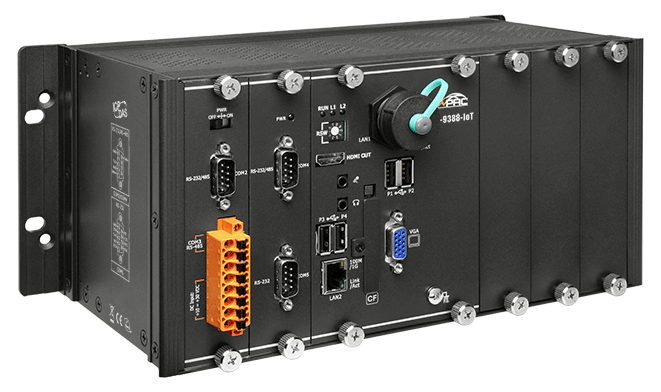

PRODUCT SERIES XP-9388-IoT CR	DESCRIPTION3-slot Win-GRAF based XP-9000-IoT series PAC (RoHS)
PRODUCT SERIES XP-9788-IoT CR	DESCRIPTION7-slot Win-GRAF based XP-9000-IoT series PAC (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Software
OS	Windows 10 IoT Enterprise (64-bit)
Protocol	• OPC UA Server • eLogger HMI • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON and User-Defined Communication Protocols
Development	Embedded Win-GRAF SoftLogic (IEC 61131-3)
Service	IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script)
Function	• Redundancy Solution • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log
Framework Support	.Net Framework 3.5 ~ 4.8
Multilanguage Support	English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese
SDK	Dll for VC, Dll for Visual Studio.Net

Main Unit
CPU	E3845, 1.91 GHz, 64-bit quad core
64-bit Hardware Serial Number	Yes
System Memory	4 GB DDR3 SDRAM, 64 GB Flash
Storage	64 GB SSD, 32 GB CF card
Non-Volatile Memory	128 KB MRAM, 16 KB EEPROM
Real Time Clock	Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer	Dual Watchdog Timer

Display
Signal	VGA, HDMI
Resolution	VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3) HDMI 2560 x 1600 @ 24bpp

LED Indicators
Status	1 x System, 2 x Power, 2 x Programmable

I/O Expansion
I/O Type	I-9K, I-97K series
Slots	XP-9188-IoT: 1 XP-9388-IoT: 3 XP-9788-IoT: 7

HMI
Buzzer	Yes
Rotary Switch	1 x 10 Position (0 ~ 9)

Audio
Jack	Microphone-in and Earphone-out

Ethernet
Ports	2 x RJ-45, 10/100/1000 Base-TX

COM Ports
Ports	1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated)

USB
Ports	4 x USB 2.0

Power
Input Range	+10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs	Yes
Consumption	XP-9188-IoT: 18.5W XP-9388-IoT: 18.7W XP-9788-IoT: 20.4W

Mechanical
Casing	Metal
Dimensions (mm)	XP-9188-IoT: 239 x 164 x 133 (W x L x H) XP-9388-IoT: 300 x 164 x 133 (W x L x H) XP-9788-IoT: 422 x 164 x 133 (W x L x H)
Installation	DIN-Rail, Wall mounting
