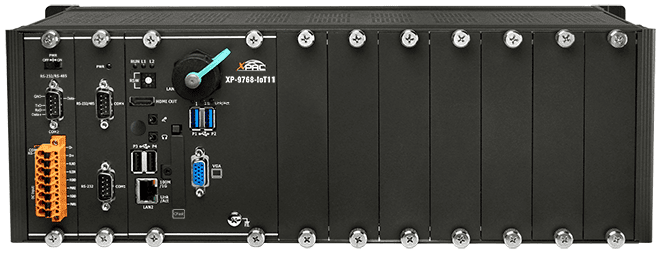

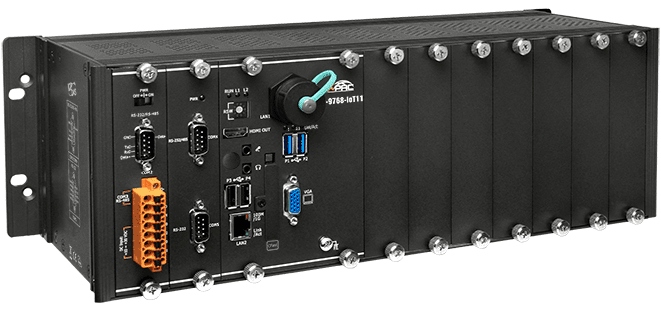

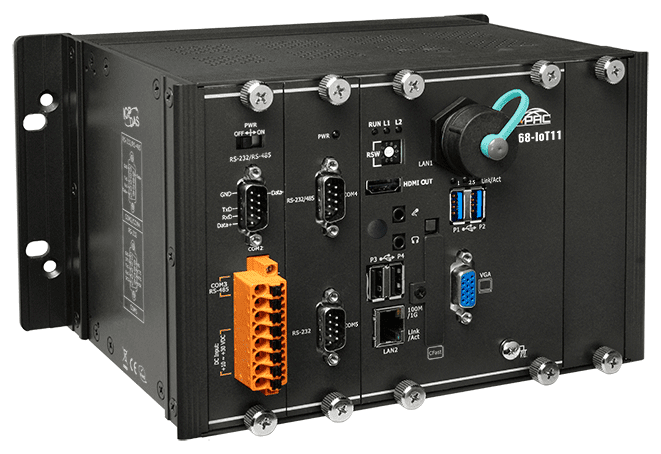

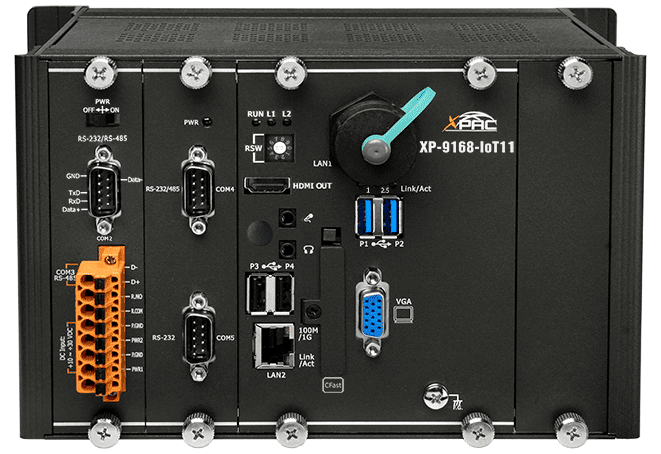

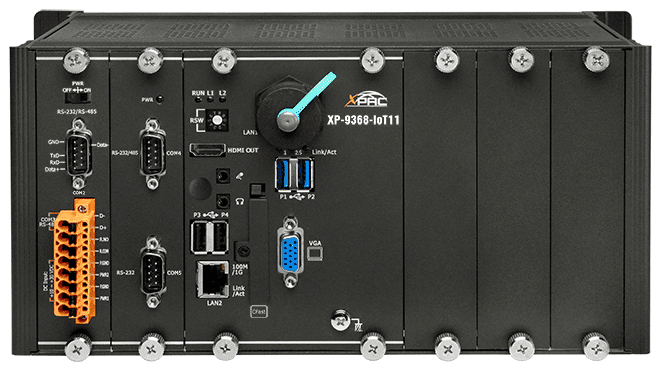

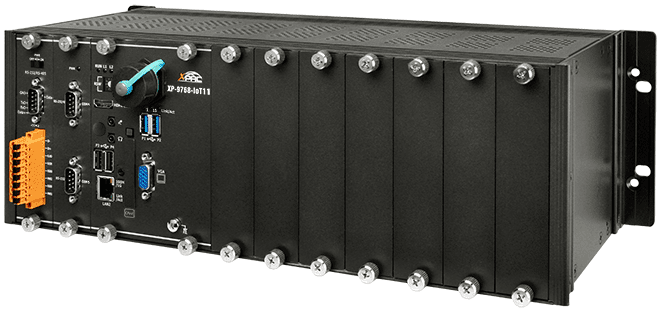

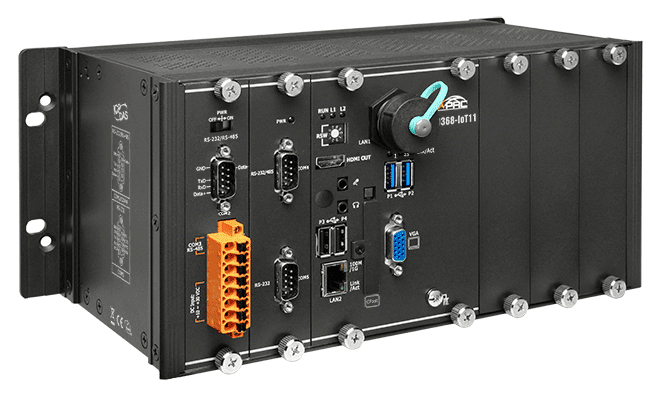

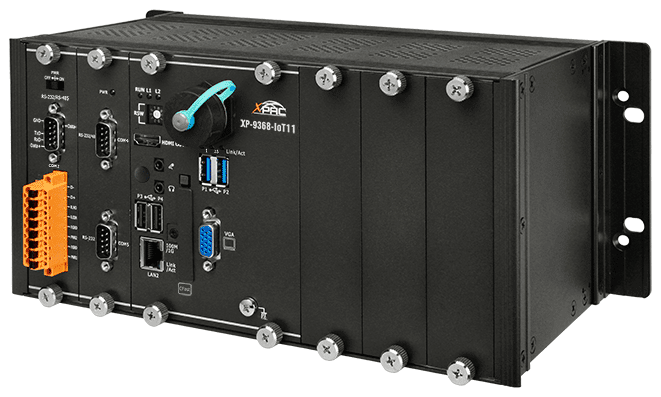

XP-9x68-IoT11 series
Win-GRAF Windows 11 IoT Series PAC
Features
• Windows 11 IoT Enterprise LTSC (64-bit)
• Intel® Atom™ x7211RE (1.0 ~3.2 GHz Turbo, Dual-core)
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• 8 GB DDR5 SDRAM
• 1x 256GB eMMC, 1 x CFast card slot
• 1 x M.2 PCIe slot (Accessories: Key M/ KEY B/ Key E)
• VGA and HDMI Port Output
• 1 x RJ-45, 10/100/1000M
• 1 x RJ-45, 10/100/1000/2500M
• Redundant Power Input
• Intel® Atom™ x7211RE (1.0 ~3.2 GHz Turbo, Dual-core)
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• 8 GB DDR5 SDRAM
• 1x 256GB eMMC, 1 x CFast card slot
• 1 x M.2 PCIe slot (Accessories: Key M/ KEY B/ Key E)
• VGA and HDMI Port Output
• 1 x RJ-45, 10/100/1000M
• 1 x RJ-45, 10/100/1000/2500M
• Redundant Power Input
Introduction
The Win-GRAF XP-9x68-IoT11 series are Windows 11 IoT Enterprise LTSC based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel ® Atom ™ x7211RE CPU, 1/3/7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our I-9K and I-97K series I/O modules and remote I/O expansions are available to use Ethernet I/O modules and RS-485 I/O modules.
Windows 11 IoT Enterprise is the latest generation in the Windows IoT family, delivering next-level performance, security, and manageability for IoT applications. Built on the same foundation as Windows 10 IoT, it fully leverages the extensive Windows ecosystem and cloud connectivity, while introducing a modern user experience and higher security standards.
Windows 11 IoT Enterprise is the latest generation in the Windows IoT family, delivering next-level performance, security, and manageability for IoT applications. Built on the same foundation as Windows 10 IoT, it fully leverages the extensive Windows ecosystem and cloud connectivity, while introducing a modern user experience and higher security standards.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| OS | Windows 11 IoT Enterprise LTSC (64-bit) |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocols • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Function | • eLogger HMI • Redundancy Solution • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Framework 3.5 ~ 4.8.1, .NET 6/8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
|---|---|
| CPU | Intel® Atom™ x7211RE CPU (1.0 ~3.2 GHz Turbo, Dual-core) |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 8 GB DDR5 SDRAM |
| Storage | 1 x 256 GB eMMC, 1 x CFast card slot, 1 x M.2 PCIe slot (Accessories: Key M/ KEY B/ Key E) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
|---|---|
| Signal | VGA, HDMI |
| Resolution | VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3) HDMI 2560 x 1600 @ 24bpp |
| LED Indicators | |
|---|---|
| Status | 1 x System, 2 x Power, 2 x Programmable |
| I/O Expansion | |
|---|---|
| I/O Type | I-9K, I-97K series |
| Slots | XP-9168-IoT11: 1 XP-9368-IoT11: 3 XP-9768-IoT11: 7 |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
|---|---|
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100/1000M 1 x RJ-45, 10/100/1000/2500M |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
|---|---|
| Ports | 4 x USB 2.0 |
| Power | |
|---|---|
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | XP-9168-IoT11: 18.5W XP-9368-IoT11: 18.7W XP-9768-IoT11: 20.4W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | XP-9168-IoT11: 239 x 164 x 133 (W x L x H) XP-9368-IoT11: 300 x 164 x 133 (W x L x H) XP-9768-IoT11: 422 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
