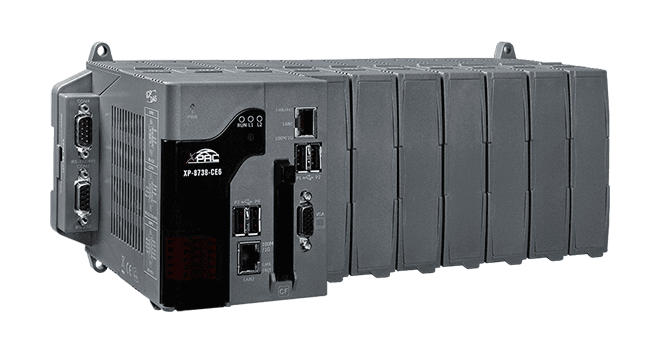

XP-8x38-CE6 series
Win-GRAF Based PAC with x86 CPU and WinCE 6.0
Features
• x86 CPU, 1.0 GHz, dual-core
• Windows CE 6.0
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• VGA Port Output
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI
• Redundant Power Inputs
• Support Dual-PAC Redundant System
Introduction

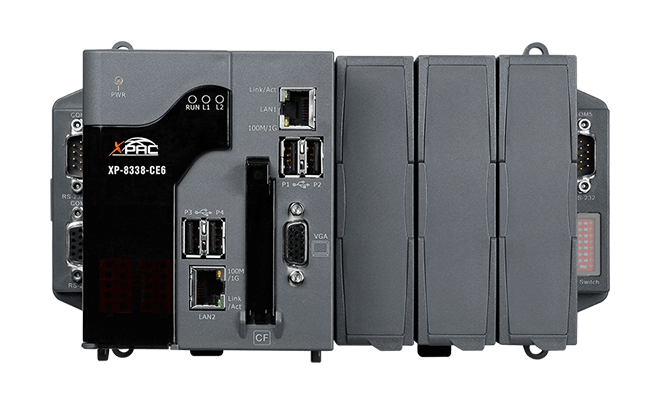

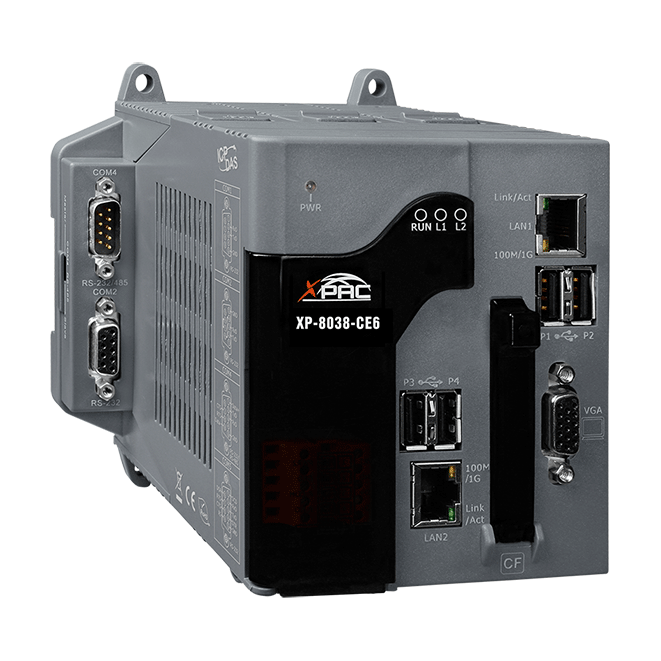

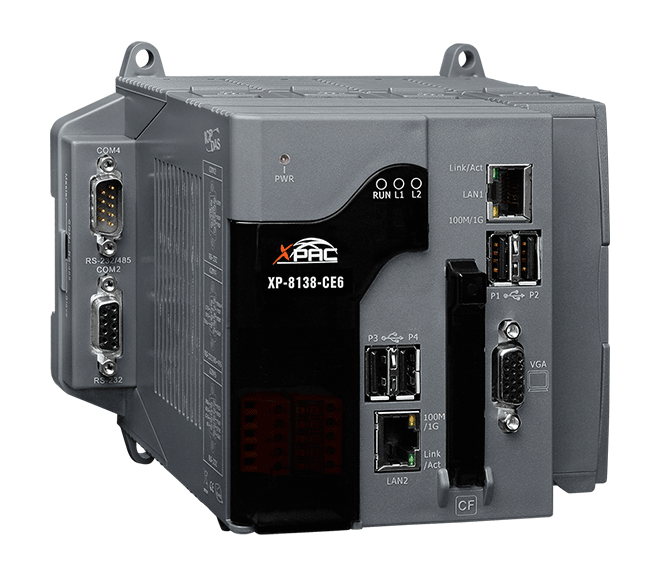

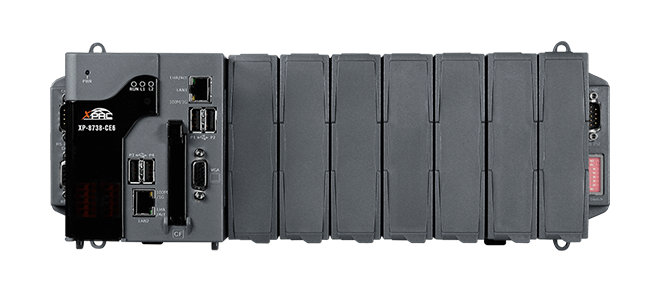

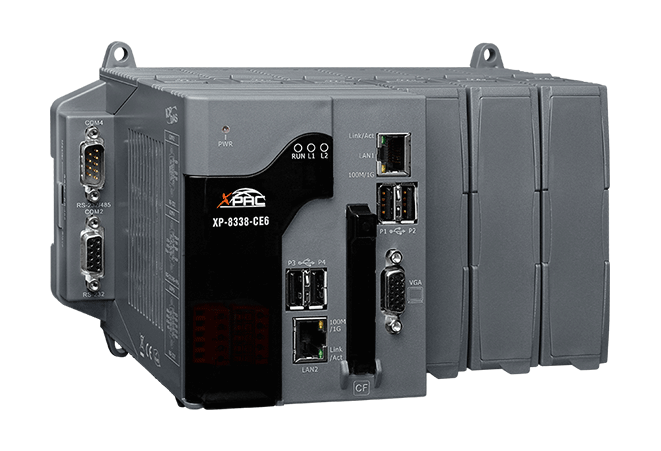

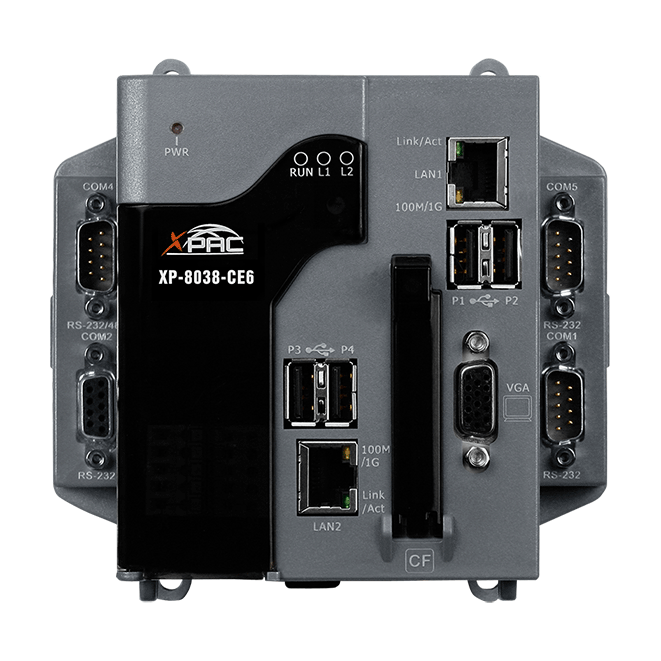

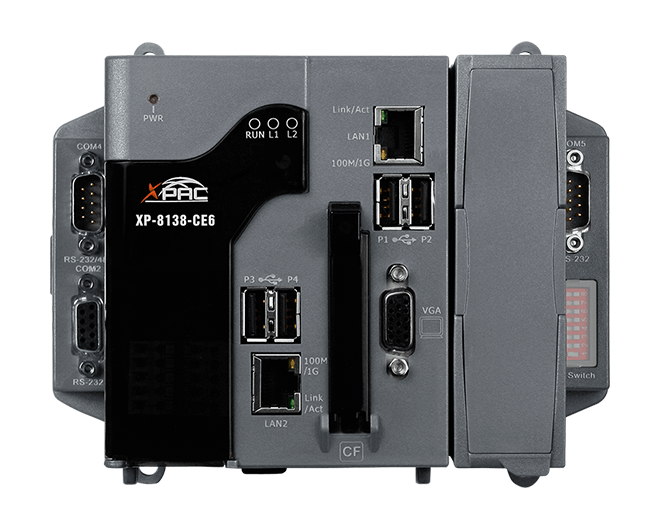

The Win-GRAF XPAC-8000-CE6 Series (XP-8038-CE6/XP-8138-CE6/XP-8338-CE6/XP-8738-CE6) represents the latest generation of Win-GRAF XPACs (Programmable Automation Controllers) from ICP DAS, based on Windows CE 6.0. Each model features an x86 CPU (1 GHz) dual-core running the Windows CE 6.0 operating system, along with a variety of input/output ports (VGA, USB, Ethernet, RS-232/485), and an array of I/O slots (0/1/3/7). These slots can be used to integrate high-performance parallel I/O modules (high-profile I-8K Series) or serial I/O modules (high-profile I-87K series).
Running Windows CE 6.0 on an XPAC device offers several benefits: hard real-time capability, achievable deterministic control, and a PC-like window display and operating environment. These PACs support WinGRAF (IEC 61131-3 Standard) software for developing logic control applications, as well as M.S. VS 2008 software (VB .NET, C#) for creating HMI and data management applications that can exchange data with Win-GRAF applications. This combination makes the application's design more convenient and practical.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
Similar Products
| Software | |
|---|---|
| OS | Windows CE 6.0 |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocols • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5 |
| Function | • eLogger HMI • Redundancy Solution • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for eVC, Dll for Visual Studio.Net 2005/2008 |
| Main Unit | |
|---|---|
| CPU | x86 CPU, 1.0 GHz, dual-core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 2 GB DDR3 SDRAM |
| Storage | 32 GB Flash, 8 GB CF card (up to 32 GB) |
| Non-Volatile Memory | 16 KB EEPROM, 512 KB MRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
|---|---|
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators | |
|---|---|
| Status | 1 x System, 1 x Power, 2 x Programmable |
| I/O Expansion | |
|---|---|
| Slots | XP-8038-CE6: 0 XP-8138-CE6: 1 XP-8338-CE6: 3 XP-8738-CE6: 7 |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| DIP Switch | Yes, only XP-8038-CE6 has no such switch |
| Audio | |
|---|---|
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
|---|---|
| Ports | 3 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| USB | |
|---|---|
| Ports | 4 x USB 2.0 |
| Power | |
|---|---|
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | XP-8038-CE6: 12.0W XP-8138-CE6: 16.6W XP-8338-CE6: 16.8W XP-8738-CE6: 18.0W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | XP-8038-CE6: 137 x 132 x 125 (W x L x H) XP-8138-CE6: 169 x 132 x 125 (W x L x H) XP-8338-CE6: 231 x 132 x 125 (W x L x H) XP-8738-CE6: 355 x 132 x 125 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
