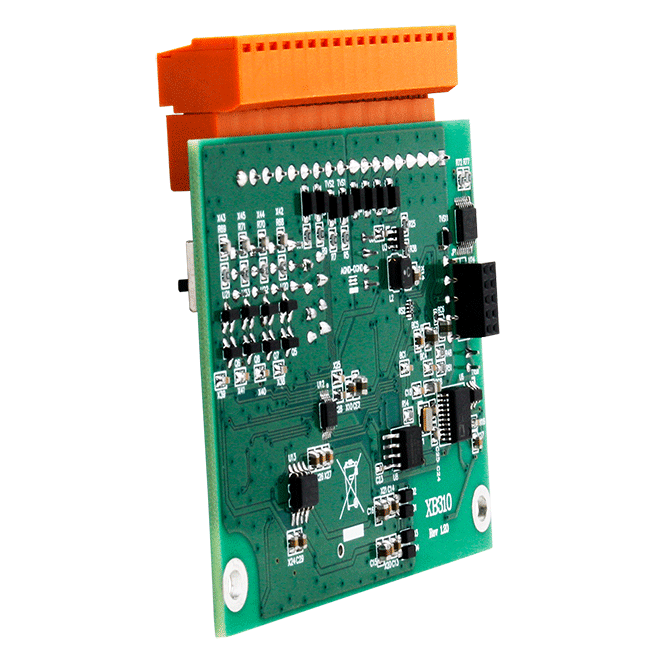

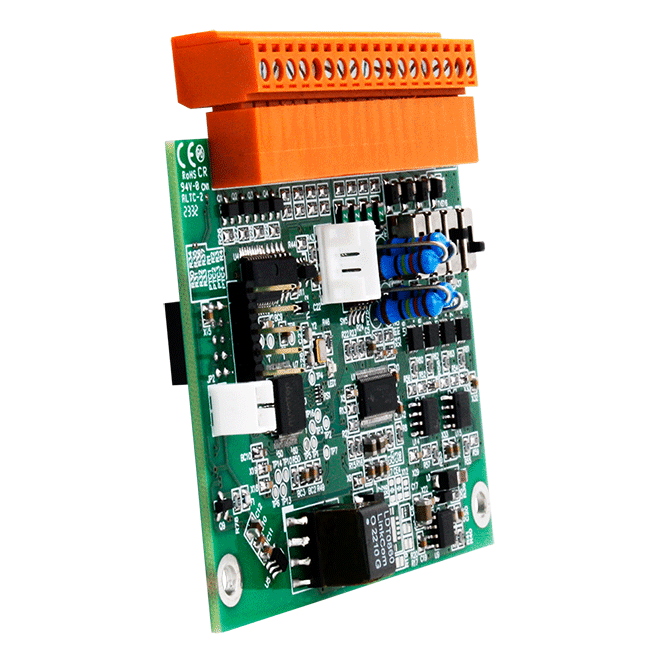

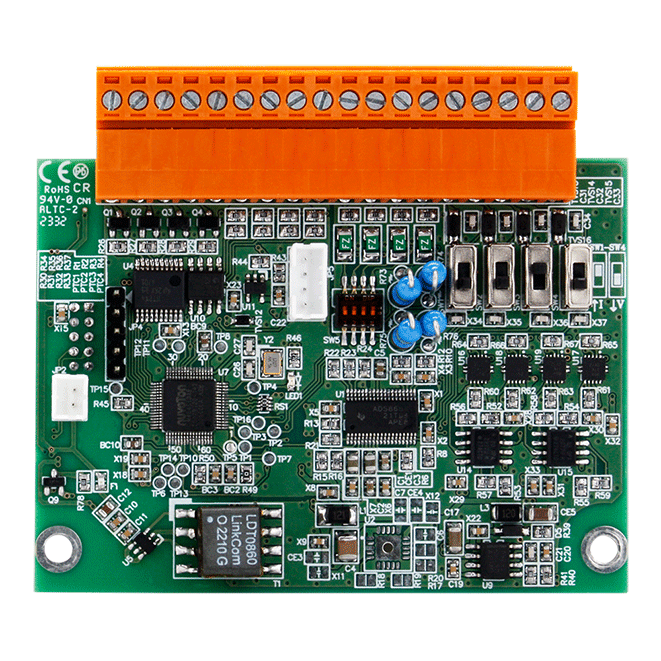

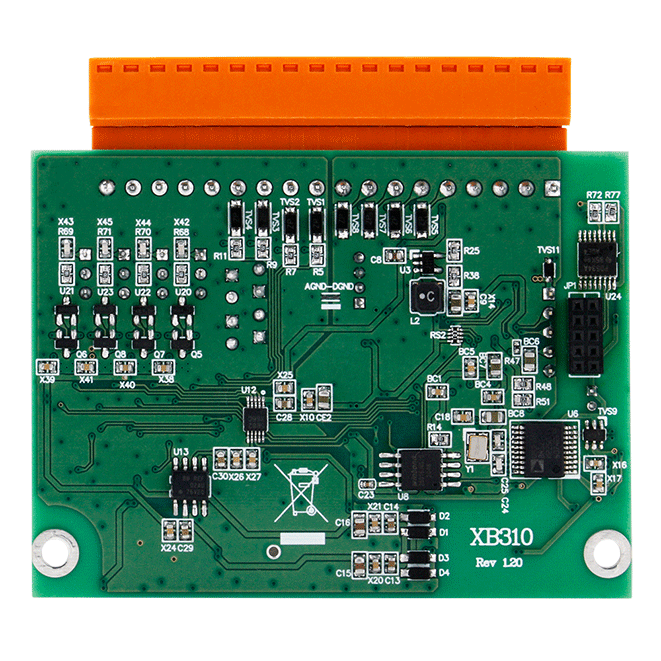

XB310
4-ch AI, 4-ch AO, 4-ch DI and 4-ch DO Expansion Boar
Features
- Multifunction (4 AI, 4 AO, 4 DI, 4 DO)
- Individual Channel Confi guration
- Switch Selectable Voltage or Current Input/Output
- Open Wire Detection for Current Output
- Confi gurable Power-on Value Settings
- Digital Input Channels can be used as 32-bit Counters
Introduction
The XB310 is a multifunction expansion board that includes 4 analog input channels, 4 analog output channels, 4 digital input channels and 4 digital output channels.
It provides a programmable input range on all analog input channels (+/-2.5 V、+/-5 V、+/-10 V、0 ~ 5 V、0 ~ 10 V、+/-20 mA、0 ~ 20 mA or 4 ~ 20 mA), analog output channels are 12- bit at 0 ~ 10 V, 0 ~ 20 mA or 4 ~ 20 mA. Each analog input channel can be configured for an individual range and provides a high overvoltage protection of 60 VDC.
Voltage and current inputs/outputs are switch selectable.
It provides a programmable input range on all analog input channels (+/-2.5 V、+/-5 V、+/-10 V、0 ~ 5 V、0 ~ 10 V、+/-20 mA、0 ~ 20 mA or 4 ~ 20 mA), analog output channels are 12- bit at 0 ~ 10 V, 0 ~ 20 mA or 4 ~ 20 mA. Each analog input channel can be configured for an individual range and provides a high overvoltage protection of 60 VDC.
Voltage and current inputs/outputs are switch selectable.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 2000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal ±8 kV Air For Random Terminal |
| Analog Input | |
|---|---|
| Channels | 4 |
| Type | ±2.5 V, ±5 V, ±10 V, 0 ~ 5 V, 0 ~ 10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Switch Selectable) |
| Resolution | 16-bit |
| Accuracy | ±0.1% |
| Sampling Rate | 4-ch Bulk mode: 10KHz 4-ch Polling mode: 1KHz |
| Overvoltage Protection | 60 VDC |
| Individual Channel Configuration | Yes |
| Analog Output | |
|---|---|
| Channels | 4 |
| Type | 0 V ~ +10 V, 0 mA ~ +20 mA, +4 mA~ +20 mA (Switch Selectable) |
| Resolution | 12-bit |
| Accuracy | ±0.3% |
| Voltage Output Capability | 10 V @ 20 mA |
| Current Load Resistance | 500 Ω |
| Individual Channel Configuration | Yes |
| Digital Input/Counter | |
|---|---|
| Channels | 4 |
| Type | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | 32 bit |
| Frequency | 15 KHz |
| Min. Pulse Width | 33us |
| Overvoltage Protection | 60 VDC |
| Low Pass Filter | 0.1 ~ 6553.5 ms (5KHz ~ 0.08 Hz) |
| Digital Output | |
|---|---|
| Channels | 4 |
| Type | Sink |
| Load Voltage | +3.5 to +50 VDC |
| Load Current | 700 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | Yes |
| Short-circuit Protection | Yes |
| Power on Value | Yes, Programmable |
| USB | |
|---|---|
| Specification | USB 2.0 High-Speed (480 Mbps) |
| Power | |
|---|---|
| Consumption | 2 W Max. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
