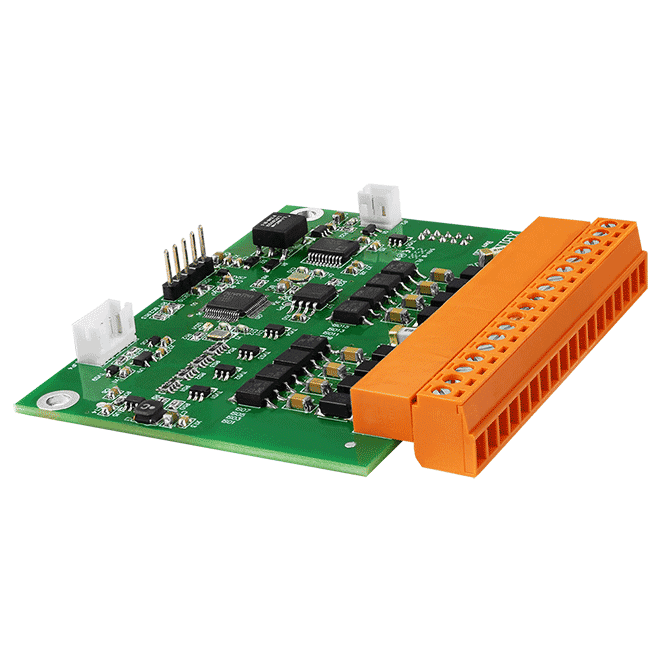

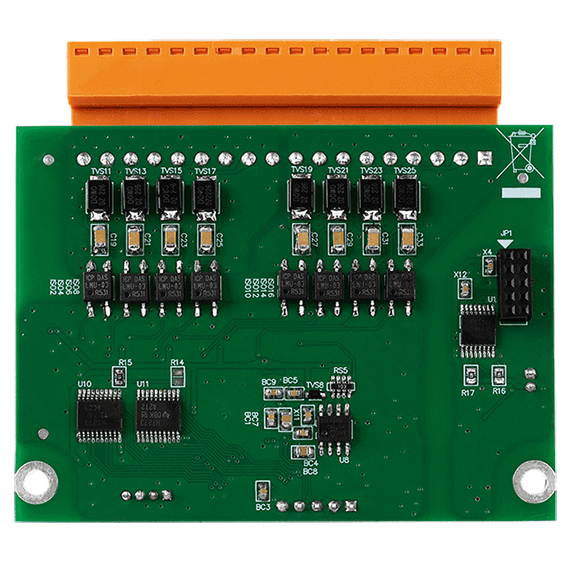

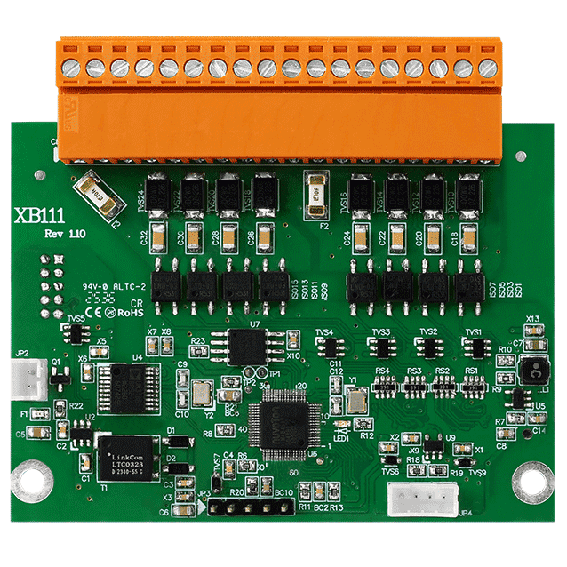

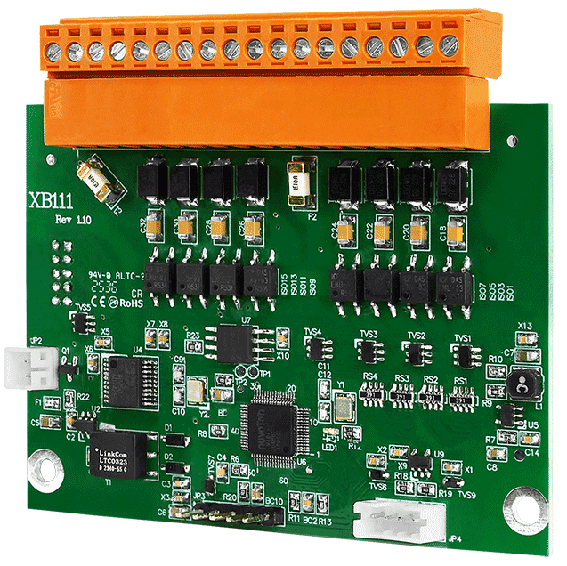

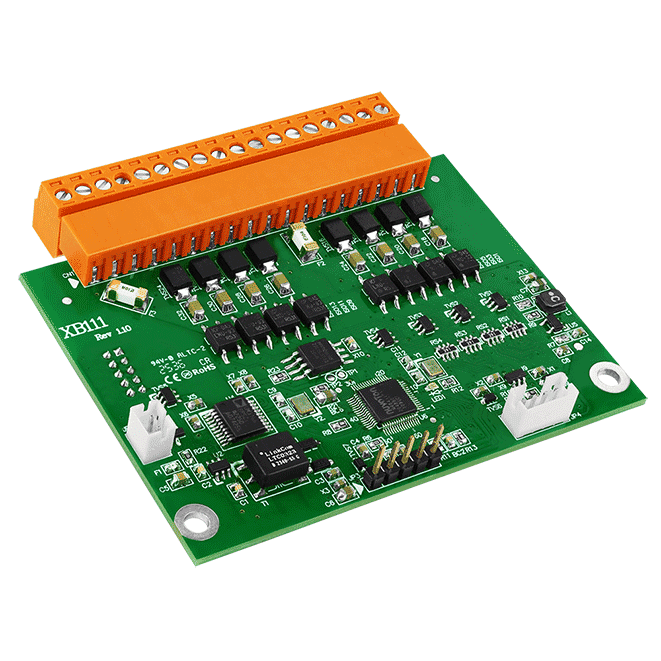

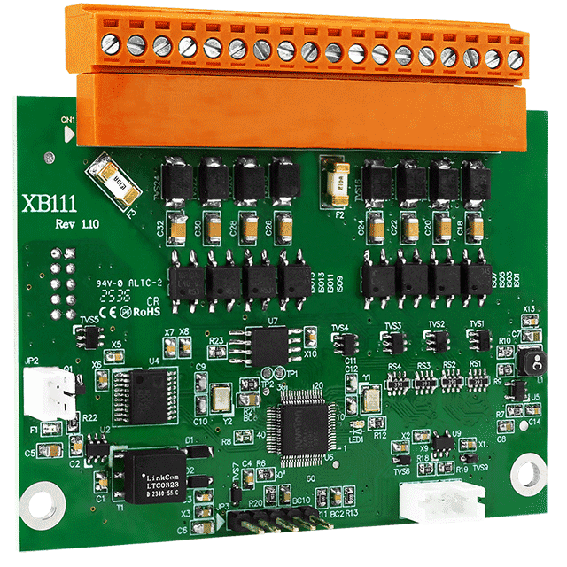

XB111
16-ch DO Expansion Board
Features
- 16-ch DO (Sink/Source)
- Individual Channel Configuration
- Configurable Power-on Value Settings
- Overvoltage Protection for Digital Output
- Short-circuit Protection for Digital Output
Introduction
The XB111 is an 16-channel DO (Sink-type or Source-type) expansion board, selectable via wiring.
The output channels feature built-in overload and short-circuit protection and support a software-configurable power-on value to guarantee safe module operation in hazardous voltage environments.
The output channels feature built-in overload and short-circuit protection and support a software-configurable power-on value to guarantee safe module operation in hazardous voltage environments.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 2000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal ±8 kV Air For Random Terminal |
| Digital Output | |
|---|---|
| Channels | 8 |
| Type | Push-Pull |
| Sink/Source (NPN/PNP) | Sink/Source |
| Load Voltage | +3.5 ~ +80 V |
| Load Current | 700 mA/channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | Yes |
| Short-circuit Protection | Yes |
| Power on Value | Yes,Programmable |
| USB | |
|---|---|
| Specification | USB 2.0 High-Speed (480 Mbps) |
| Power | |
|---|---|
| Consumption | 2 W Max. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
