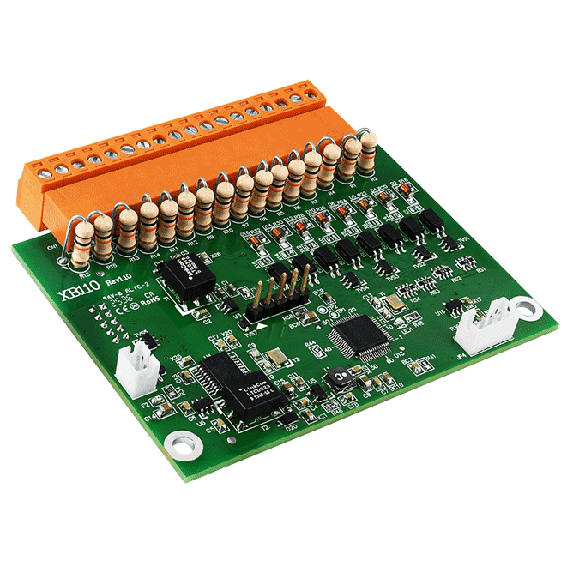

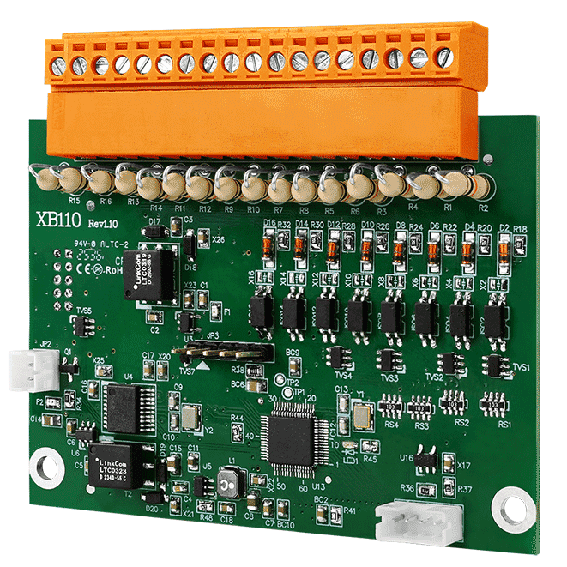

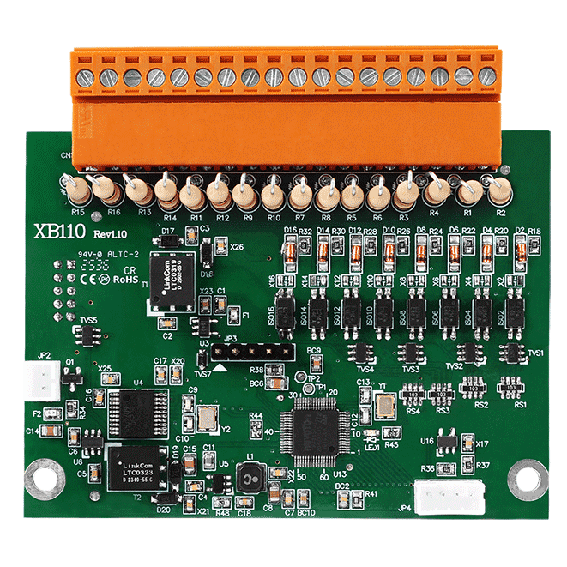

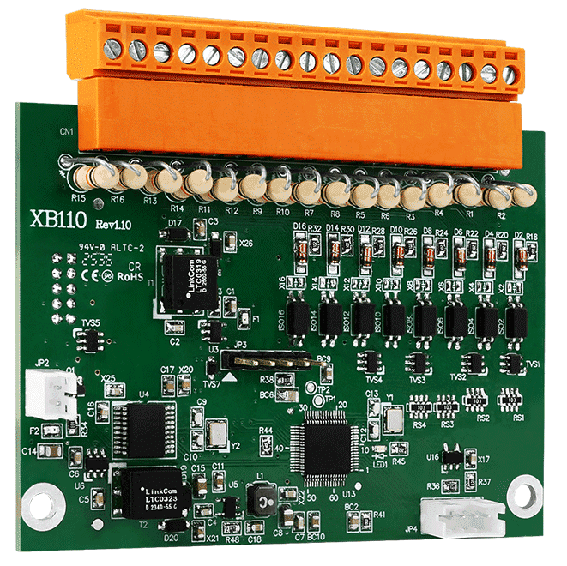

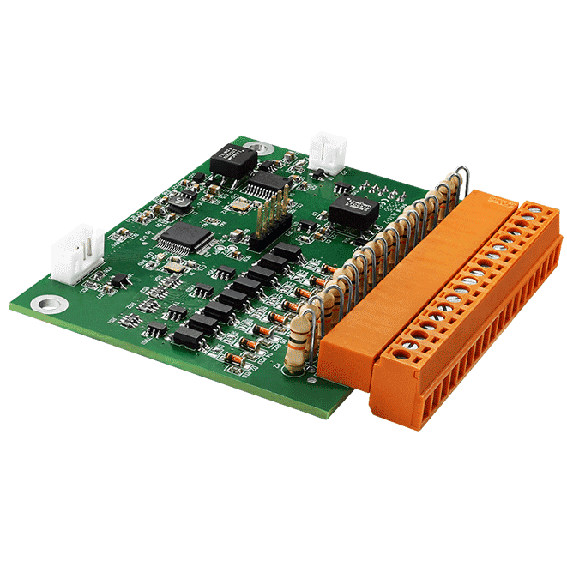

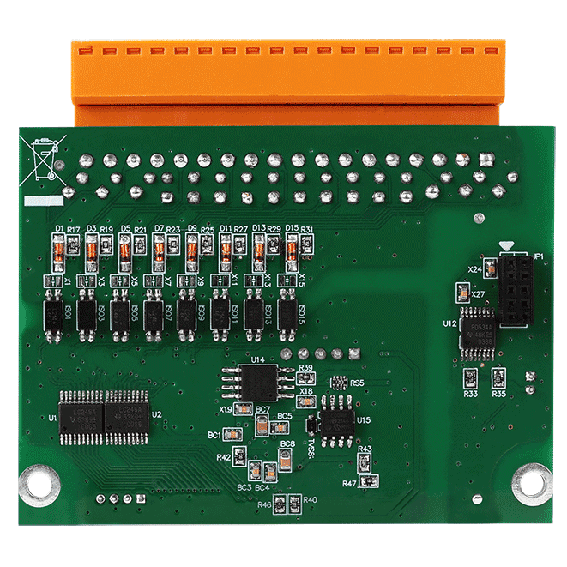

XB110
16-ch DI Expansion Board
Features
- 16-ch DI (Wet/Dry)
- Individual Channel Configuration
- Digital Input Channels can be used as 32-bit Counters
Introduction
The XB110 is an 16-channel DI (Wet/Dry Contact) expansion board, selectable via wiring.
Each input channel functions as a 32-bit counter.
Each input channel functions as a 32-bit counter.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 2000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal ±8 kV Air For Random Terminal |
| Digital Input/Counter | |
|---|---|
| Channels | 8 |
| Type | Dry Contact Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +5 ~ +50 VDC |
| OFF Voltage Level | Dry: Open Wet: +1 VDC (max.) |
| Max. Counts | 32-bit |
| Frequency | 15 kHz |
| Min. Pulse Width | 33 us |
| Overvoltage Protection | +60 VDC |
| Low Pass Filter | 0.1 ~ 6553.5 ms (0.08 Hz ~ 5000 Hz) |
| USB | |
|---|---|
| Specification | USB 2.0 High-Speed (480 Mbps) |
| Power | |
|---|---|
| Consumption | 2 W Max. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
