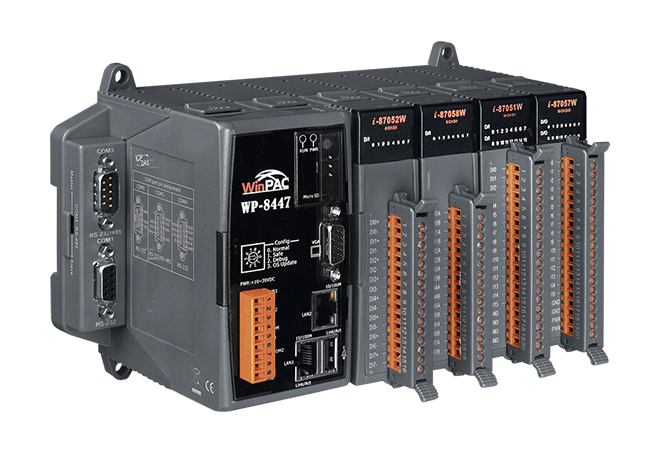

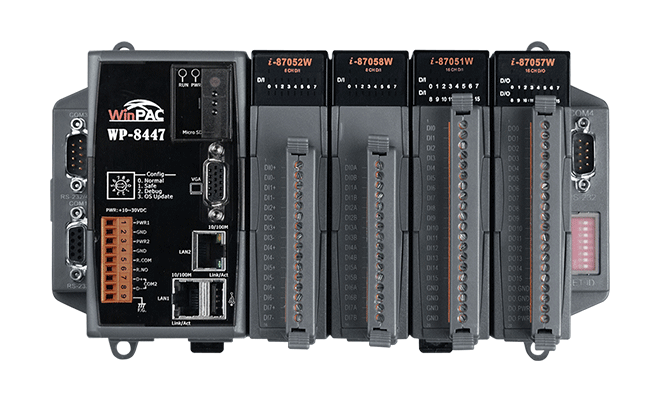

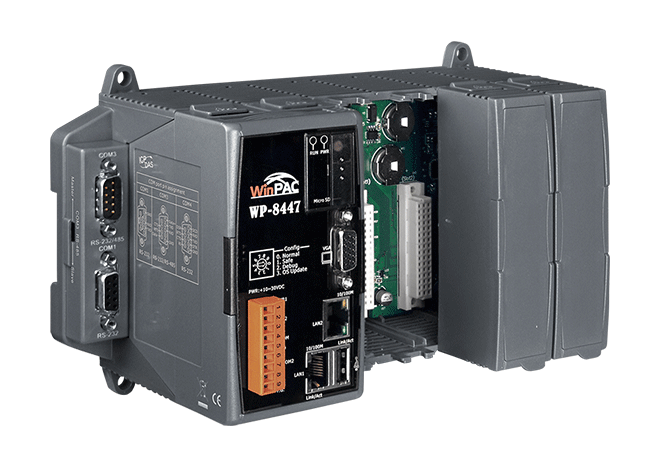

4-slot ISaGRAF Based PAC with PXA270 CPU and WinCE 5.0 (Multilanguage Version)
Features
• PXA270, 520 MHz CPU
• Windows CE 5.0
• Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3)
• VGA Port Output
• Modbus RTU/TCP (Master, Slave)
• Various Communication Interfaces
‣ 2 x 10/100BASE-T Ethernet Ports
‣ 4 x Serial Ports (RS-232/485)
‣ 1 x USB Port
• Redundant Power Input
Introduction
ISaGRAF WinPAC-8000 Series (WP-8147/8447/8847) is the new generation WinCE 5.0 based ISaGRAF PAC (Programmable Automation Controller) from ICP DAS. Each WP-8xx7 equip with a PXA270 CPU (520 MHz) running Windows CE 5.0 operating system, support a variety of input/output ports (VGA, USB, Ethernet, RS-232/485), and a range of I/O slots that can be used to integrate high-performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series).
The benefits of running Windows CE 5.0 on WinPAC devices are hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, and achievable deterministic control. WinPAC devices are also capable of running ISaGRAF and PC-based control software such as Visual Basic .NET, Visual C#, etc., that providing all of the best features of those PLCs and Windows PCs.
Notice:
ISaGRAF can not run on 64-bit Windows 7/8 PCs. Win-GRAF would be proper choice.

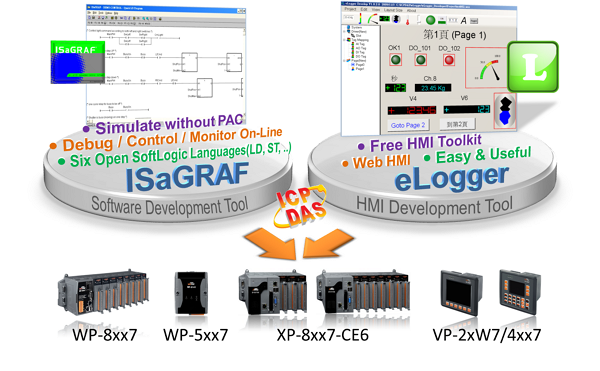

WinPAC Series WP-8xx7 supports eLogger HMI:
Running HMI and Control Logic in the Same PAC
The benefits of running Windows CE 5.0 on WinPAC devices are hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, and achievable deterministic control. WinPAC devices are also capable of running ISaGRAF and PC-based control software such as Visual Basic .NET, Visual C#, etc., that providing all of the best features of those PLCs and Windows PCs.
Notice:
ISaGRAF can not run on 64-bit Windows 7/8 PCs. Win-GRAF would be proper choice.
WinPAC Series WP-8xx7 supports eLogger HMI:
Running HMI and Control Logic in the Same PAC
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| OS | Windows CE 5.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Main Unit | |
|---|---|
| CPU | PXA270 or compatible, 32-bit, 520 MHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 128 MB SDRAM |
| Storage | 96 MB Flash, 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory | 16 KB EEPROM, 512 KB Dual battery backup SRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
|---|---|
| Signal | VGA |
| Resolution | 640 × 480, 800 × 600 |
| LED Indicators | |
|---|---|
| Status | 1 x Power, 1 x Programmable |
| I/O Expansion | |
|---|---|
| I/O Type | I-8K, I-87K series |
| Slots | 4 |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| DIP Switch | Yes |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
|---|---|
| Ports | 2 x RS-232, 1 x RS-485 (2500 VDC Isolated), 1 x RS-232/RS-485 |
| USB | |
|---|---|
| Ports | 1 x USB 1.1 (host) |
| Power | |
|---|---|
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 9.1 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 231 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
