WISE-7901

Intelligent User-defined I/O Module
WISE-7901
WISE-7901
WISE-7901
WISE-7901

Features

  • Runs on browsers, no extra software tool is required.
  • No more programming, Web pages provided for control logic editing.
  • IF-THEN-ELSE logic rules execution ability.

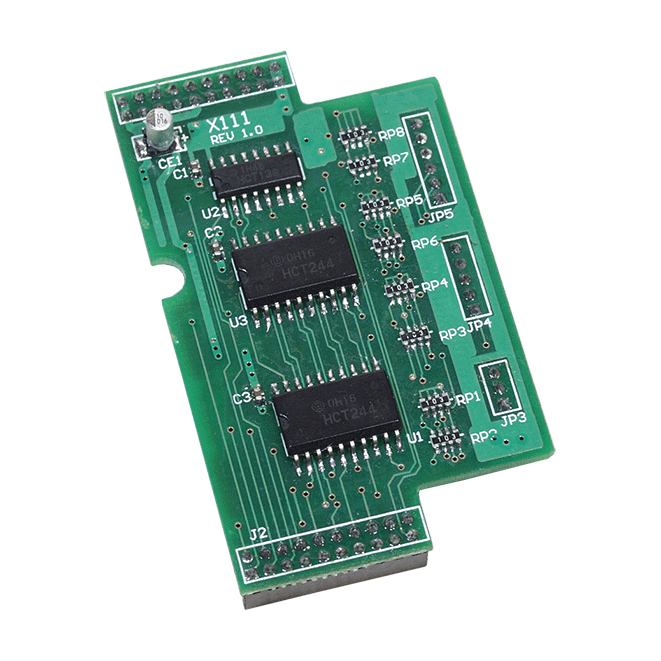

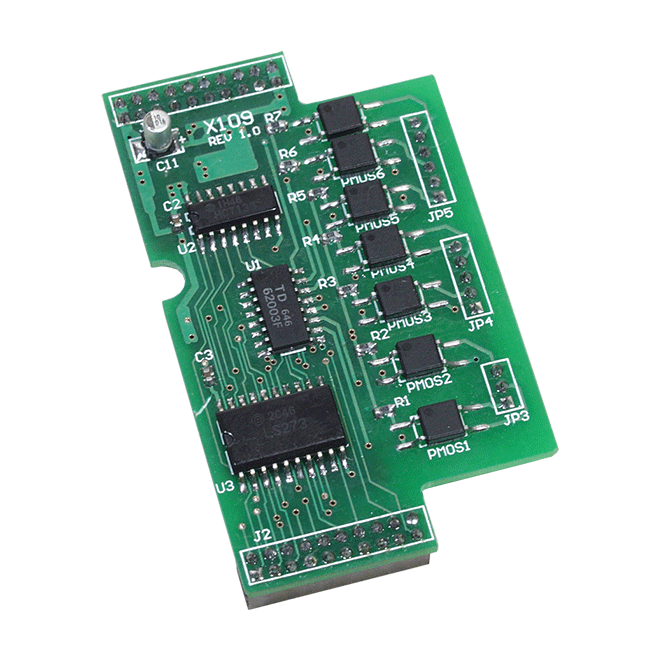

  • Support DI/DO X-Boards: X107, X109, X110, X111.

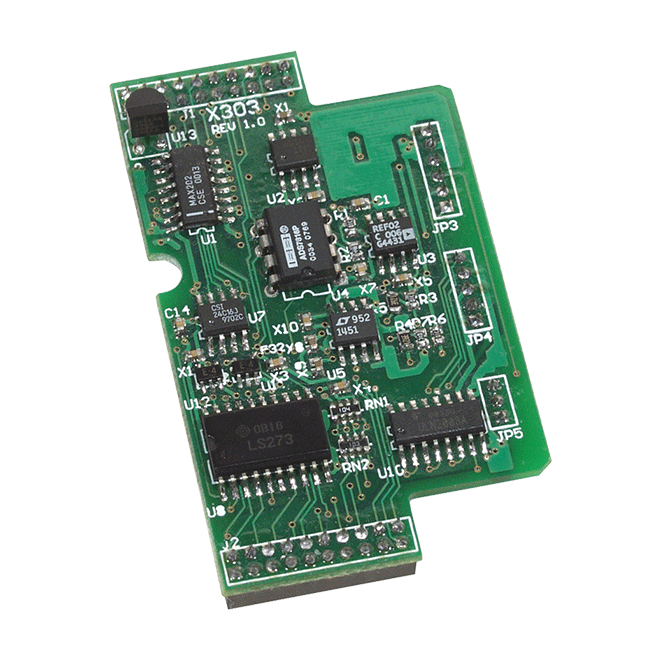

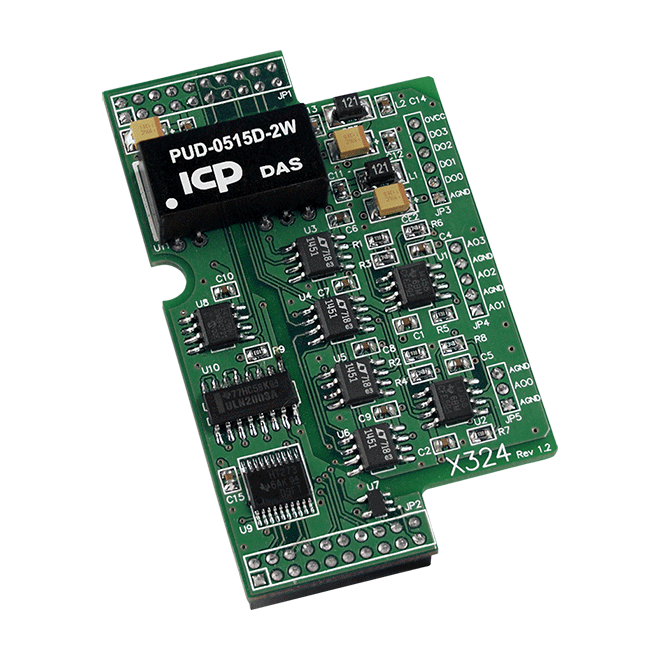

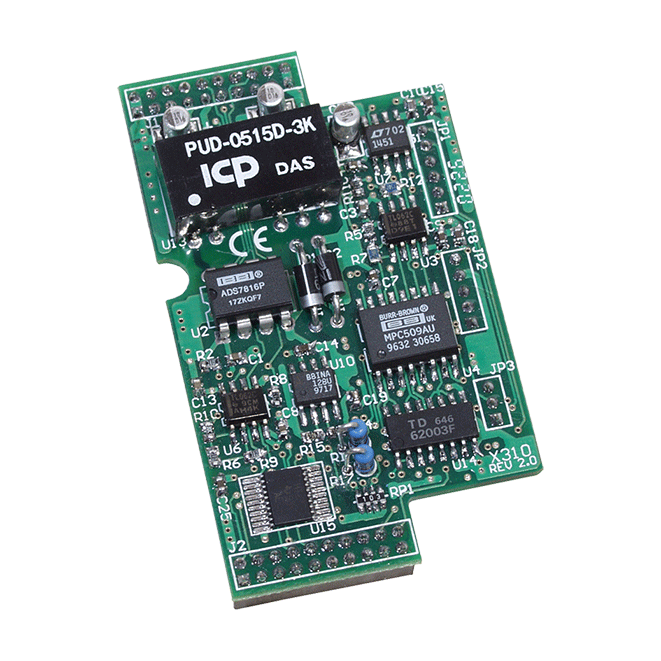

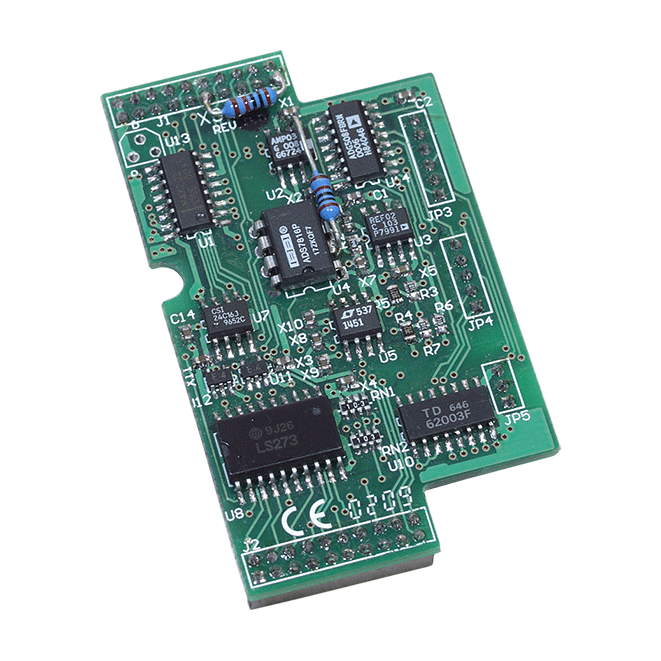

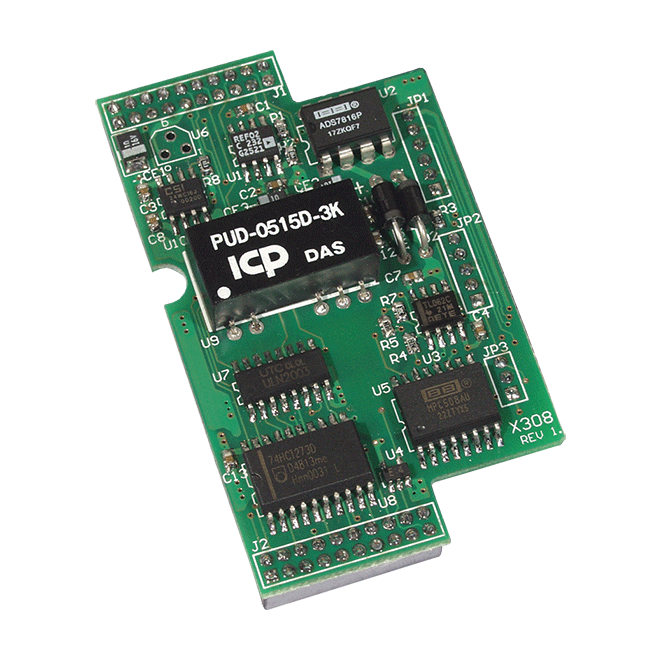

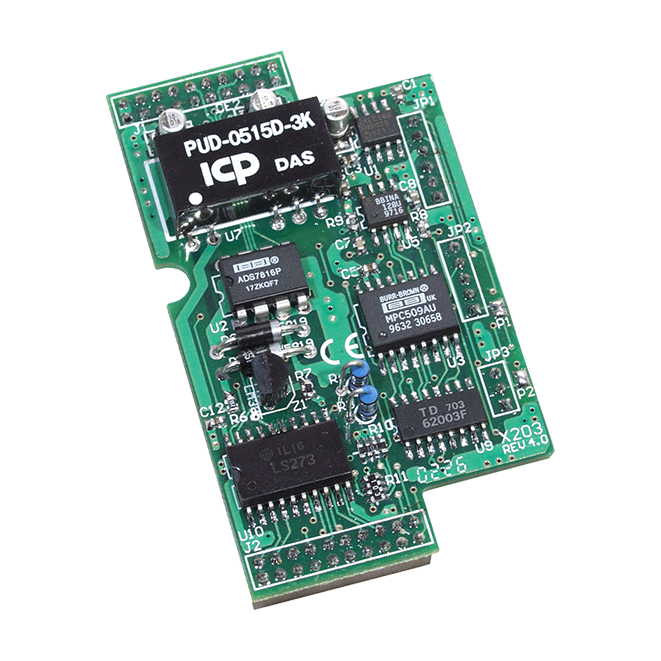

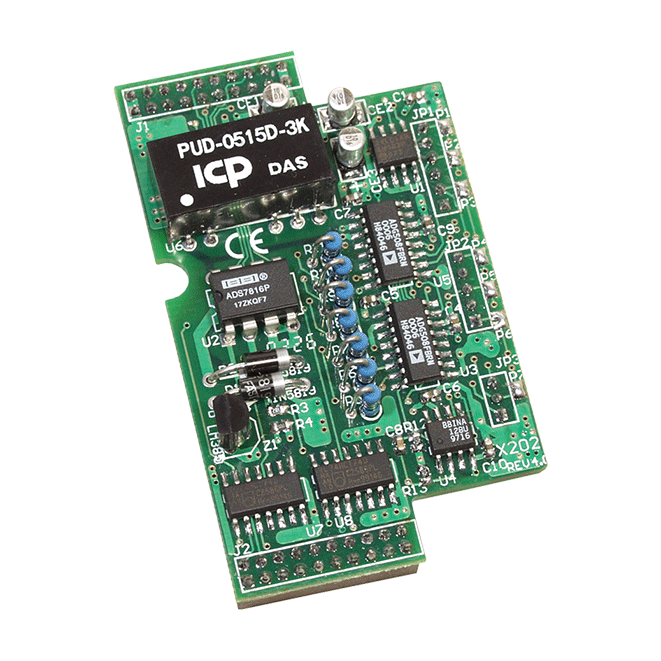

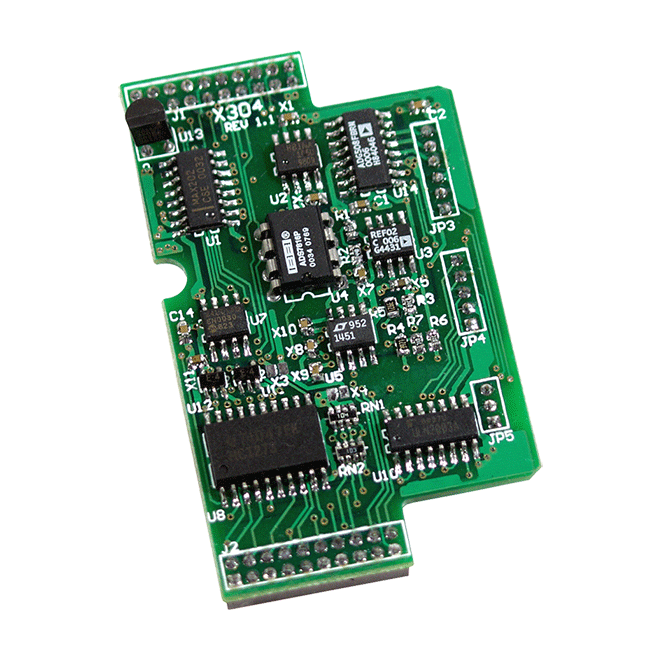

  • Support Multi-Function X-Boards: X202, X203, X303, X304, X305, X308, X310, X324.
  • Support I/O channel monitoring/control, Timer, Schedule operations.
  • Support non-SSL Email sending and CGI Command sending operations.
  • Modbus TCP Protocol for SCADA System Integration.
  • IEEE 802.3af-compliant Power over Ethernet (PoE).
CE UKCA FCC RoHS WEEE

Introduction

WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.

WISE-7901 follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency therefore simplifying systems design, saving space, reducing cables and eliminating the requirement for dedicated electrical outlets. Meanwhile, in case under a non-PoE environment, WISE-7901 will still be able to receive power from auxiliary power sources like AC adapters or battery, etc.

This module WISE-7901 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It supports an I/O expansion bus to implement various I/O functions such as D/I, D/O, A/D, D/A according to the using X-Board.


Applications

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.

More detailed application case, you can find on here.

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES WISE-7901     CR DESCRIPTIONIntelligent User-defined I/O Module (RoHS)
This combination include other products.

Similar Products

Software
Protocol • Modbus TCP
• CGI Command (Sending)
Function • Web Interface for Configuration
• IF-THEN-ELSE Logic operation (36 rule supported)
• I/O channel monitoring and control
• Timer operation (12 set supported)
• Schedule operation (12 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (12 set supported)
• Advanced P2P (8 set supported)
• non-SSL Email sending function
• SNTP Time Synchronization
CPU Module
CPU 16-bit CPU (80 MHz)
LED Indicators
Status 1 x PoE Power/System status
I/O Expansion
I/O Type X-board
Ethernet
Ports RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
PoE Yes
COM Ports
Ports COM 1: Reserved
COM 2: Reserved
Power
Reverse Polarity Protection Yes
Consumption 1.5 W
Powered from PoE Yes, IEEE 802.3af, Class 1
Powered from Terminal Block Yes, 10 ~ 48 VDC
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail Mounting/Wall Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 5 ~ 90% RH, Non-condensing
