WF-2572M
Ethernet to Wi-Fi Bridge with metal case (Asia Only)
Features
- Frequency: 2.4/5 GHz.
- Full compatible with IEEE 802.11 a/b/g/n.
- Support Wi-Fi Limit-AP and Infrastructure mode.
- Support WPA-PSK, WPA2-PSK for Wi-Fi encryption.
- Plug-and-Play Ethernet to Wi-Fi connectivity.
- USB-based configuration.
- No driver installation required.
- Built-in Watchdog.
- Extended operating temperature range (-25°C ~ +75°C).
- Metal Case.
Introduction
The WF-2572M is an Industrial Ethernet to Wi-Fi Bridge. The device only needs to connect the Ethernet cable with WF-2572M that can create an IEEE 802.11 a/b/g/n wireless personal network. The interface between Ethernet and Wi-Fi use transparent transmission so that it can convert Wi-Fi to wire internet without complex settings. The WF-2572M also supports dual bands (2.4/5 GHz). The 2.4 GHz is more crowded than 5 GHz. Therefore, the devices on 2.4GHz suffer much more interference than the ones on 5 GHz. The WF-2572M will have less interference on 5 GHz.

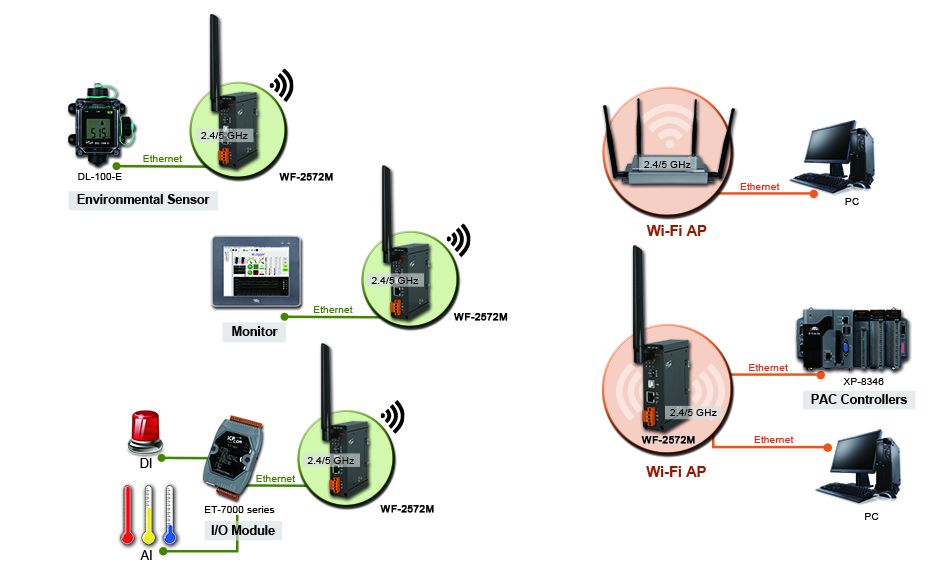

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| LED Indicators | |
|---|---|
| Status | 1 x PWR 1 x LINK 1 x COMM 1 x High 1 x Mid 1 x Low |
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 50 m (LOS) |
| Standard | IEEE 802.11 a/b/g |
| Operation Mode | Limit-AP & Infrastructure |
| Encryption | Open/WPA/WPA2 |
| Channels | 2.4 GHz: CH1~11 5 GHz: CH36、40、44、48 |
| Antenna | Omni-Directional 3 dBi @ 2.4 GHz 5.5 dBi @ 5 GHz |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 100Base-TX Ethernet Controller (Auto-MDIX) |
| USB | |
|---|---|
| Specification | USB 2.0 Full-Speed |
| Connector | USB type B |
| Power | |
|---|---|
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.6 W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 33 x 108 x 120 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25℃ ~ +75℃ |
| Storage Temperature | -30℃ ~ +80°C |
| Humidity | 10% ~ 95% (non-condensing) |
