VPD-170-IRT
IR Temperature data concentrator
Features
- High-resolution color touch screen
- Front Panel: IP65 Waterproof
- Provide setting Temperature threshold value function
- 9 Signal Relay Output channels for Alarm
- Provide Thermography
- Connect up to 31 iSN-81x-MRTU series module
- Support Modbus TCP/RTU protocol
Introduction

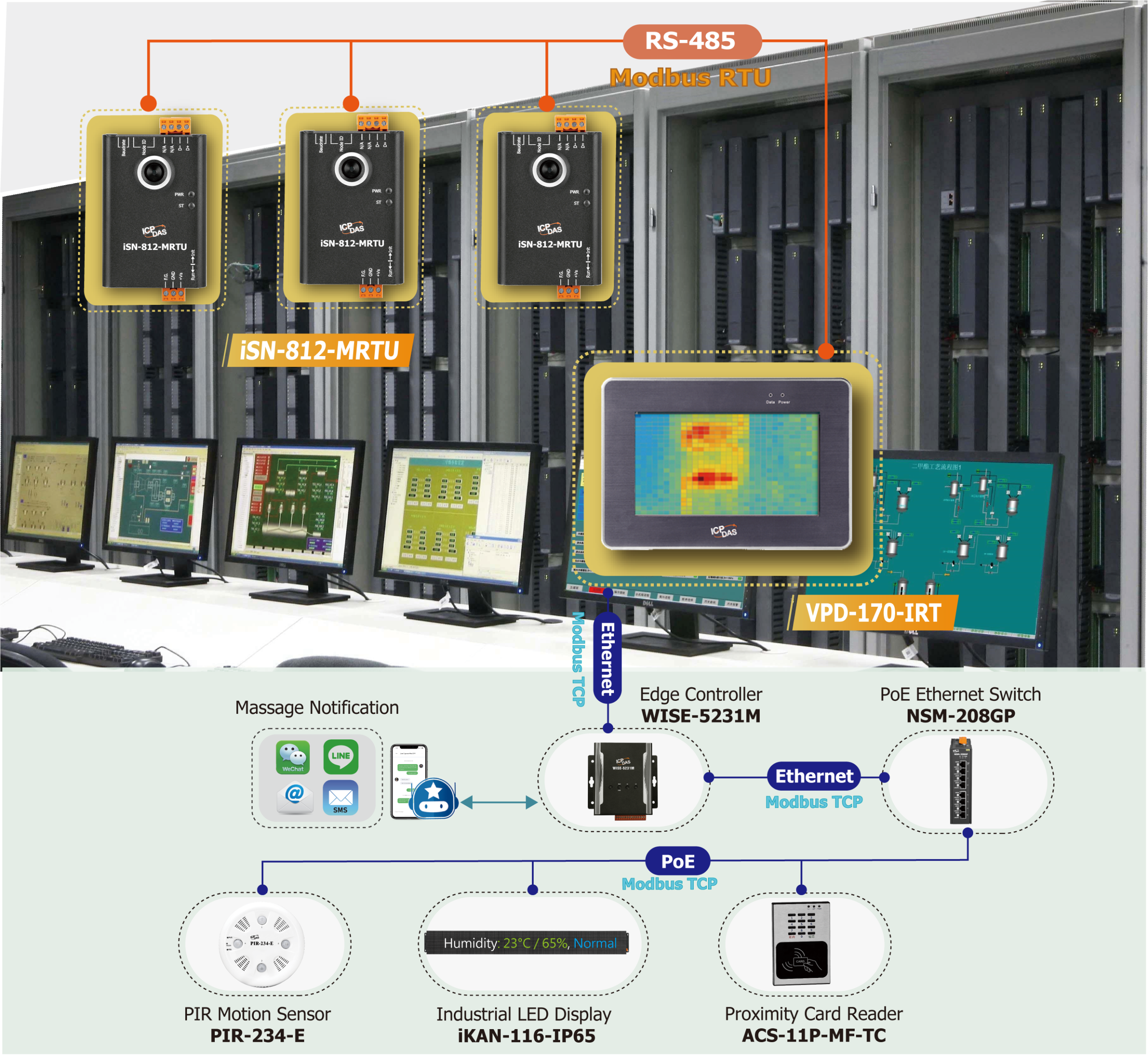

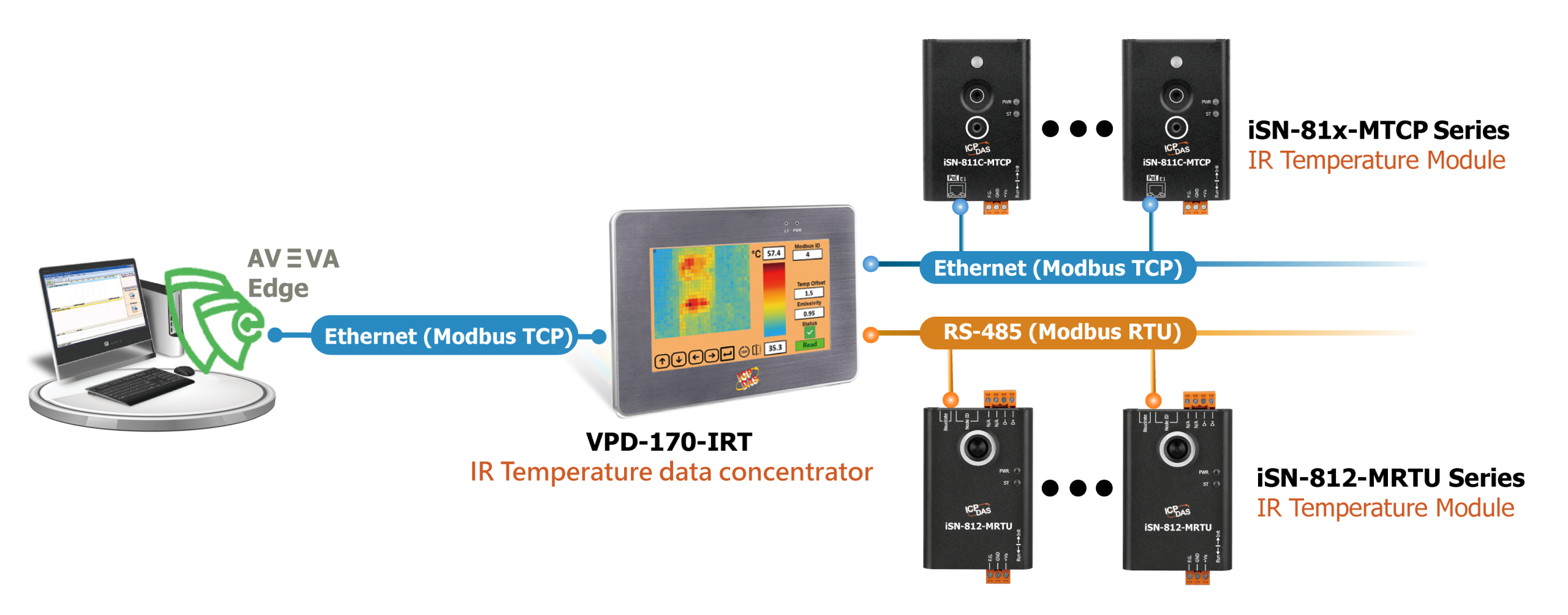

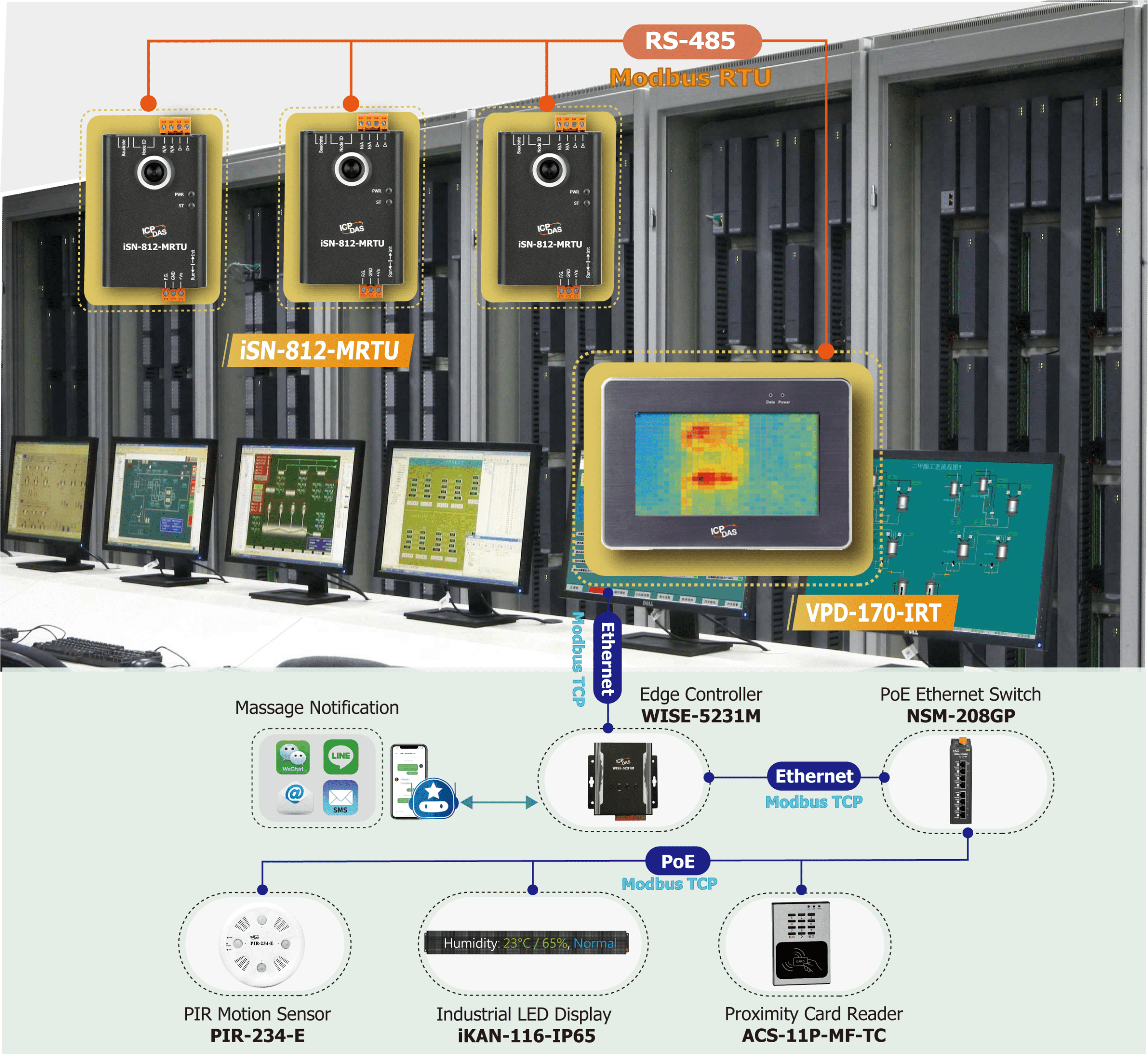

VPD-1xx-IRT supports 8 Modbus TCP connections, allowing remote monitoring hosts to connect to VPD-1xx-IRT via Ethernet and access temperature data of multiple iSN-81x-MRTUs at one time. Users can set various functions of iSN-81x-MRTU and VPD-1xx-IRT from the touch screen of VPD-1xxIRT, and can also immediately see the temperature and thermal image of the measured object. Through the convenient connection and communication capabilities between the VPD-1xx-IRT temperature data concentrator and the Ethernet network, users can quickly establish a remote monitoring system and conduct centralized management of temperature data.
Applications
Please refer to the TouchPAD Applications for more detailed product application case.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 64 MB SDRAM/64 MB Flash |
| Real Time Clock | Yes |
| Display | |
|---|---|
| Type | LCD 7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
|---|---|
| Status | 2 LED |
| Relay Output | |
|---|---|
| Channels | 9 |
| Type | Signal Relay (Form A) |
| Contact Material | Silver Nickel, Gold-covered |
| Contact Rating | 2 A @ 30 VDC<br>0.24 A @ 220 VDC<br>0.25 A @ 250 VAC |
| Operate Time | 3 ms (typical) |
| Release Time | 4 ms (typical) |
| Electrical Endurance | 2 x 10^5 ops. |
| Mechanical Endurance | 10^8 ops. |
| Power on Value | Yes |
| Safe Value | Yes |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | Yes |
| Rubber Keypad | No |
| Reset Button | Yes |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 1, 10/100 Base-TX |
| Protocol | Modbus TCP |
| COM Ports | |
|---|---|
| Ports | 2 x RS-232 (3-pin) or RS-485 (including Self-Tuner) ; 2500 VDC isolated |
| Protocol | Modbus RTU |
| USB | |
|---|---|
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
|---|---|
| Consumption | 3.6 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 217 mm x 153 mm x 33 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: NEMA 4 /IP65 |
| Environment | |
|---|---|
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
