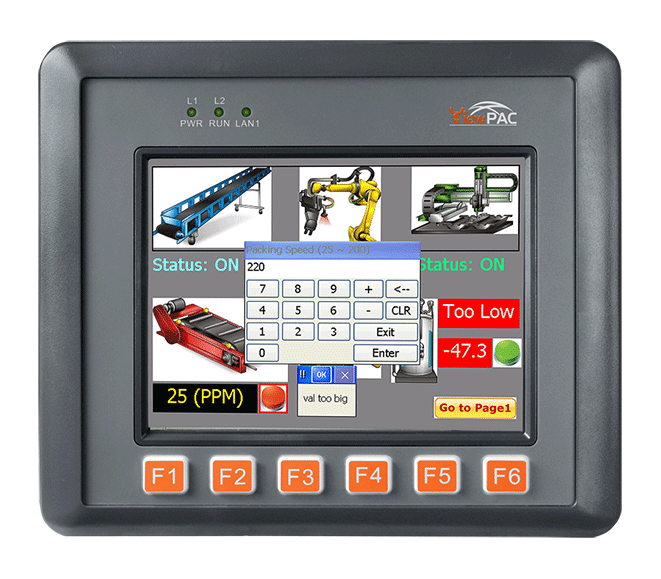

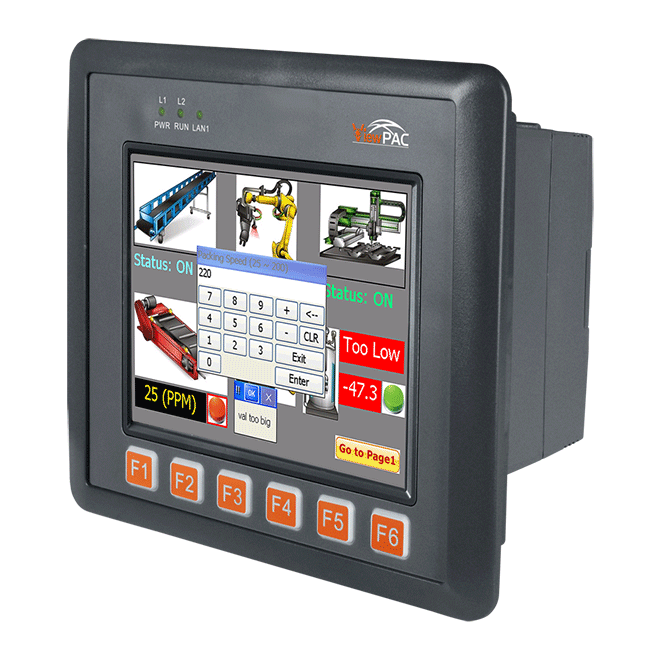

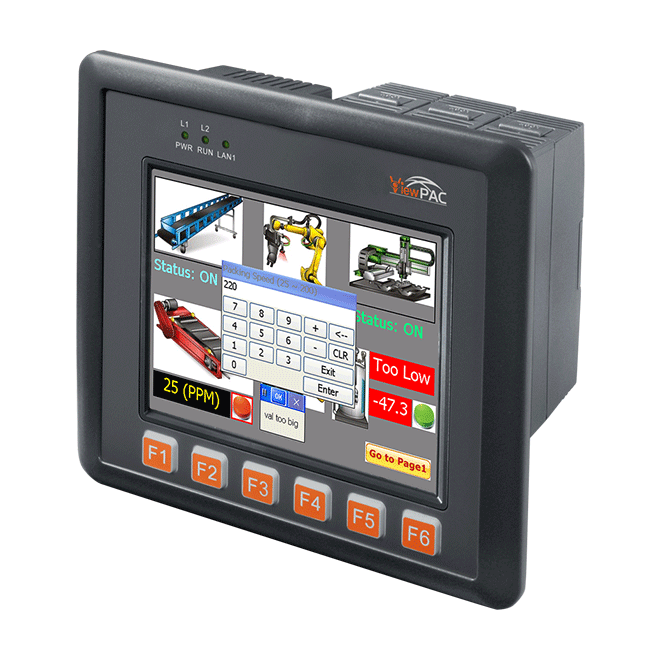

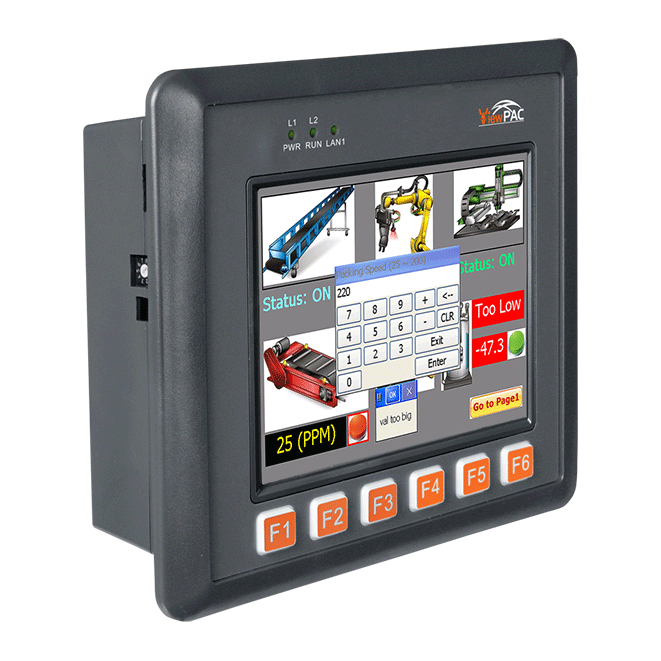

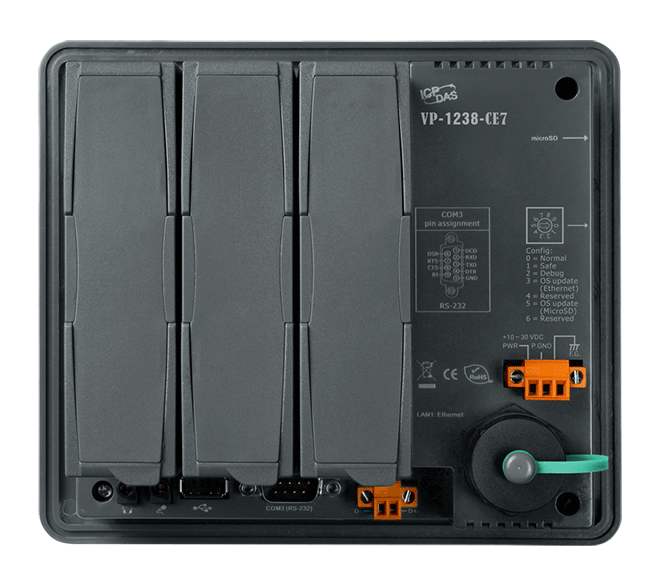

VP-1238-CE7

5.7" Win-GRAF Based ViewPAC with Cortex-A8 CPU, WinCE 7.0, and 3 I/O Slots

Features

• 5.7" TFT LCD
• Cortex-A8 CPU (32-bit & 1 GHz)
• Windows CE.NET 7.0 Inside
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• 3 Slots for High Profile I/O Modules
• IP65 Compliant Front Panel
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI

Introduction

The Win-GRAF ViewPAC with I/O slot Series (VP-1238-CE7, VP-4238-CE7, VP-6238-CE7) is the new generation WinCE 7.0 based Win-GRAF PAC (Programmable Automation Controller) from ICP DAS.

Each PAC is equipped with a Cortex-A8 CPU (32-bit & 1 GHz) running a Windows CE 7.0 operating system, a variety of input/output ports (USB, Ethernet, RS-232/485), 3 I/O slots that can be used to integrate high-performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series), and a 5.7”/10.4”/15” TFT LCD with a rubber keypad.

The Win-GRAF ViewPAC are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control, and also provide a free HMI software "eLogger" to edit the HMI by graphical drag and drop the HMI objects, or support M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications, and all can exchange data with Win-GRAF applications. So the application's design is more convenient and practical.

Applications

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES VP-1238-CE7 CR	DESCRIPTION5.7" Win-GRAF Based ViewPAC with Cortex-A8 CPU, WinCE 7.0, and 3 I/O Slots (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Software
OS	Windows CE 7.0
Protocol	• OPC UA Server • eLogger HMI • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON and User-Defined Communication Protocols
Development	Embedded Win-GRAF SoftLogic (IEC 61131-3)
Service	FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5
Function	• Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log
Framework Support	.Net Compact Framework 3.5
Multilanguage Support	English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK	Dll for VC, Dll for Visual Studio.Net 2008

Main Unit
CPU	Cortex-A8, 1.0 GHz
64-bit Hardware Serial Number	Yes
System Memory	512 MB SDRAM, 256 MB Flash
Storage	4 GB microSD card (up to 32 GB)
Non-Volatile Memory	128 KB MRAM, 16 KB EEPROM
Real Time Clock	Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer	Dual Watchdog Timer

Display
Type	LCD
Size	5.7" (4:3)
Backlight Life	20,000 hours
Brightness	400 cd/m2
Resolution	640 x 480
Touch Panel	4-wire, resistive type
Contrast Ratio	500:1

LED Indicators
Status	1 x System, 1 x Power, 1 x Ethernet, 3 x Programmable

I/O Expansion
I/O Type	I-8K, I-87K series
Slots	3

HMI
Buzzer	Yes
Rotary Switch	Yes, (0 ~ 9)
Rubber Keypad	6 Keys

Audio
Jack	Microphone-In and Earphone-Out

Ethernet
Ports	1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)

COM Ports
Ports	1 x RS-232, 1 x RS-485 (2500 VDC Isolated)

USB
Ports	1 x USB 2.0

Power
Input Range	+10 ~ 30 VDC (1 kV Isolated )
Consumption	0.3 A @ 24 VDC

Mechanical
Casing	Plastic
Dimensions (mm)	182 x 158 x 125 (W x L x H)
Panel Cut-out (mm)	153 x 136, ±1 (W x H)
Installation	Panel mounting
Ingress Protection Rating	Front panel: NEMA 4/IP65
Weight	1.5 Kg
