C Language Based ViewPAC with MiniOS7
Features
• 80186, 80 MHz CPU
• MiniOS7 Embedded Operating System (DOS-like)
• 64-bit Hardware Serial Number for Software Protection
• C language Based Software Development Toolkit
• Modbus Library Provided
• Hardware Diagnostic Functions
• Load Files via RS-232 or Ethernet
• IP65 Compliant Front Panel
• STN LCD with Chinese Font
• Rubber Keypad with 24 Keys
• One 10/100M Ethernet Port
• Operating Temperature: -15 ~ +55 °C
Introduction

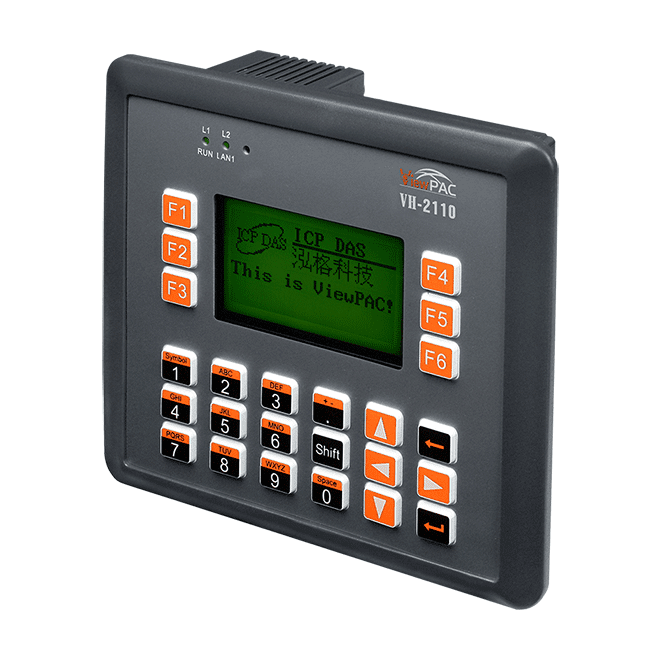

ViewPAC combines iPAC, graphic display and keypad in one unit. It equips a 80186 CPU (16-bit and 80 MHz) running a MiniOS7 operating system, several communication interface (Ethernet, RS-232/485), STN LCD and a rubber keypad. Its operating system, MiniOS7, can boot up in a very short time (0.4~0.8 seconds). It has a built-in hardware diagnostic function. Compared with traditional HMI + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of HMIs and PLCs.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
|---|---|
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB SDRAM, 512 KB Dual battery backup SRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
|---|---|
| Type | STN, 128x64 Dot Matrix LCD |
| Text Font | English + Traditional Chinese |
| LED Indicators | |
|---|---|
| Status | 1 x System, 1 x Ethernet/2 x Programmable |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rubber Keypad | 24 |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Base-TX |

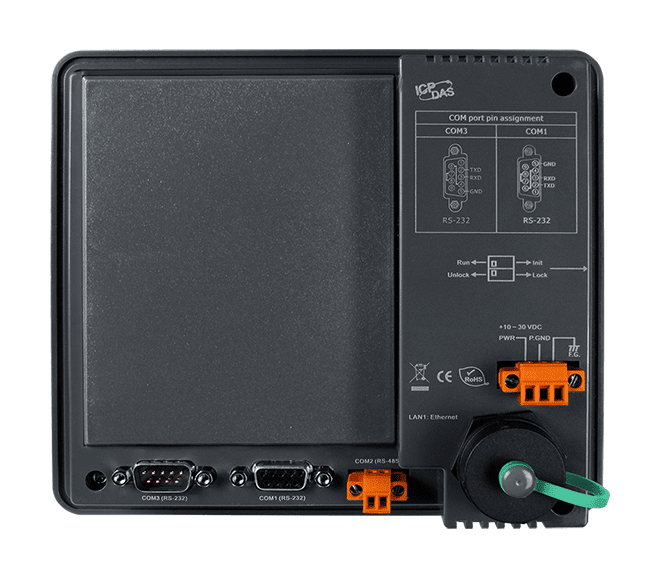

| COM Ports | |
|---|---|
| Ports | 2 x RS-232, 1 x RS-485 |
| Power | |
|---|---|
| Input Range | +12 ~ 48 VDC |
| Consumption | 3.6 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 182 x 158 x 125 (W x L x H) |
| Installation | Wall mounting |
| Ingress Protection Rating | Front panel: IP65 |
| Environment | |
|---|---|
| Operating Temperature | -15 ~ +55 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 5 ~ 90 % RH, Non-condensing |
