TPM-4100
10.4" 800 x 600 Aluminum Resistive Touch Panel with RS-232 or USB, and Power Supply
Features
• 10.4" LCD supports 800 x 600 resolution
• Resistive Touch Panel
• Full-function OSD control
• Driver Support: Windows /Windows IoT/WES/WinCE/Linux
• LED backlight technology
• Aluminum Casing
• IP65 Compliant Front Panel
• Wide operating temperature: -20 ~ +70°C
• Resistive Touch Panel
• Full-function OSD control
• Driver Support: Windows /Windows IoT/WES/WinCE/Linux
• LED backlight technology
• Aluminum Casing
• IP65 Compliant Front Panel
• Wide operating temperature: -20 ~ +70°C
Introduction

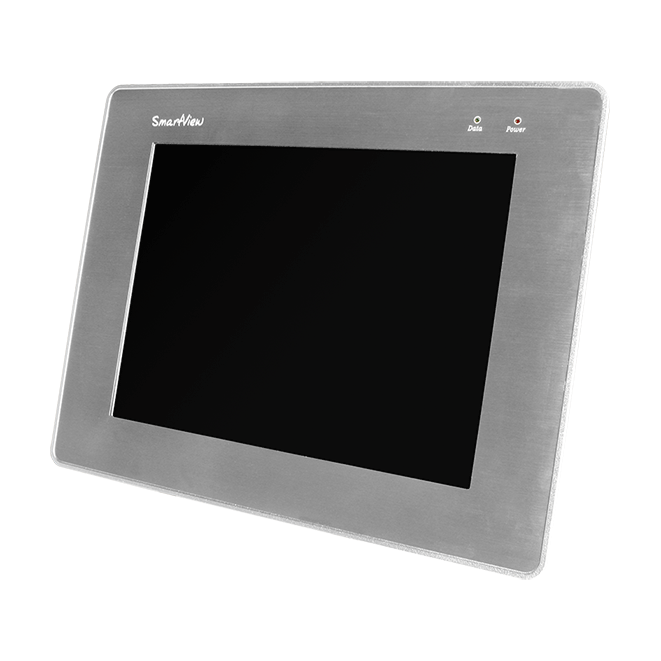

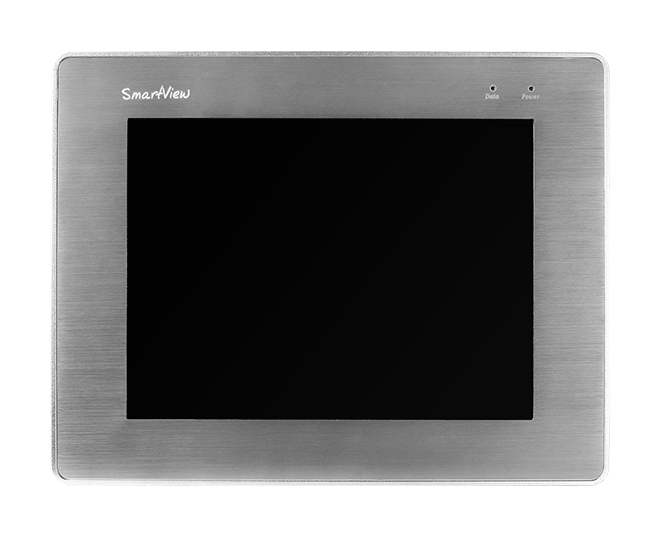

The TPM-4100 Panel Mount Monitor adopts a standard 10.4" TFT LCD screen with rugged aluminum front bezel and supports 800 x 600 resolution, and -20 ~ +70°C operating temperature. The TPM-4100 is also guaranteed to work with ICP DAS PAC control system, such as WP-8000 series, LX-8000 series and XP-9000 series.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| OS Support | Windows 10/11/ 8/7/ XP (32/64-bit), Windows 10 IoT Enterprise, Windows Embedded Standard 7 Windows Embedded Compact (WinCE 5.0/6.0/7.0), Linux (32/64-bit) |
| Display | |
|---|---|
| Size | 10.4" |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 4-wire, analog resistive; light transmission: 80% |
| Contrast Ratio | 500：1 |
| LED Indicators | |
|---|---|
| Status | 1 x Power, 1 x Display |
| HMI | |
|---|---|
| Power Switch | Yes |
| OSD Control | Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (Combo) |
| USB | |
|---|---|
| Ports | 1 |
| Power | |
|---|---|
| Input Range | +12 ~ 48 VDC |
| Consumption | 8.5 W |
| Mechanical | |
|---|---|
| Casing | Aluminum |
| Dimensions (mm) | 293 x 231 x 53 (W x L x H) |
| Installation | Panel Mounting |
| Ingress Protection Rating | Front panel: IP65 |
| Weight | 1785 g |
| Environment | |
|---|---|
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specification Memo
RS-232 and USB cannot be used simultaneously.
