TP-7170

17" 1280 x 1024 Resistive Touch Panel with RS-232 or USB, and Power Supply

Features

• 17" LCD supports 1280 x 1024 resolution
• Resistive Touch Panel
• Full-function OSD control
• Driver Support: Windows /Windows IoT/WES/WinCE/Linux
• LED backlight technology
• NEMA 4/IP65 Compliant Front Panel
• Wide operating temperature: -20 ~ +70°C

Introduction

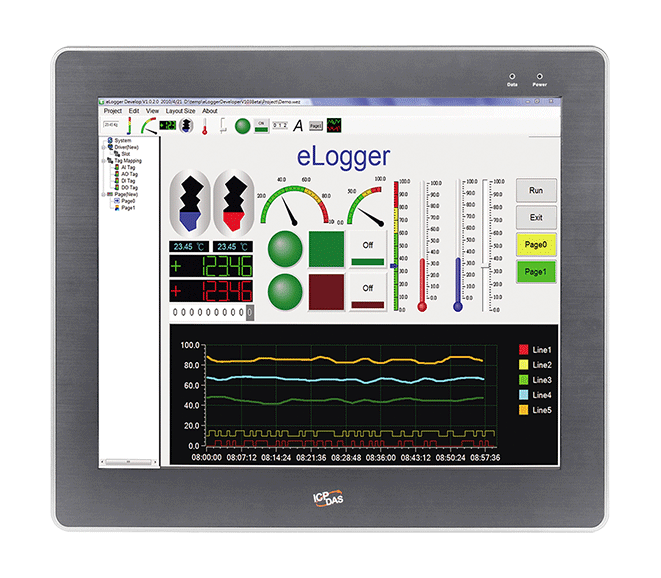

The TP-7170 Panel Mount Monitor adopts a standard 17" TFT LCD screen with rugged aluminum front bezel and supports 1280 x 1024 resolution, and -20 ~ 70°C operating temperature. The TP-7170 is also guaranteed to work with ICP DAS PAC control system, such as WP8000 series, LinPAC series and XP-9000 series.

Applications

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES TP-7170 CR	DESCRIPTION17" 1280 x 1024 Resistive Touch Panel with RS-232 or USB, and Power Supply (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Software
OS Support	Windows 10/11/ 8/7/ XP (32/64-bit), Windows 10 IoT Enterprise, Windows Embedded Standard 7 Windows Embedded Compact (WinCE 5.0/6.0/7.0), Linux (32/64-bit)

Display
Size	17"
Backlight Life	50,000 hours
Brightness	350 cd/m2
Resolution	1280 x 1024
Touch Panel	5-wire, analog resistive; light transmission: 80%
Contrast Ratio	500：1

LED Indicators
Status	1 x Power, 1 x Display

HMI
Power Switch	Yes
OSD Control	Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness

COM Ports
Ports	1 x RS-232 (Combo)

USB
Ports	1

Power
Input Range	+12 ~ 48 VDC
Consumption	22.0 W

Mechanical
Casing	Plastic
Dimensions (mm)	413 x 359 x 70 (W x L x H)
Installation	Panel Mounting, VESA Mounting (75 mm x 75 mm, 100 mm x 100 mm)
Ingress Protection Rating	Front panel: IP65
Weight	3550 g
