TP-4100

10.4" 800 x 600 Resistive Touch Panel with RS-232 or USB, and Power Supply

Features

• 10.4" LCD supports 800 x 600 resolution
• Resistive Touch Panel
• Full-function OSD control
• Driver Support: Windows 2k/XP/Vista/7/8/10/WES/WinCE 5.0/6.0/7.0/Linux
• LED backlight technology
• IP65 Compliant Front Panel
• Wide operating temperature: -20 ~ +70°C

Introduction

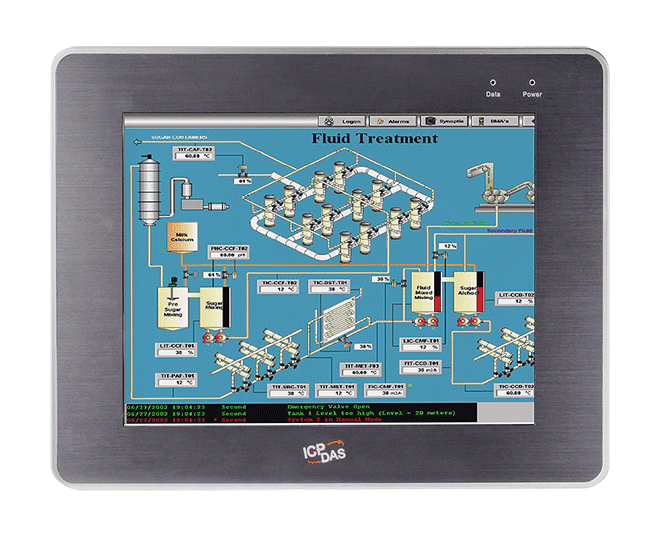

The TP-4100 Panel Mount Monitor adopts a standard 10.4" TFT LCD screen with rugged aluminum front bezel and supports 800 x 600 resolution, and -20 ~ 70°C operating temperature. The TP-4100 is also guaranteed to work with ICP DAS PAC control system, such as WP-8000 series, LinPAC series and XP-9000 series.

Applications

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES TP-4100 CR	DESCRIPTION10.4" 800 x 600 Resistive Touch Panel with RS-232 or USB, and Power Supply (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Display
Size	10.4"
Backlight Life	50,000 hours
Brightness	400 cd/m2
Resolution	800 x 600
Touch Panel	5-wire, analog resistive; light transmission: 80%
Contrast Ratio	500：1

LED Indicators
Status	1 x Power, 1 x Display

HMI
Power Switch	Yes
OSD Control	Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness

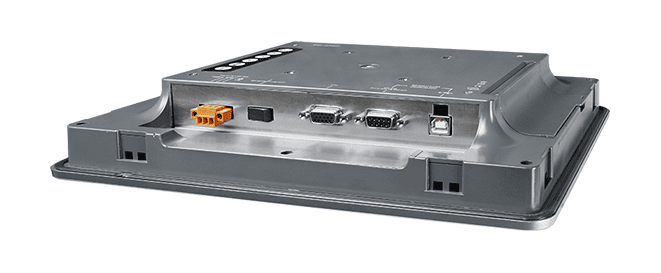

COM Ports
Ports	1 x RS-232 (Combo)

USB
Ports	1

Power
Input Range	+12 ~ 48 VDC
Consumption	8.5 W

Mechanical
Casing	Plastic
Dimensions (mm)	291 x 229 x 54 (W x L x H)
Installation	Panel Mounting, VESA Mounting (75 x 75)
Ingress Protection Rating	Front panel: IP65
Weight	1715 g
