TCD-104/S400
4-ch K-type Thermocouple
Features

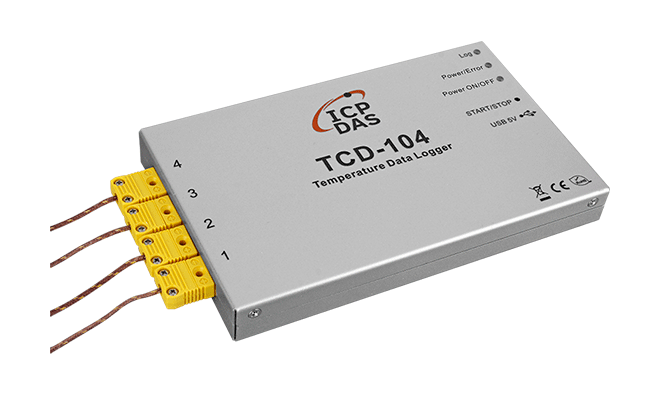

- 4-channel K-type thermocouple (± 0.5℃ Accuracy)
- Thermocouple length: 50 cm
- Sampling Rate: 50 ms to 60000 seconds
- Max. recording for each channel: 450,000
- Traceable temperature data
- Easy-to-use software interface
- Powered by 4x AAA batteries (60 hours @ 50 ms sampling rate)

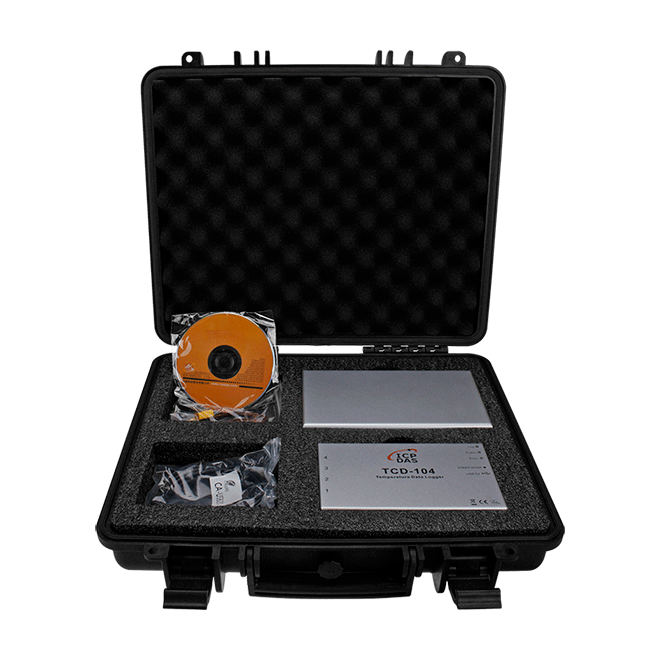

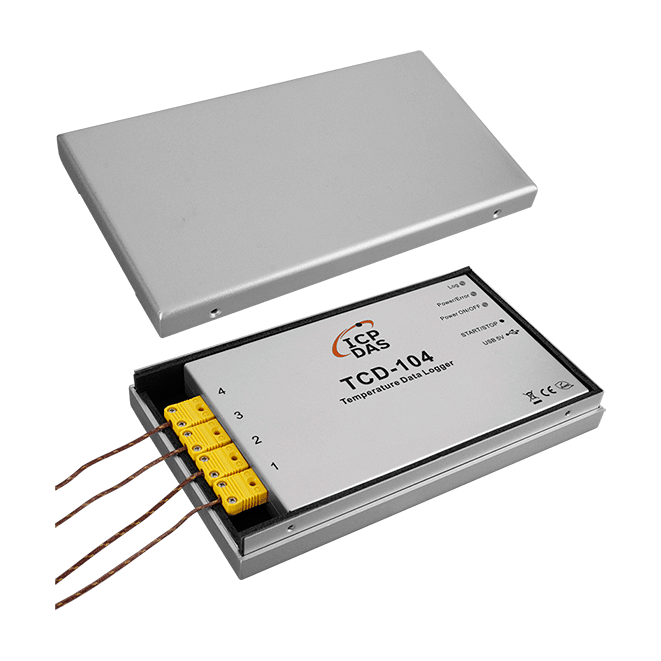

- 400℃ operating temperature with thermal insulation box
Introduction
TCD-104 temperature measurement module can provide high-precision temperature measuring capability with standard K-type thermocouple. Besides, TCD-104 has built-in over-temperature protection, intelligent temperature data logging capability, automatic analysis result output (highest Tin temperature, tinning time, heating rate, etc.).
Applications
SMD assembly manufacturing, PC board manufacturing, footware manufacturing, food industry, pharmaceutical industry and any temperature measurement required industries.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products

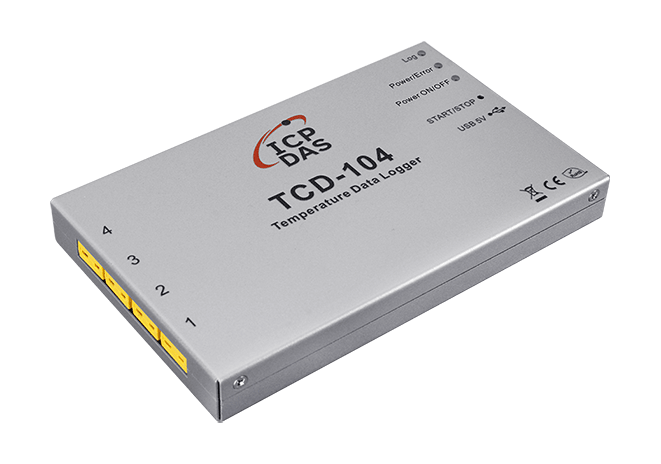

| LED Indicators | |
|---|---|
| Status | Log : Yellow for data logger Power : Green for normal operation Error : Red for error indicator |
| System | |
|---|---|
| Data Logger | 450,000 records |
| Temperature Measurement | |
|---|---|
| Sensor Type | K-Type |
| Channels | 4 |
| Range | -270°C to 1372°C (-454°F to 2502°F) |
| Resolution | 0.1ºC |
| Accuracy | ±0.5ºC |

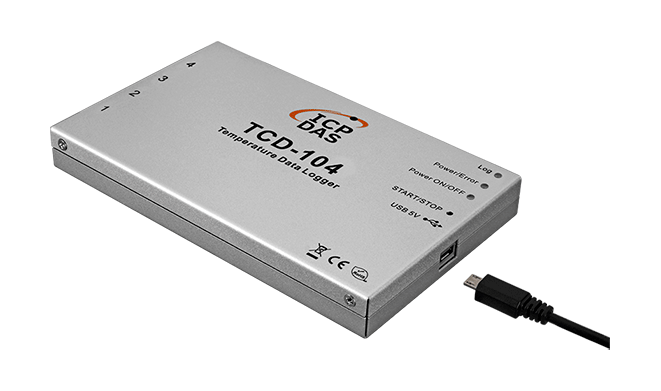

| USB | |
|---|---|
| Specification | USB 2.0 Full-Speed |
| Power | |
|---|---|
| Consumption | 0.06 W Max. |
| Battery Usage Life | Operating for more than 60 hours with heavy-duty AAA battery x 4 |
| Mechanical | |
|---|---|
| Dimensions (mm) | 104 x 169 x 21 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -40 to +400°C |
| Humidity | 10 to 95% RH, Non-condensing |
