3G DI Alarm Controller to SMS (Asia Only)
Features
- Support GSM 850/900/1800/1900 MHz Quad-band frequency.
- Support WCDMA 850/900/1900/2100 MHz Quad-band frequency.
- Identify ASCII or Unicode SMS Automatically.
- Support max. 140 ASCII Characters.
- Support max. 70 Unicode Characters.
- Built-in ASCII Commands and SMS tunnel Communication Modes.
- Max. 10 Default Phone Numbers.
- Built-in Watch-dog Function.
- Industrial Design with Surge Protection.
- Support SMS setting and control.
- 10 DI (6 Counter), 2 DO, 2 RS-232 port.
- Digital input support NC(normal close)/NO(normal open)/Counter modes.
- Send alarm SMS by DI trigger or exceed Counter preset limits.
- Support simple command to send SMS via RS-232.
- Support DC +10 VDC ~ +30 VDC Power Input.
- Supports 3.7 V Li-ion Battery Backup.
- DIN Rail design.
Introduction
SMS-530 is an intelligent 3G SMS controller for industry applications with the simple commands and SMS tunnel function, and power can be input by the external power or Li-Battery. It supports UNICODE or 7 bit format for users to implement sending SMS messages with various languages. Applying SMS-530, the SMS report can be sent by defined time or DI/counter event trigger. This can be a remote control and alarm system allowing you to use your mobile phone to monitor and control your business from any location. Its alarm facilities provide a flexible way to distribute critical alarm information to any number of mobile phone users. SMS-530 can monitor total 10 digital inputs (6 counters). The user can also interrogate the status of I/O through SMS messages. The SMS-530 also has 2 Digital output which can be activated via DI trigger or SMS to control the lamps, pumps, heaters etc.
Applications
- Signal Alarm and SMS communication.

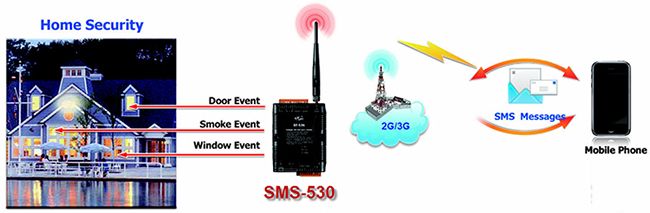

- Home security.
- Remote maintenance.

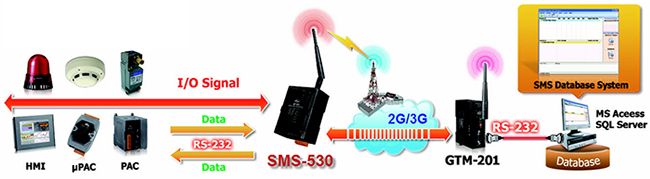

- SMS Tunnel Communication.

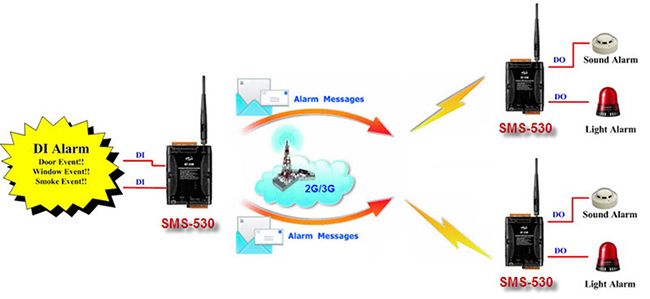

- DI Alarm and SMS communication.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| Service | SMS Alarm |
| CPU Module | |
|---|---|
| CPU | 32 bit CPU |
| Flash | 512 Kbytes |
| SRAM | 32 Kbytes |
| Real Time Clock | Gives time(sec, min, hour) & date, leap year compensation from 1980 to 2079 |
| Watchdog Timer | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x EXT 1 x 3G 1 x STA |
| 2G System | |
|---|---|
| Frequency Band | 850/900/1800/1900 MHz |
| Coding Schemes | CS 1, CS2, CS3, CS4 |
| GPRS Multi-slot | GPRS class 12; GPRS station class B |
| Power Class | Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz) |
| SMS Format | Sending: UCS2 Receiving: UCS2/7bits |
| 3G System | |
|---|---|
| Frequency Band | WCDMA 850/900/1900/2100 MHz |
| Power Class | Class 3 (250mW @ WCDMA/HSPA) |
| Digital Input | |
|---|---|
| Channels | 10 Channel (6 Counter 5~40Hz + 4 Channel Digital input powered by external power or Li-battery) |
| Type | Wet Contact, 30 VAC Max. |
| ON Voltage Level | +3.5~24VDC |
| OFF Voltage Level | +1V Max. |
| Digital Output | |
|---|---|
| Channels | 2 Channel Open collector output (100mA@24VDC) |
| Type | Open-Collector |
| Sink/Source (NPN/PNP) | NPN |
| Load Voltage | +24V Max.AB38 |
| Load Current | 100mA Max. |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (Communication with other devices) 1 x RS-232(Configuration) |
| Power | |
|---|---|
| Consumption | Idle: 25 mA @ 24 VDC; Data Link: 44 mA @ 24 VDC; Peak: 45 mA @ 24 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 91 x 132 x 52 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25℃ to 55℃ |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5~95% RH, non-condensing |
| Support Software | |||
|---|---|---|---|
| SMS DBS | SMS Monitor/Database System Software Solution for GT-53x series | ||
