SG-3227
2-channel IEPE Input Signal Conditioner
Features
- Dual-channel IEPE input
- Independent channel configuration via DIP switches
- Selectable excitation current: 2 mA / 4 mA / 6 mA / 10 mA
- Built-in signal amplification: ×1 / ×10 / ×100
- LED indicators for sensor status: Normal, Open, or Short circuit
Introduction

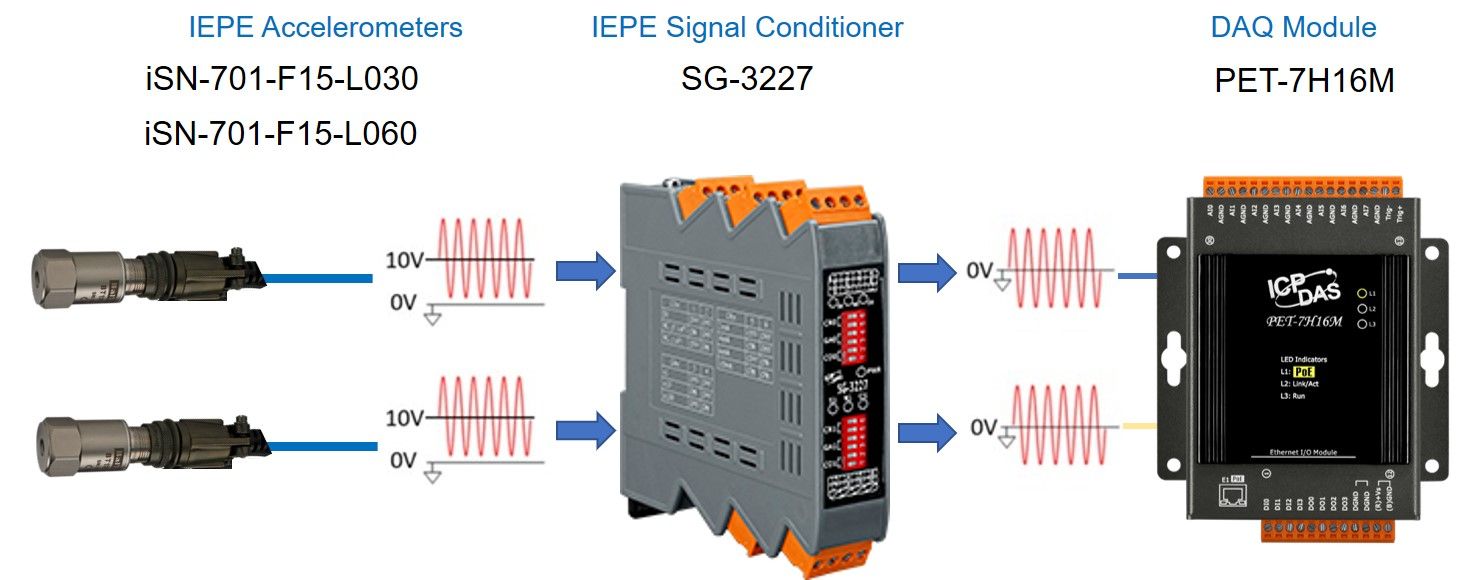

The SG-3227 is a 2-channel signal conditioning module designed for IEPE accelerometers. It features two independently configurable channels via DIP switch banks, supporting flexible setup for various sensor types. Selectable excitation currents (2 mA, 4 mA, 6 mA, or 10 mA) ensure broad sensor compatibility, while a built-in amplifier offers adjustable gain settings (×1, ×10, ×100) to suit different signal ranges. LED indicators provide real-time sensor diagnostics—including normal operation, open circuit, and short circuit status—minimizing wiring errors and simplifying field troubleshooting.
Applications
- Vibration Measurement
- Remote Diagnosis
- Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal |
| Surge (IEC 61000-4-5) | ±1 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 as Power Indicator Yellow : Sensor Open Green : Sensor Normal Red : Sensor Short |
| IEPE | |
|---|---|
| Channels | 2 |
| Sensor Type | Vibration, Temperature(V3 version introduces support) |
| Gain | x1/x10/x100 for AC Coupling |
| Excitation Voltage | 30 VDC* 28 VDC** |
| Excitation Current | 2 mA/4 mA/6 mA/10 mA |
| Cut-off Frequency | •Upper: ‣x1, x10 Gain: 80 kHz ‣x100 Gain: 50 kHz •Lower: ‣AC Coupling (0.1uF): 1.6 Hz ‣AC Coupling (1uF): 0.2 Hz |
| Analog Output | |
|---|---|
| Channels | 2 |
| Type | Voltage |
| Range | ±10 V |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +18 ~ +30 VDC |
| Consumption | 3 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 25 mm x 120 mm x 117 mm (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specification Memo
(*):Non-V3 version
(**): V3 version
(**): V3 version
